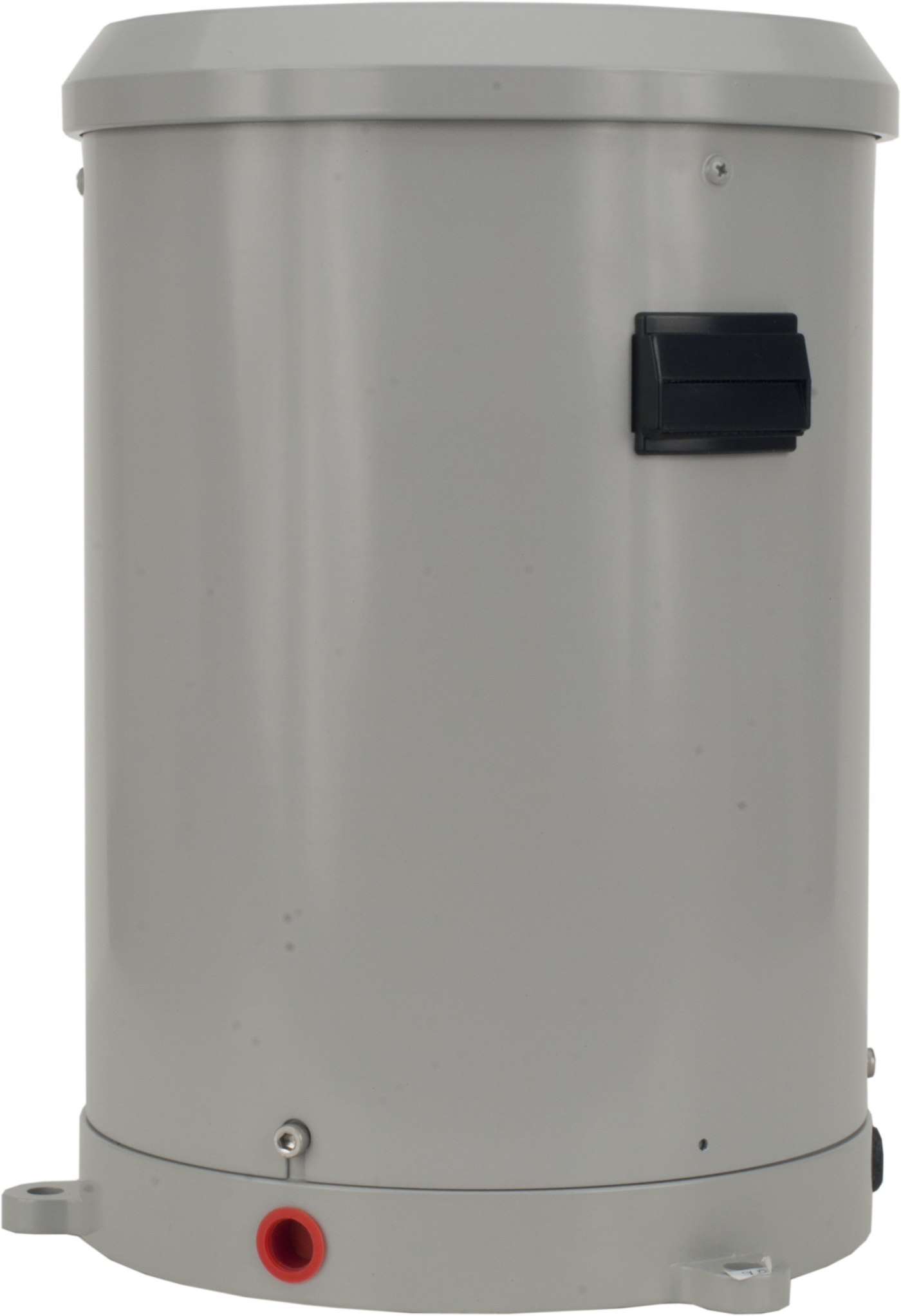

CS700
CS700
OrderableConfigurableRain Gage with 8 in. Orifice
High-precision, siphoned rain gage with 8 in. orifice. Calibrated to 0.01 in./tip.
Pricing
Configuration
Sign in for option pricing- w/10m (33ft) per Sensor w/Ferrules on WiresCS700-10m
- w/20m (66ft) per Sensor w/Ferrules on WiresCS700-20m
- w/30m (100ft) per Sensor w/Ferrules on WiresCS700-30m
Select a configuration to add to your quote
- Model:
- CS700
- Item Number:
- 45160
- Warranty:
- 1 year
- Lead time:
- 14 days
Overview
The CS700, manufactured by HS Hyquest Solutions, is a high-end tipping bucket rain gage with an 8 in. orifice and a heavy-duty cast aluminum base. It measures precipitation in 0.01 in. increments. The CS700 is ideal for locations where intense rainfall events may occur. This tipping bucket is compatible with all Campbell Scientific data loggers and is used in environmental monitoring applications.
Key Advantages
Ideal for high-intensity precipitation
Technical Description
The CS700 funnels precipitation into a bucket mechanism that tips when filled to its calibrated level. Each tip is marked by a dual reed switch closure that is recorded by a data logger pulse count channel. After measurement, the water drains through two orifices (accepts 12 mm tubing) in the base, allowing the measured water to be collected in a separate container.
The CS700 contains an internal siphon mechanism that causes rain to flow at a steady rate to the tipping bucket mechanism (regardless of intensity). The siphon allows the sensor to make accurate measurements over a range of 0 to 50 cm per hour.
Benefits
- More accurate measurement of high-intensity precipitation
- Extra-heavy metal construction for durability and long life
- High precision—tips at 0.01-in. increments
- Compatible with most Campbell Scientific data loggers
- Accuracy is ±3 percent at high precipitation rates of 500 mm/hr
Specifications
- Sensor Type
- Tipping bucket with siphon and dual reed switch
- Measurement Uncertainty
- ±2% @ < 250 mm/h
(9.8 in./h)
- Measurement Uncertainty
- ±3% @ 250 to 500 mm/h
(9.8 to 19.7 in./h)
- Measurement Uncertainty
- 700 mm/h
(27.6 in./h) maximum rate per hour
- Rainfall per Tip
- 0.254 mm
(0.01 in.)
- Measurement Range
- 0 to 700 mm/h
(0 to 27.6 in./h)
- Operating Temperature Range
- 0° to 70°C
- Humidity Range
- 0 to 100%
- Cable Type
- Two-conductor shielded
- Drain Tube Size
- Both filters accept 12 mm (0.47 in.) ID tubing.
- Orifice Diameter
- 20 cm
(7.9 in.)
- Height
- 34.2 cm
(13.5 in.)
- Weight
- 3.3 kg
(7.4 lb) with 7.62-m (25-ft) cable
