RetiredConfigurableWater Content Reflectometer for CR200(X)-Series and CR300-Series
Pricing
- Model:
- CS625
- Item Number:
- 15509
- Warranty:
- 1 year
- Lead time:
- 14 days
Overview
The CS625 measures the volumetric water content from 0% to saturation. It is similar to our CS616 but is designed specifically for CR200(X) and CR300-series dataloggers. This reflectometer has a 0 to 3.3 V square wave frequency output that our CR300-series and CR200(X)-series dataloggers can measure.
Key Advantages
Designed for long-term monitoring
Technical Description

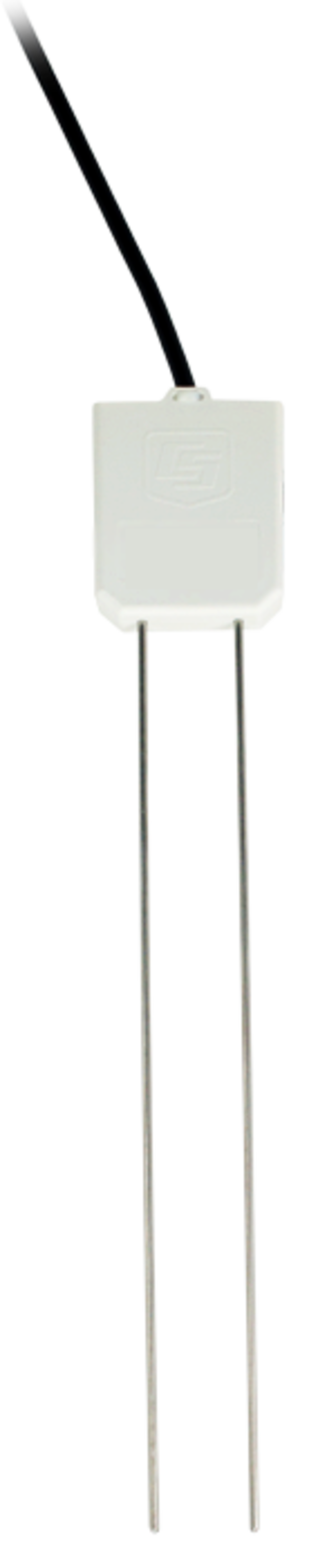

The CS625 consists of two 30-cm-long stainless steel rods connected to a printed circuit board. The circuit board is encapsulated in epoxy, and a shielded four-conductor cable is connected to the circuit board to supply power, enable probe, and monitor the output.
The CS625 measures the volumetric water content of porous media (such as soil) using the time-domain measurement method; a reflectometer (cable tester) such as the TDR100 is not required. This method consists of the CS625 generating an electromagnetic pulse. The elapsed travel time and pulse reflection are then measured and used to calculate soil volumetric water content.
Response Characteristics
The signal propagating along the parallel rods of the CS625 is attenuated by free ions in the soil solution and conductive constituents of the soil mineral fraction. In most applications, the attenuation is not enough to affect the CS625 response to changing water content, and the response is well described by the standard calibration. However, in soil with relatively high soil electrical conductivity levels, compacted soils, or soils with high clay content, the calibration should be adjusted for the specific medium. Guidance for making these adjustments is provided in the operating manual.
Benefits
- High accuracy and high precision
- Fast response time
- Designed for long-term unattended water content monitoring
- Probe rods can be inserted from the surface or buried at any orientation to the surface.
Specifications
- Measurements Made
- Volumetric water content of porous media (such as soil)
- Water Content Accuracy
- ±2.5% VWC
(using standard calibration with bulk EC of ≤ 0.5 dS m-1, bulk density of ≤ 1.55 g cm-3, and measurement range of 0% to 50% VWC)
- Required Equipment
- Measurement system
- Soil Suitability
- Long rods and lower frequency are well-suited for soft soil with low electrical conductivity (< 2 dS/m).
- Rods
- Not replaceable
- Sensors
- Not interchangeable
- Operating Temperature Range
- 0° to 70°C
- Probe-to-Probe Variability
- ±0.5% VWC in dry soil, ±1.5% VWC in typical saturated soil
- Precision
- 0.1% VWC
- Resolution
- 0.1% VWC
- Output
- 0 to 3.3 V square wave
(with frequency dependent on water content)
- Current Drain
- 65 mA @ 12 Vdc
(when enabled)
- Current Drain
- 45 μA
(quiescent typical)
- Power Supply Voltage
- 5 Vdc minimum; 18 Vdc maximum
- Enable Voltage
- 4 Vdc minimum; 18 Vdc maximum
- Electromagnetic
- CE compliant
(Meets EN61326 requirements for protection against electrostatic discharge.)
- Rod Spacing
- 32 mm
(1.3 in.)
- Rod Diameter
- 3.2 mm
(0.13 in.)
- Rod Length
- 300 mm
(11.8 in.)
- Probe Head Dimensions
- 85 x 63 x 18 mm
(3.3 x 2.5 x 0.7 in.)
- Cable Weight
- 35 g per m
(0.38 oz per ft)
- Weight
- 280 g
(9.9 oz) without cable
