CS616-LC
CS616-LC
OrderableConfigurableWater Content Reflectometer for ET or MetData1
Pricing
Configuration
Sign in for option pricing- w/3m per Sensor -PF w/ Ferrules on WiresCS616LC-3m
- w/5m per Sensor -PF w/ Ferrules on WiresCS616LC-5m
- w/10m per Sensor -PF w/ Ferrules on WiresCS616LC-10m
- w/20m per Sensor -PF w/ Ferrules on WiresCS616LC-20m
- w/30m per Sensor -PF w/ Ferrules on WiresCS616LC-30m
Select a configuration to add to your quote
- Model:
- CS616-LC
- Item Number:
- 45052
- Warranty:
- 1 year
- Lead time:
- 14 days
Overview

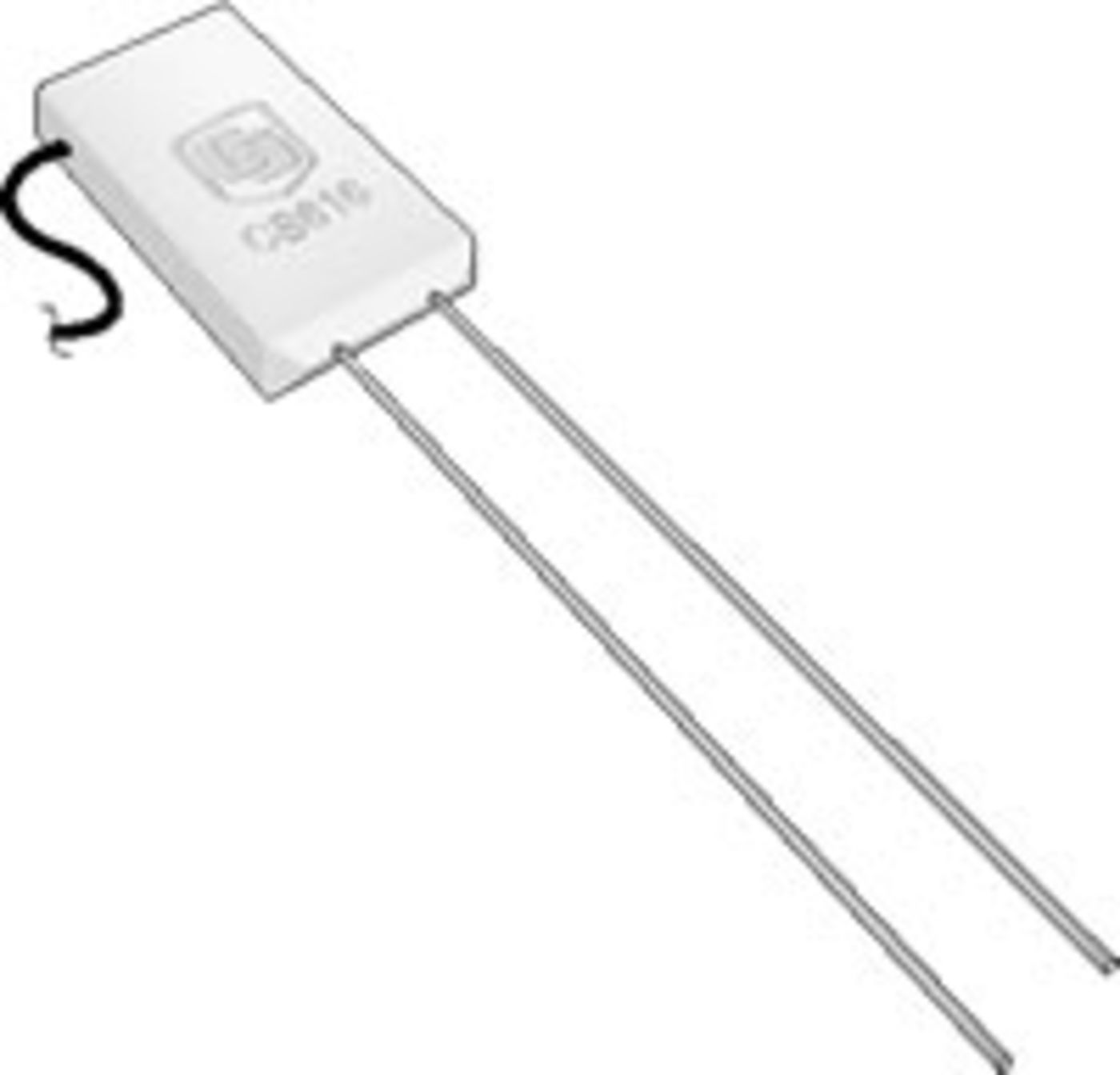

The CS616-LC is a version of the CS616 that has a cable terminated in a connector rather than the standard pigtails. The connector can be attached to the ET107, ET106, or MetData1 weather stations.
The CS616-LC measures the volumetric water content from 0% to saturation. It uses time-domain measurement methods, but no reflectometer (cable tester) such as the TDR100 is required. The probe rods can be inserted from the surface or the probe can be buried at any orientation to the surface. It is rugged and designed for long-term, unattended use.
Key Advantages
Technical Description
The CS616-LC is a version of the CS616 that has a cable terminated in a connector that attaches to the ET107, ET106, or MetData1 weather stations.
The CS616-LC measures the volumetric water content from 0% to saturation. It uses time-domain measurement methods. The probe rods can be inserted from the surface or the probe can be buried at any orientation to the surface. It is rugged, and is designed for long-term, unattended use.
Benefits
- Compatible with most Campbell Scientific dataloggers
- High accuracy and high precision
- Fast response time
- Fast, easy connection to weather stations
Specifications
- Probe-to-Probe Variability
- ±0.5% VWC
(in dry soil)
- Probe-to-Probe Variability
- ±1.5% VWC
(in typical saturated soil)
- Output
- ±0.7 V square wave with frequency dependent on water content
- Precision
- 0.05% VWC
- Accuracy
- ±2.5% VWC
using standard calibration with bulk electrical conductivity of ≤ 0.5 dS m-1, bulk density of ≤ 1.55 g cm-3, and measurement range of 0 to 50% VWC
- Current Drain
- 65 mA @ 12 Vdc
(when enabled)
- Current Drain
- 45 μA
(quiescent typical)
- Power Supply Voltage
- 5 Vdc
(minimum)
- Power Supply Voltage
- 18 Vdc
(maximum)
- Enable Voltage
- 4 Vdc
(minimum)
- Enable Voltage
- 18 Vdc
(maximum)
- Resolution
- 0.1% VWC
- Electromagnetic
- CE compliant
- Electromagnetic
- Meets EN61326 requirements for protection against electrostatic discharge.
- Rod Spacing
- 32 mm
(1.3 in.)
- Rod Diameter
- 3.2 mm
(0.13 in.)
- Rod Length
- 300 mm
(11.8 in.)
- Probe Head Dimensions
- 85 x 63 x 18 mm
(3.3 x 2.5 x 0.7 in.)
- Weight
- 280 g
(9.9 oz) without cable
- Cable Weight
- 35 g per m
(0.38 oz per ft)
