CS500-L
Temperature and Relative Humidity Probe
CS500-L
End of lifeTemperature and Relative Humidity Probe
Pricing
- Model:
- CS500-L
- Item Number:
- CS500-L
- Lead time:
- 21 days
Overview

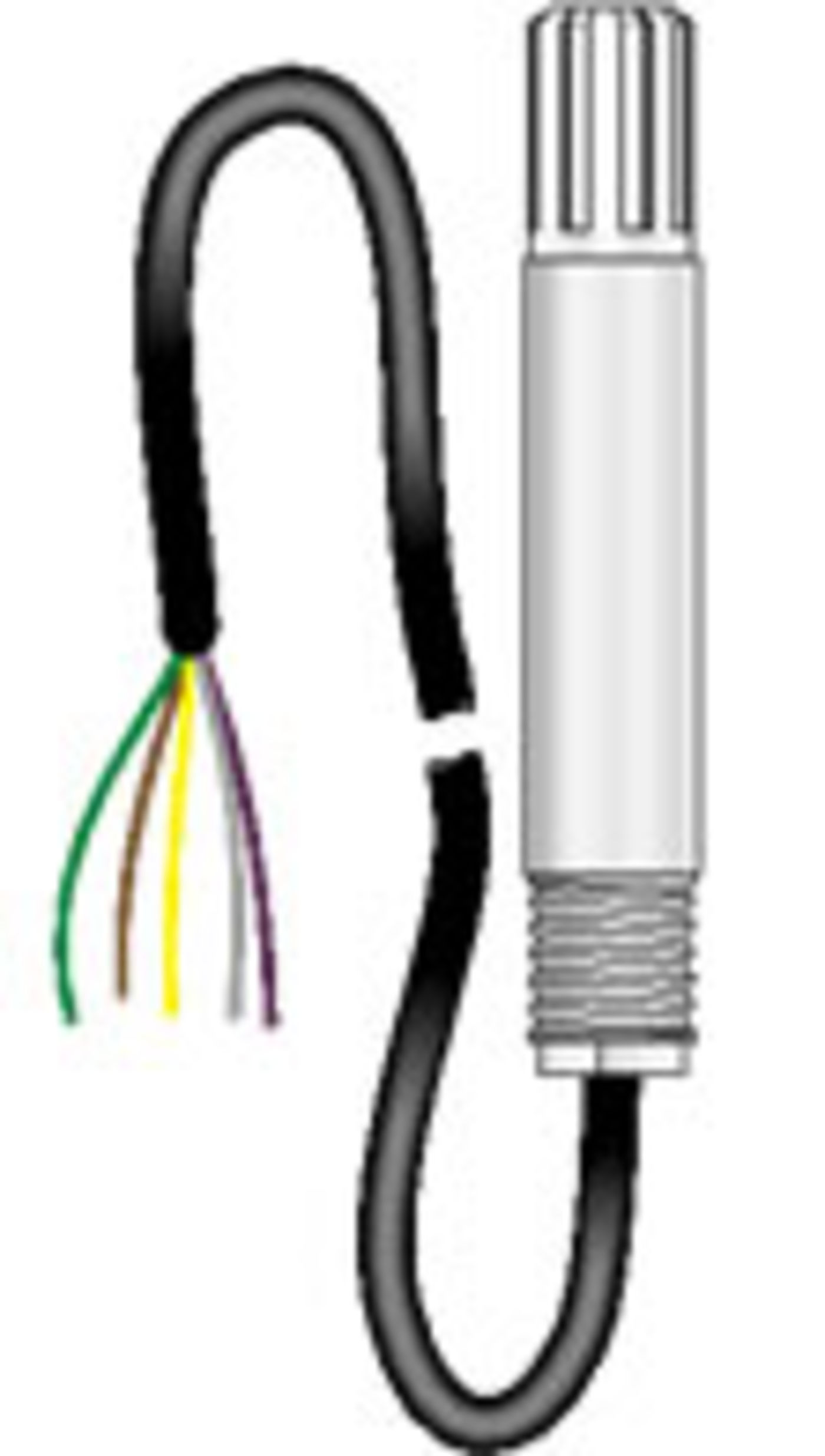

The CS500 was a modified version of Vaisala's 50Y Humitter. The probe measured temperature with a 1000 Ohm platinum resistance thermometer (PRT) and relative humidity (RH) with a 50Y Intercap humidity sensor. The CS500 was cabled with our pn 9720 cable.
Specifications
- Accuracy
- ±3%
(over 10 to 90% RH)
- Accuracy
- ±6%
(over 90 to 100% RH)
- Operating Temperature Range
- -40° to +60°C
- Diameter
- 1.2 cm
(0.47 in.)
- Length
- 6.75 cm
(2.66 in.)
- Weight
- 0.05 kg (0.1 lb) with 1.83-m (6-ft) cable
Ships With
(1)- Instruction Manual
