End of lifeConfigurableRadar Water-Level Sensor, 98 ft Maximum Distance
Pricing
- Model:
- CS476-L
- Item Number:
- 25611
- Warranty:
- 2 years
- Lead time:
- 14 days
Overview

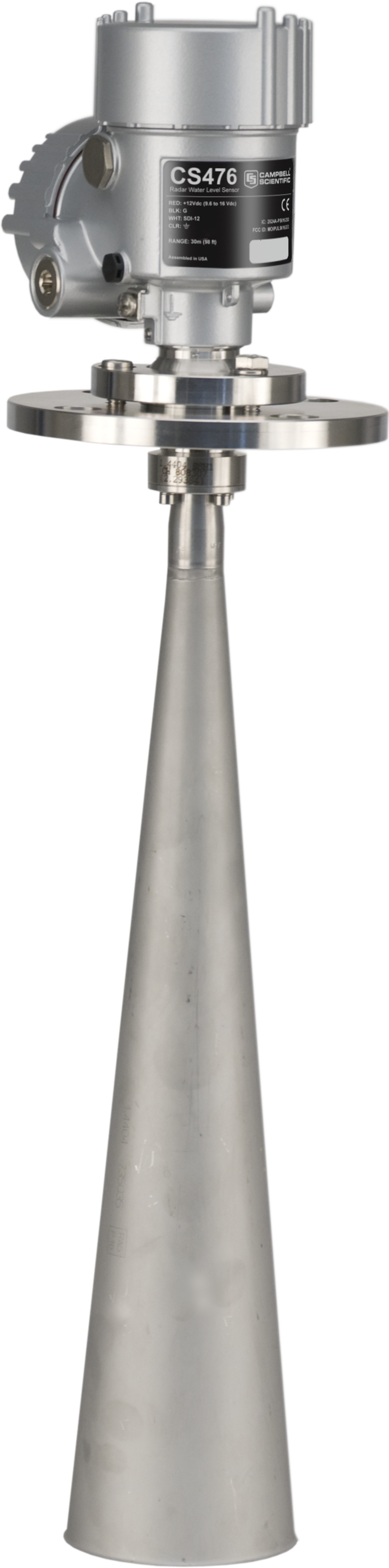

The CS476 is a radar-ranging sensor that monitors water level of rivers, lakes, tidal seas, and reservoirs. It can measure distances up to 30 meters. The CS476 outputs a digital SDI-12 signal to indicate distance and stage. This output can be read by many of our data loggers.
Key Advantages
FCC approved for outdoor use
Technical Description
The CS476 emits short microwave pulses and then measures the elapsed time between the emission and return of the pulses. The elapsed time measurement is used to calculate the distance between the sensor and the target (e.g., water, grain, slurry). The distance value can then be used to determine depth.
Benefits
- FCC approved for outdoor use (FCC ID number MOIPULS616263)
- Ideal for areas where submersed sensors can be damaged due to corrosion, contamination, flood-related debris, lightning, or vandalism
- Compatible with most Campbell Scientific data loggers
- Low maintenance—no moving parts significantly reduces maintenance cost and time
- Low power consumption
- Rugged enough for harsh environments—NEMA rated 4X
- Wide operating temperature range (-40° to +80°C)
Specifications
- Compliance
- FCC approved for outdoor use
(FCC IC number M01PULS616263)
- Measurement Range
- 50 mm to 30 m
(2 in. to 98 ft)
- Accuracy
- ±3 mm
(±0.1 in.) over entire measurement range
- Resolution
- 1 mm
(0.04 in.)
- Output Protocol
- SDI-12
- Radar Frequency
- ~26 GHz
- Electromagnetic Compatibility
- Emission to EN 61326; Electrical Equipment Class B
- Pulse Energy
- 1 mW maximum
- Beam Angle
- 8°
- Input Voltage
- 9.6 to 16 Vdc
- Surge Protection
- 1.5 KVA
- Temperature Sensitivity
- Average TK is 2 mm/10 K
- Temperature Sensitivity
- Maximum 5 mm
(over the entire temperature range of -40° to +80°C)
- Vibration Resistance
- Mechanical vibrations with 4 g and 5 to 100 Hz
- Housing Rating
- NEMA 4x
- Housing
- Aluminum, coated IP66/68
- Horn Material
- 316L stainless steel
- Typical Sleep Current Drain
- 4.7 mA
(with 12 V power supply)
- Typical Measurement Current Drain
- 14 mA
(with 12 V power supply)
- Side Cap Diameter
- 8.6 cm
(3.4 in.)
- End Cap Diameter
- 8.6 cm
(3.4 in.)
- Horn Diameter
- 9.5 cm
(3.7 in.)
- Head Width
- 13 cm
(5 in.)
- Horn Length
- 43 cm
(16.9 in.)
- Total Length
- 58.5 cm
(23 in.)
- Weight
- 4.3 kg
(9.4 lb)
