Radar Water-Level Sensor
CS475A-L

CS475A-L

RetiredConfigurableGSA

Radar Water-Level Sensor

Best radar for general applications. HIF tested.

Pricing

Sign in for pricing

Configuration

Sign in for option pricing

Select a configuration to add to your quote

Model:
CS475A-L
Item Number:
32873
Warranty:
2 years
Lead time:
14 days

Overview

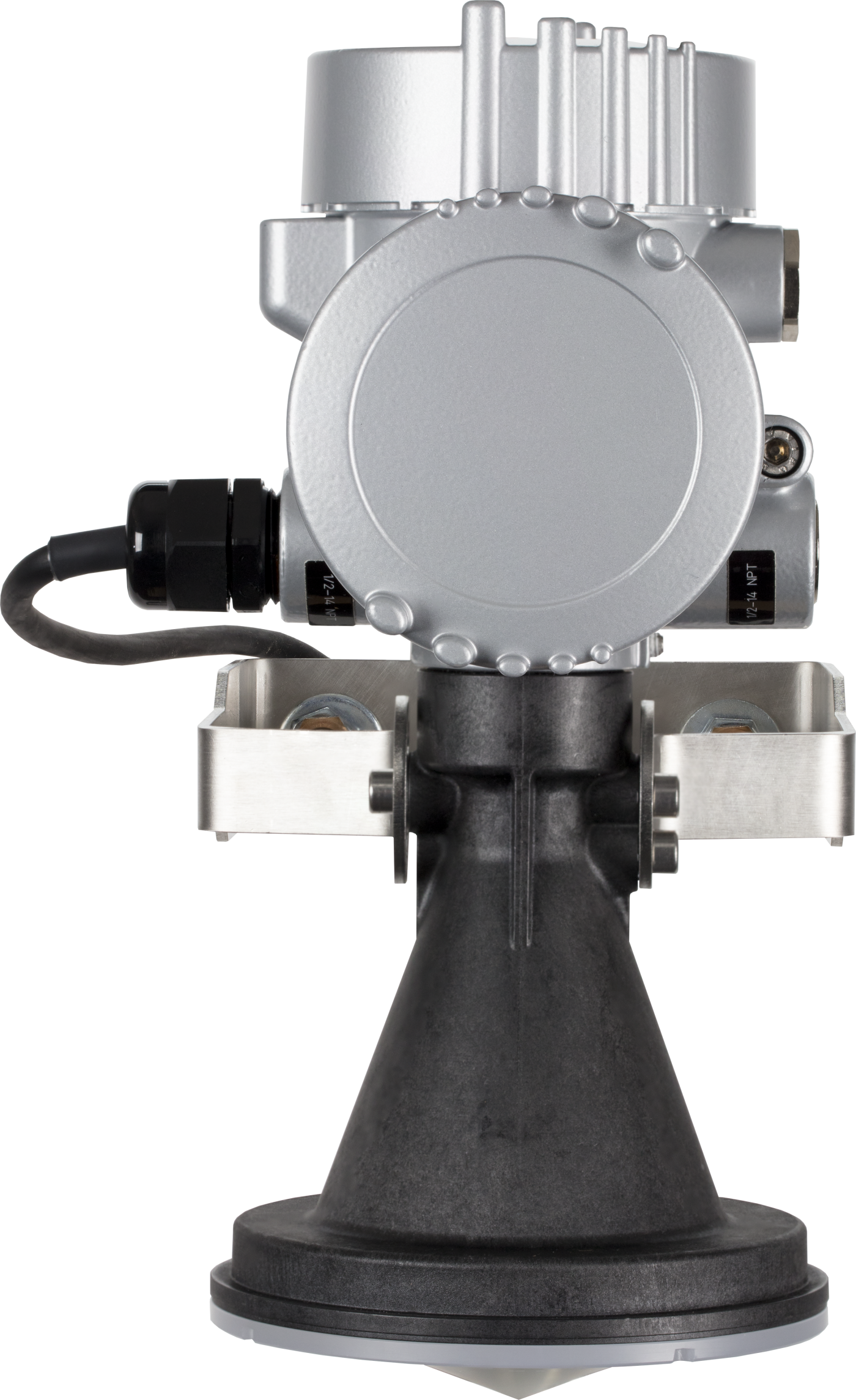

CS475A-L Radar Water Level Sensor, 34.99m (114.8ft) Max Distance (-40 to +80C)

The CS475A radar sensor monitors the water level of rivers, lakes, tidal seas, and reservoirs. The sensor is ideal for areas where submersed sensors can be damaged due to corrosion, contamination, flood-related debris, lightning, or vandalism. It emits short microwave pulses and then measures the elapsed time between the emission and return of the pulses. The elapsed time measurement is used to calculate the distance between the sensor and the target (for example, water, grain, slurry). The distance value can then be used to determine depth of the medium.

The CS475A outputs a digital SDI-12 signal to indicate distance and stage. This output is acceptable for recording devices with SDI-12 capability, including Campbell Scientific data loggers.

Key Advantages

Non-Contact Water Level Monitoring
FCC approved for outdoor use

Technical Description

Features of the SDI-12 version 1.4 functionality:

  • M! commands return stage, distance, voltage, and error codes
  • SHEF coded meta data

Benefits

  • Meets USGS Office of Surface Water (OSW) requirements for accuracy
  • SDI-12 version 1.4 functionality
  • Makes 1 Hz measurements
  • Monitors tides for NOAA physical oceanographic real-time systems (PORTS)
  • Easy to set up and configure over USB or SDI-12
  • FCC compliant (FCC IC# MOIPULS 616263); individual FCC license not required
  • Low maintenance—no moving parts significantly reduces maintenance cost and time
  • Low power mode available
  • Rugged enough for harsh environments—IP68 rating
  • Optional display available

Specifications

Measurement Description
Distance
Output Options
SDI-12
Measurement Range
0.5 to 35 m

(1.6 to 114.8 ft)

Accuracy
±2 mm

(±0.0065 ft)

Resolution
1 mm

(0.0033 ft)

Communications Output
SDI-12 version 1.4
Radar Frequency
K band

(~26 GHz)

Pulse Energy
1 mW

(maximum)

Beam Angle
10°
Input Voltage
9.6 to 32 Vdc
Surge Protection
1.5 KVA
Operating Temperature Range
-40° to +80°C
Vibration Resistance
Mechanical vibrations with 4 g and 5 to 100 Hz
Mechanical Rating
IP66/68
Housing Material
Aluminum
Horn Material
PVDF plastic
Measurement Time
< 1.0 s

(normal power mode)

Measurement Time
60.0 s + (5 • Integration Time) + (Measurement Time)

(low power mode)

Housing Height
129 mm

(5.1 in.)

Horn Diameter
115 mm

(4.5 in.)

Horn Height
122 mm

(4.8 in.)

Weight
2 kg

(4 lb)

Nominal Current Drain

Normal Power Mode
< 5 mA

(sleep state)

Normal Power Mode
< 7 mA

(measurement state)

Low Power Mode
< 550 μA

(sleep state)

Low Power Mode
< 7 mA

(measurement state)
