End of lifeConfigurableWater Level and Temperature Sensor
Pricing
- Model:
- CS431-L
- Item Number:
- CS431-L
- Warranty:
- 1 year
- Lead time:
- 21 days
- Compliance:
- vented
Overview

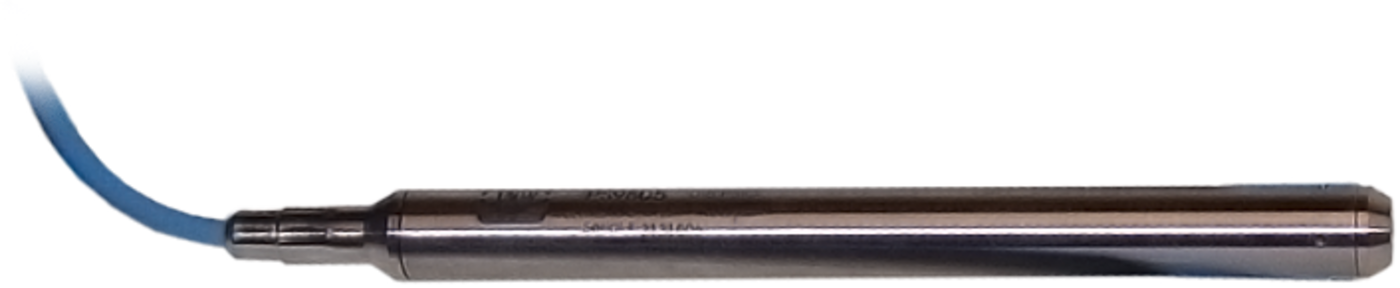

The CS431 is a pressure transducer manufactured for use with Campbell Scientific data loggers. It measures both water level and water temperature in canals, wells, ponds, harbors, lakes, streams and tanks. Campbell Scientific data loggers measure the sensor's output and then converts the measured value to the desired units.
Key Advantages
Ideal for long-term deployment in harsh conditions
Technical Description
The CS431 uses piezoresistive strain gage technology to measure water level and an on-board thermistor to measure temperature. Piezoresistive transducers include a strain gage bonded to a pressure-sensitive diaphragm. Electrical resistance changes as pressure changes on the diaphragm.
The CS431 has a 316 stainless steel body and Viton® and Teflon® wire seals that resist corrosion. Its double-sealed, cable harness protects the cable jacket and reduces the possibility of leakage. The end cone is interchangeable with a ¼” NPT inlet allowing easy hookup and field calibration. You can choose a polyurethane or Teflon cable (see Ordering Info). Both cable options are vented.
Benefits
- Compatible with most Campbell Scientific data loggers
- Enhanced temperature calibration available (see Ordering Info)
- Stainless-steel body and Viton and Teflon wire seals resist corrosion
- Double-sealed cable harness protects the cable jacket and reduces the possibility of leakage
- End cone is interchangeable with an NPT inlet allowing easy hookup and field calibration
Specifications
- Available Pressure Ranges
- 5, 10, 30, 50, 100 psi
- Pressure Measurement Repeatability
- ±0.1% FSO
(typical)
- Pressure Measurement Linearity
- ±0.1% FSO,
(typical)
- Typical Output Voltage Sensitivity
- 15 to 16 mV/V
(at 20°C)
- Typical Bridge Resistance
- 4 kohm
(at 20°C)
- Typical Excitation Voltage
- 0.8 V
- Compensated Temperature
- 0° to 40°C
- Operating Temperature
- -5° to +70°C
- Diameter
- 2.13 cm
(0.84 in.)
- Maximum Cable Length
- 609.6 m
(2000 ft)
- Length
- 27.31 cm
(10.75 in.)
- Weight
- 1.4 kg (3 lb) with 15.24-m (50-ft) cable
Temperature Error
- Standard Calibration (-SC)
- ±2.0% FSO
(0° to 40°C)
- Enhanced Calibration (-XC)
- ±0.2% FSO
(0° to 40°C)
Accessories
(1)Ships With
(1)- Calibration Sheet
