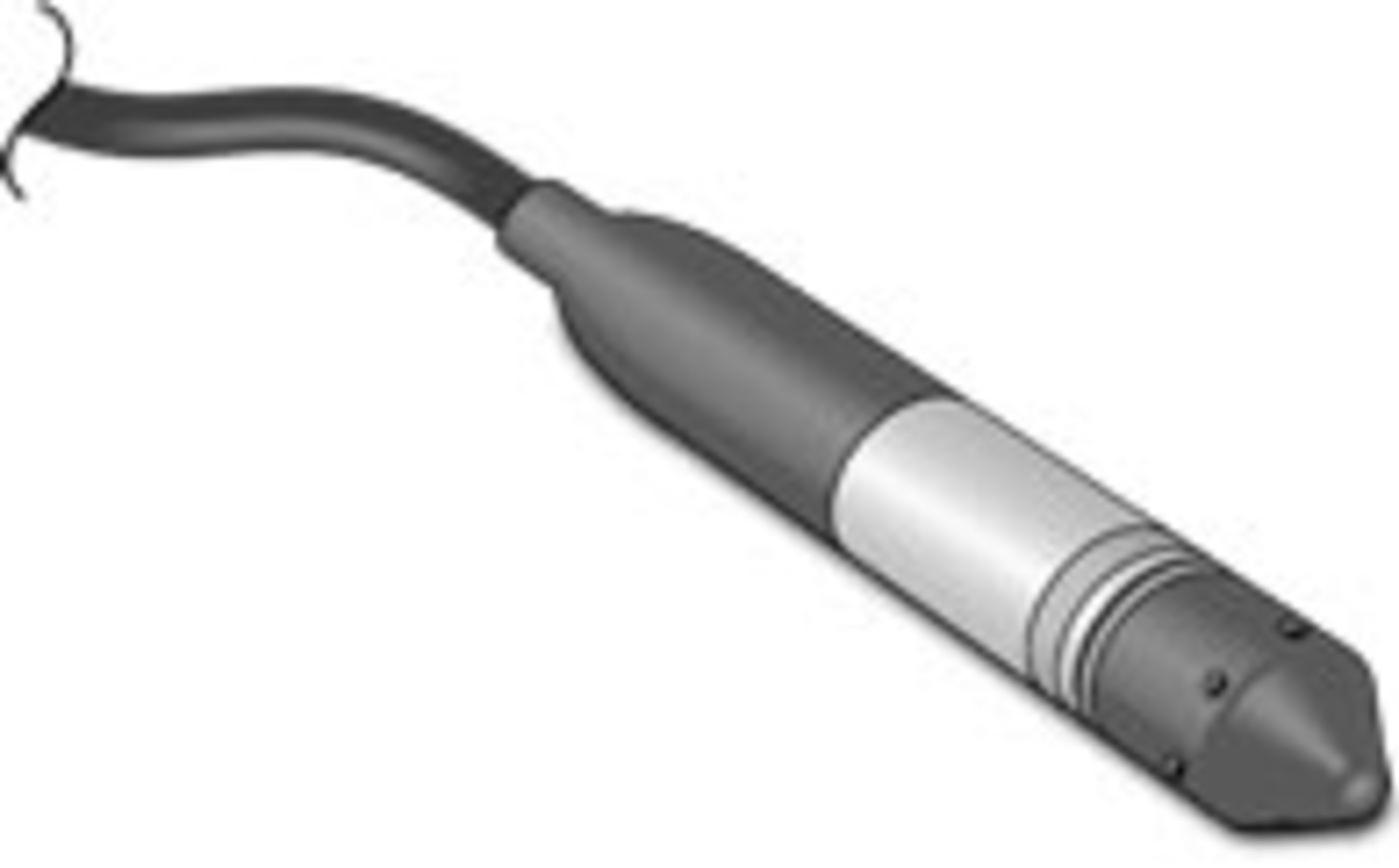

Druck PDCR 1830-8388 Submersible Pressure Transducer
CS420-L
End of lifeConfigurableDruck PDCR 1830-8388 Submersible Pressure Transducer
Pricing
- Model:
- CS420-L
- Item Number:
- CS420-L
- Lead time:
- 21 days
Overview
The CS420 was manufactured by Druck for use in surface, groundwater, or hostile fluid applications. It was quite similar to the CS425 (retired also), but offered increased static accuracy. The sensor's accuracy was ±0.1% FS, BSL (combined non-linearity, hysteresis, and repeatability). The CS420 featured a titanium body with an isolated diaphragm and NEMA6 (IP68) ingress protection to 2300 feet of water.
Technical Description
The CS420 was removed from our pricing system on December 5, 2008.
Specifications
- Output Voltage
- 25 mV for 1 psig range
- Output Voltage
- 50 mV for 2.5 and 5 psig ranges
- Output Voltage
- 100 mV for ranges 10 psig and above
- Operating Temperature Range
- -2° to +30°C
(compensated)
- Diameter
- 2.0 cm
(0.8 in.)
- Length
- 10.2 cm
(4.0 in.)
- Weight
- 1.36 kg
(3 lb)
Accessories
(1)Ships With
(2)- Calibration Sheet
- Dri-Can reusable desiccating canister
