CS305-ET
Solar Radiation Sensor for ET107 Stations
CS305-ET
RetiredSolar Radiation Sensor for ET107 Stations
Pricing
- Model:
- CS305-ET
- Item Number:
- 19347
- Warranty:
- 4 years
Overview

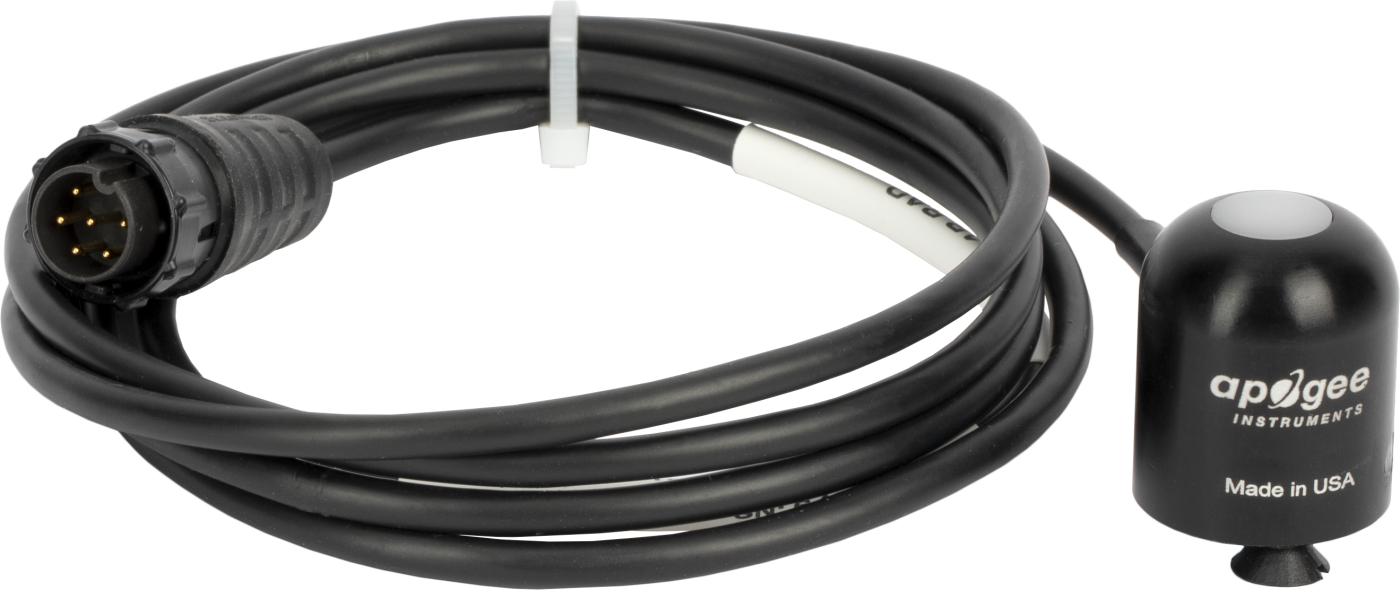

CS305-ET Apogee SP-112 Solar Radiation Sensor for ET107, 152cm (60 Inch) Cable
The CS305-ET pyranometer, manufactured by Apogee, uses a different fixed multiplier than the CS300.
Key Advantages
Accurate and Dependable
Ideal for long-term deployment in harsh conditions
Ideal for long-term deployment in harsh conditions
Technical Description
The CS305-ET measures total sun and sky solar radiation using a silicon photocell. The spectral range is 300 to 1000 nanometers, which encompasses most of the shortwave radiation that reaches the Earth's surface.
The standard output is 0.005 mV per W m-2, which provides a signal of 5 mV in full sunlight (1000 W m-2). All of our data loggers, except the CR200(X) series, can measure this output. Therefore both the ET107 and ET106 are compatible.
Benefits
- Dome-shaped head prevents water from accumulating on the sensor head
Specifications
- Light Spectrum Waveband
- 300 to 1100 nm
- Measurement Range
- 0 to 2000 W m-2
(full sunlight ≈ 1000 W m-2)
- Absolute Accuracy
- ±5% for daily total radiation
- Sensitivity
- 0.2 kW m-2 mV-1
- Cosine Response
- ±4%
(at 75° zenith angle)
- Cosine Response
- ±1%
(at 45° zenith angle)
- Temperature Response
- < 1%
(at 5° to 40°C)
- Long-Term Stability
- < 2% per year
- Diameter
- 2.4 cm
(0.9 in.)
- Cable Length
- 152.4 cm
(60 in.)
- Height
- 2.5 cm
(1.0 in.)
- Weight
- 65 g
(2.3 oz)
