CS240DM3TPCBL-L

CS240DM 3-Twisted Pair Shielded Cable
CS240DM3TPCBL-L

CS240DM3TPCBL-L

RetiredConfigurable

CS240DM 3-Twisted Pair Shielded Cable

Pricing

Sign in for pricing

Configuration

Sign in for option pricing

Select a configuration to add to your quote

Model:
CS240DM3TPCBL-L
Item Number:
34111
Warranty:
1 Year
Lead time:
14 days

Overview

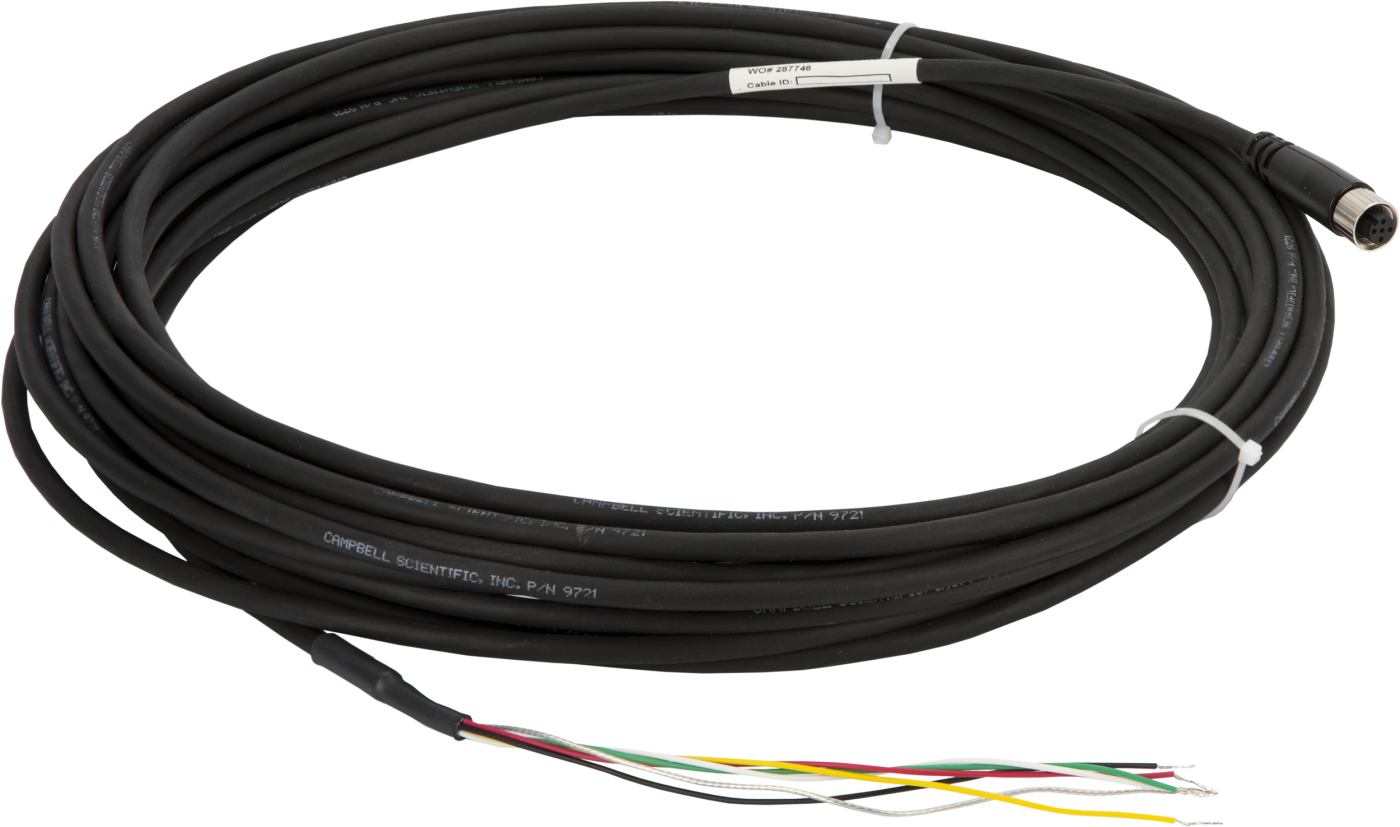

CS240DM3TPCBL-L CS240DM 3-Twisted Pair Shielded Cable

The CS240DM3TPCBL-L includes a connector on one side of the cable for mating any user-specified length of 9721 Santoprene-jacketed cable to a CS240DM Pt-1000 Class A, Back of Module Temperature Sensor with Digital Modbus RS-485 Output. The other side of the cable is pigtailed and tinned. The cable is a three-twisted pair, 24 AWG cable that has a Santoprene jacket. Insulation colors of the twisted paris are red/black, green/white, and blue/yellow. An aluminum Mylar shield is grounded via a drain wire.

Technical Description

Wiring Diagram

Pin Wire Color Function
3 Green RS-485 A/A' [-]
2 White

RS-485 B/B' [+]
4 Red

12V Vdc
1 Black

Power Ground
5 Yellow

Modbus Common
- Clear

Shield
