CS105
CS105

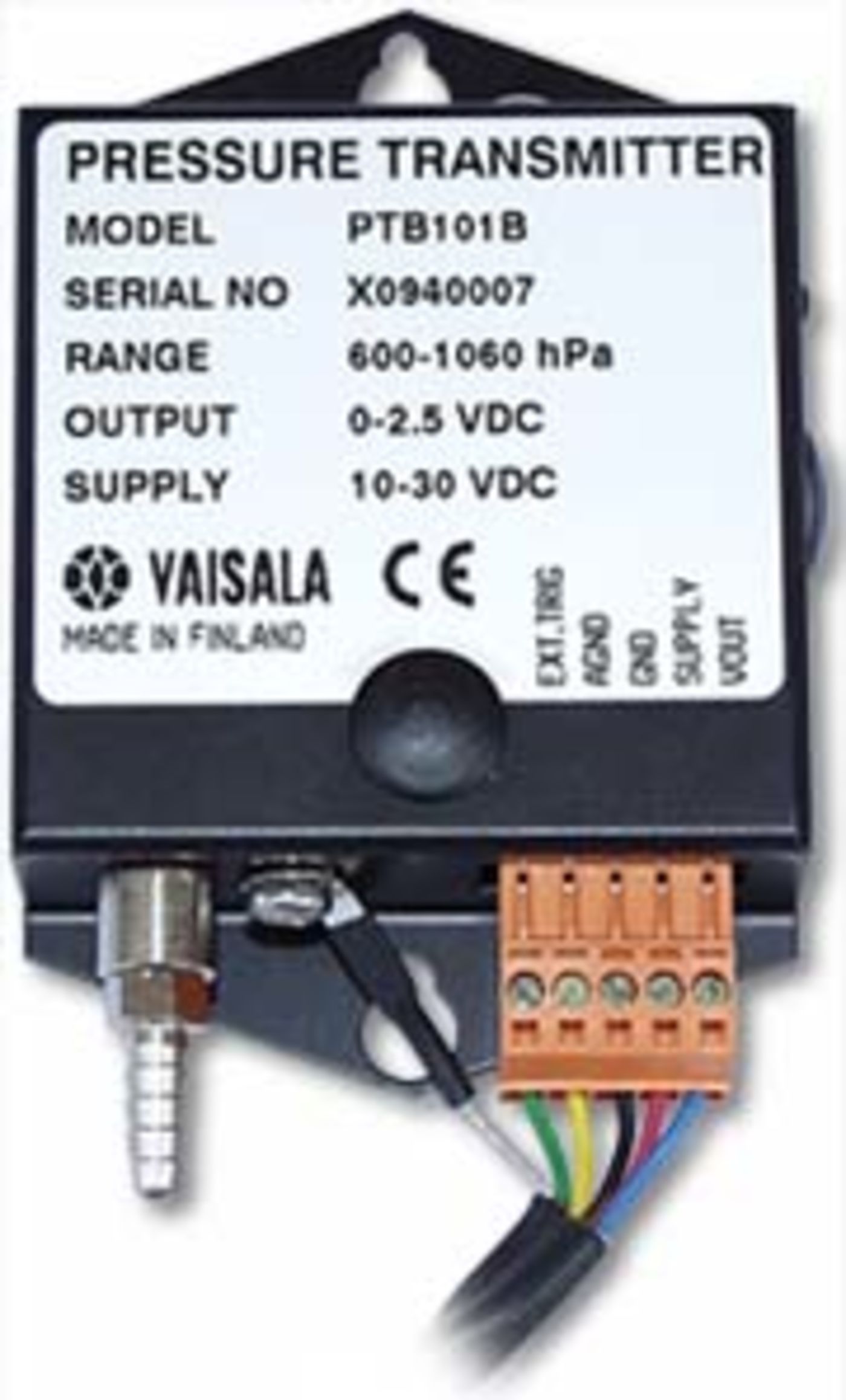

RetiredVaisala PTB101B Barometer
Pricing
- Model:
- CS105
- Item Number:
- CS105
- Warranty:
- 3 years
- Lead time:
- 21 days
Overview
The CS105 measured barometric pressure for the range of 600 to 1060 mb (approximately sea level to 12,000 feet). A 12 V switching circuit was included in the sensor; a data logger control port was used to control 12 Vdc power to the sensor, reducing power consumption. A sensor warm-up time of up to 1 second was recommended.
Specifications
- Accuracy
- ±0.5 mb
(@ +20°C)
- Temperature Range
- -40° to +60°C
- Dimensions
- 6.1 x 6.1 x 2.0 cm
( 2.4 x 2.4 x 0.8 in.)
Related Resources
Case Studies

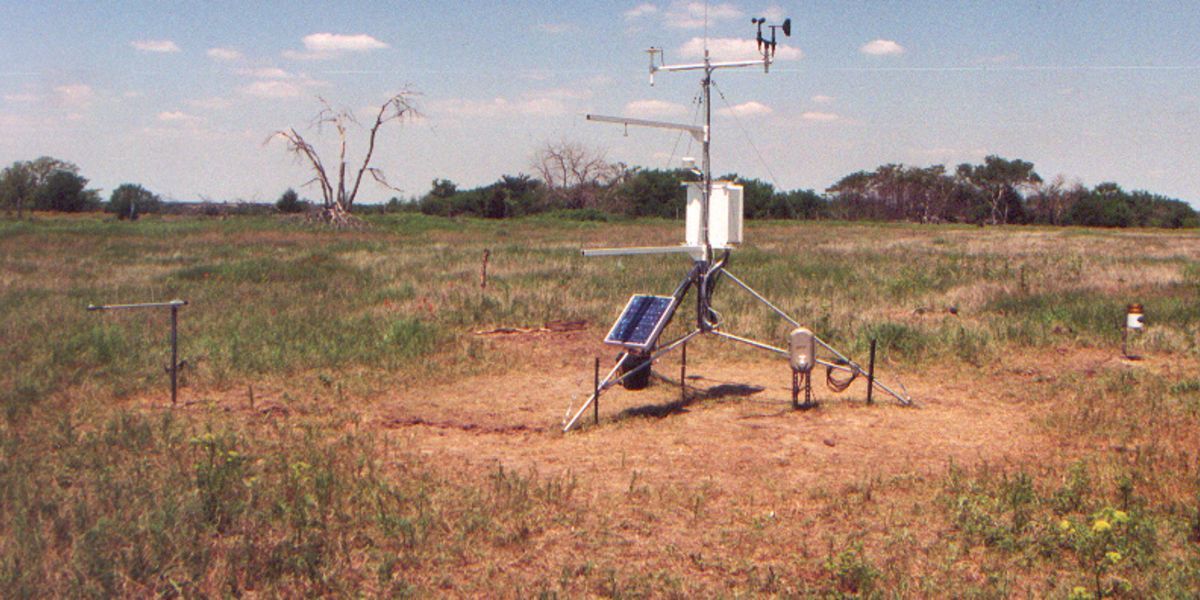

Texas: College Weather Station
Weather and climate in North Texas
Texas, USA
January 18, 2018
View

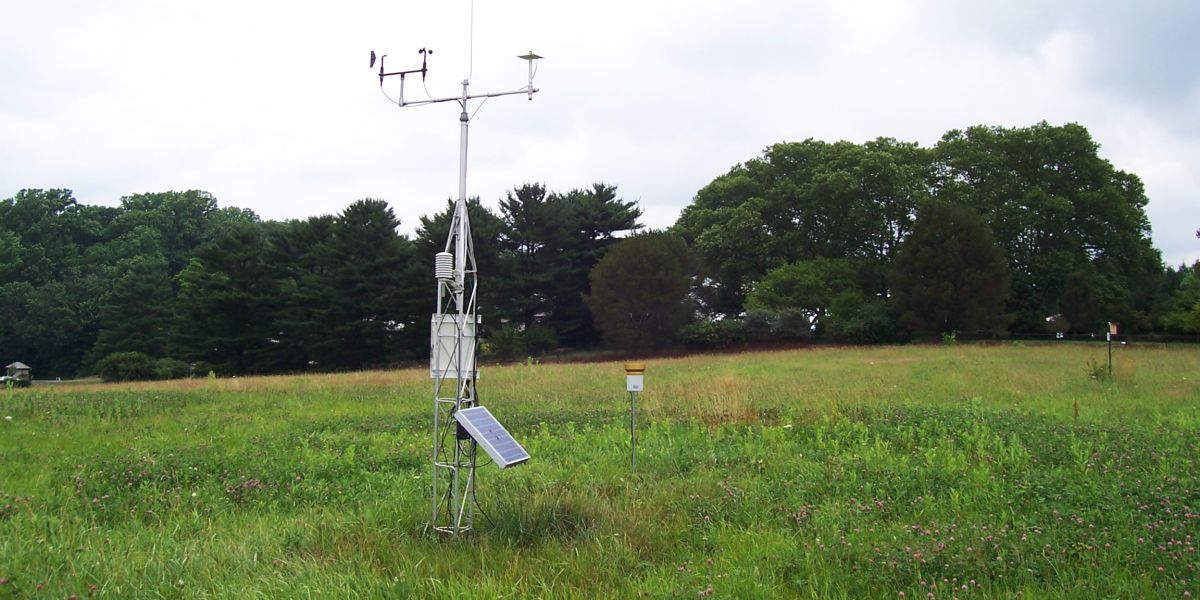

Delaware: Environmental Observing System
