RetiredConfigurablePulse Counter and Digital I/O Module with CR9071EC
Pricing
- Model:
- CR9071E
- Item Number:
- 16209
- Warranty:
- 3 years
- Lead time:
- 14 days
Overview

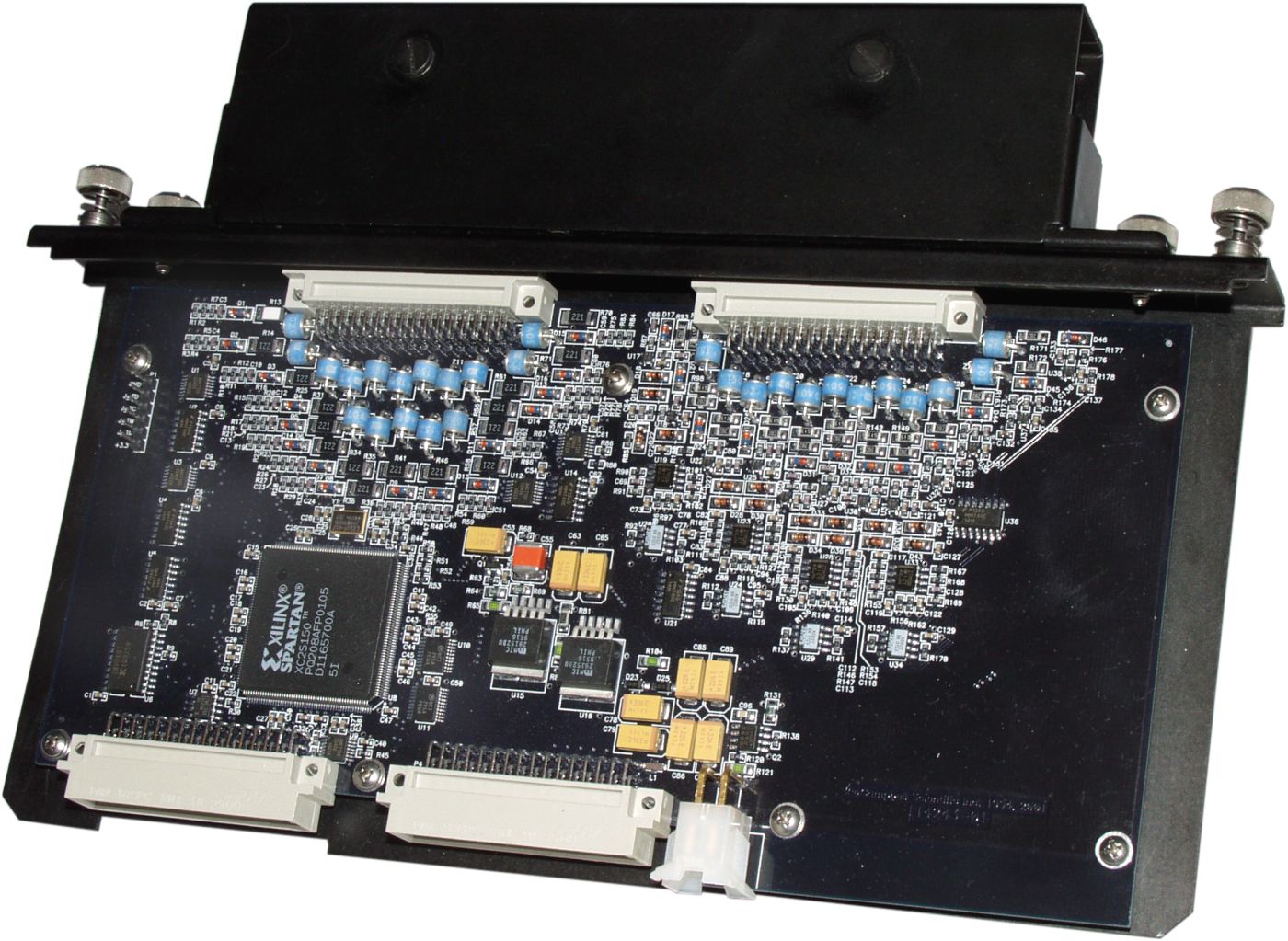

The CR9071E is a pulse module for the high-performance CR9000X and CR9000 measurement and control systems. It has 16 digital I/O channels and 12 pulse counting channels. All 28 channels can be used for interval timing. It includes a CR9071EC Easy Connector.
Technical Description
The CR9071E is a pulse module for the CR9000X-series and CR9000-series dataloggers. It contains 16 digital I/O channels and 12 pulse counting channels that can measure frequencies up to 1 MHz. All 28 channels can be used for interval timing.
The CR9071E includes one CR9071EC easy connector module. Easy connector modules allow sensor wiring to remain connected while the pulse module’s measurement electronics and the rest of the data logger system are used elsewhere. Additional CR9071ECs are purchased as a separate line item.
Improvements over its predecessor (the CR9070) include better overvoltage protection, increased channel-to-channel crosstalk isolation, interval (edge) timing with 40 nanosecond resolution, and a Wait Digital Trigger function.
Benefits
- Can be added to or removed from CR9000X to support changing measurement needs
- CR9071EC disconnects sensors easily so CR9000X can be moved from location to location
Specifications
- -NOTE-
- Additional specifications are listed in the CR9000X(C) Specifications Sheet.
- Pulse Counters
- 12
- Digital I/O Ports
- 16
- Measurement Resolution
- to 16 μV
- Minimum Switch Closed Time
- 5 ms
- Minimum Switch Open Time
- 6 ms
- Minimum Pulse Width
- 500 ns
- Maximum Input Frequency
- 1 MHz
- Maximum Input Voltage
- ±20 V
- Active Current Drain
- 35 mA
- Operating Temperature
- -40° to +70°C
- Dimensions
- 24.1 x 2.5 x 11.5 cm
(9.5 x 1.0 x 4.5 in.) without EC
- Dimensions
- 24.1 x 2.5 x 16.3 cm
(9.5 x 1.0 x 6.4 in.) with EC
- Weight
- 501 g
(17.7 oz) for card and EC
- Weight
- 12 g
(11.0 oz) for card only
- Weight
- 189 g
(6.7 oz) for EC only
