CR9058EC

Easy Connector Module for CR9058E
CR9058EC

CR9058EC

RetiredConfigurable

Easy Connector Module for CR9058E

Pricing

Sign in for pricing

Configuration

Sign in for option pricing

Select a configuration to add to your quote

Model:
CR9058EC
Item Number:
16914
Warranty:
3 years
Lead time:
14 days

Overview

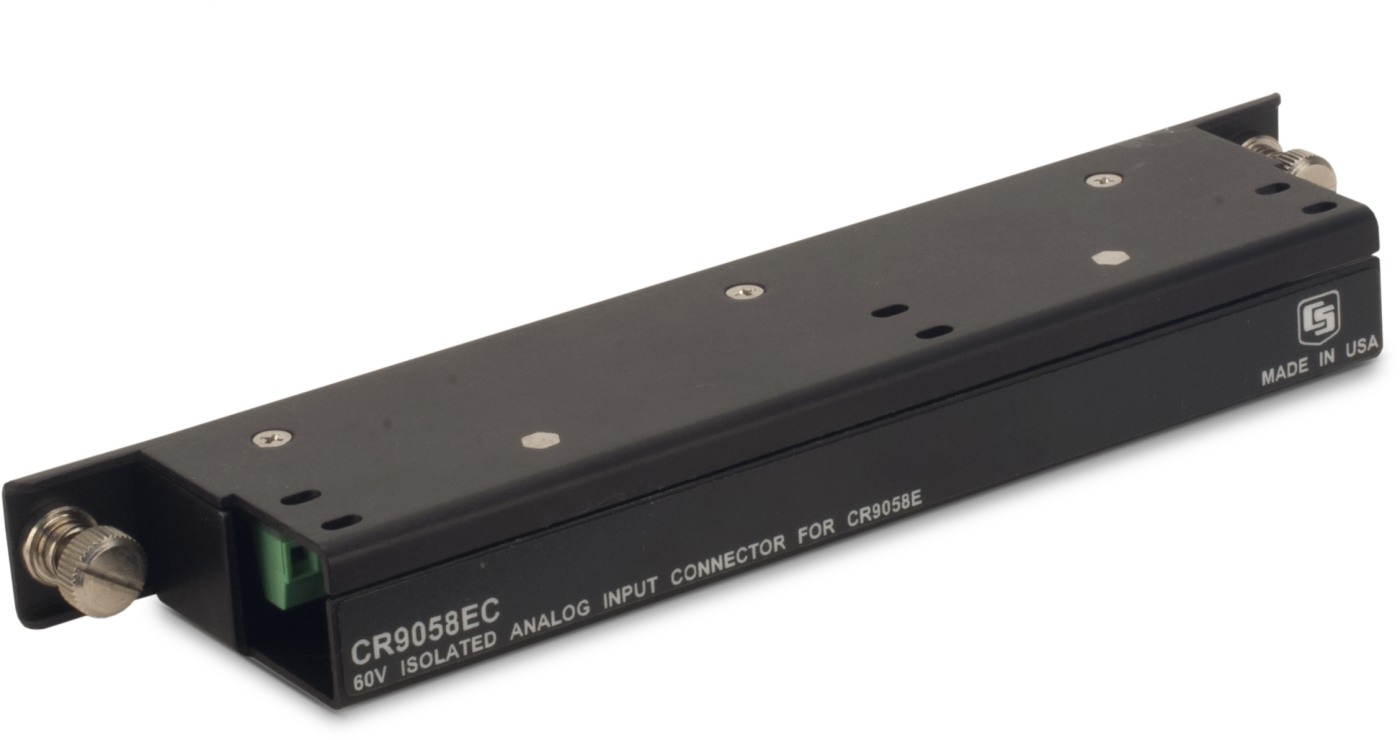

CR9058EC EASY CONNECTOR Module

The CR9058EC connects sensors to CR9058E modules for the CR9000X measurement and control system. Sensors are wired into the CR9058EC, which is then attached to the module. The module can then remain attached to the CR9000X, and the system has the flexibility to be used with various sets of sensors.

Technical Description

The CR9058EC is an easy connector module for the CR9058E; the CR9058E is a 60 V isolated analog input module for the CR9000(X)-series dataloggers. This easy connector module allows sensor wiring to remain connected while the input module's measurement electronics and the rest of the data logger system are used elsewhere.

Each CR9058E comes with one CR9058EC easy connector module; additional CR9058EC modules may be purchased as a separate line item.

Benefits

  • CR9058EC disconnects sensors easily so CR9000X can be moved from location to location

Specifications

Dimensions
20.96 x 5.08 x 2.54 cm

(8.25 x 2.0 x 1.0 in.)

Weight
185.98 g

(0.41 lb)
