CR9055E
CR9055E

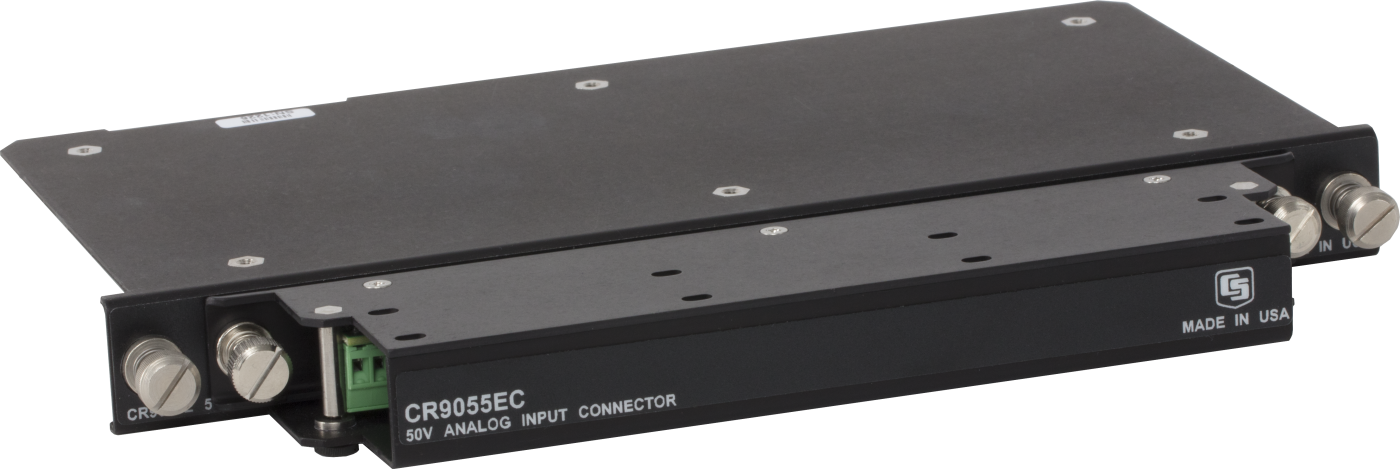

RetiredConfigurable50 V Analog Input Module with CR9055EC
Pricing
- Model:
- CR9055E
- Item Number:
- 16203
- Warranty:
- 3 years
- Lead time:
- 14 days
Overview
The CR9055E is one of the modules used with our CR9000 and CR9000X dataloggers. It is similar to the CR9055, including 14 differential (28 single-ended) inputs, with the addition of a CR9055EC easy connector module.
Technical Description
The CR9055E is an I/O module for the CR9000X-series and CR9000-series dataloggers. It contains 14 differential (28 single-ended) input channels for measuring voltages up to ±50 V. The resolution on the most sensitive range is 16 microvolts.
The CR9055E includes one CR9055EC easy connector module. Easy connector modules allow sensor wiring to remain connected while the input module’s measurement electronics and the rest of the data logger system are used elsewhere. Additional CR9055ECs are purchased as a separate line item.
Benefits
- Can be added to or removed from CR9000X to support changing measurement needs
- CR9055EC disconnects sensors easily so CR9000X can be moved from location to location
- Measures voltages up to ±50 volts
Specifications
- -NOTE-
- Additional specifications are listed in the CR9000X(C) Specifications Sheet.
- Analog Channels
- 28 single-ended, 14 differential
- Analog Voltage Range
- ±50000 mV
- Analog Voltage Accuracy
- ±(0.1% of reading + 4 A/D counts), -25° to +50°C
- Measurement Resolution
- to 16 μV
- Current Drain
- 15 mA active
- Operating Temperature Range
- -25° to +50°C
(standard)
- Operating Temperature Range
- -40° to +70°C
(extended)
- Dimensions
- 23.3 x 12.4 x 2.5 cm
(9.2 x 4.9 x 1 in.)
- Weight
- 0.9 kg
(2 lb)
