CR9055
50 V Analog Input Module
CR9055
RetiredConfigurable50 V Analog Input Module
Pricing
- Model:
- CR9055
- Item Number:
- 8402
- Warranty:
- 3 years
- Lead time:
- 14 days
Overview

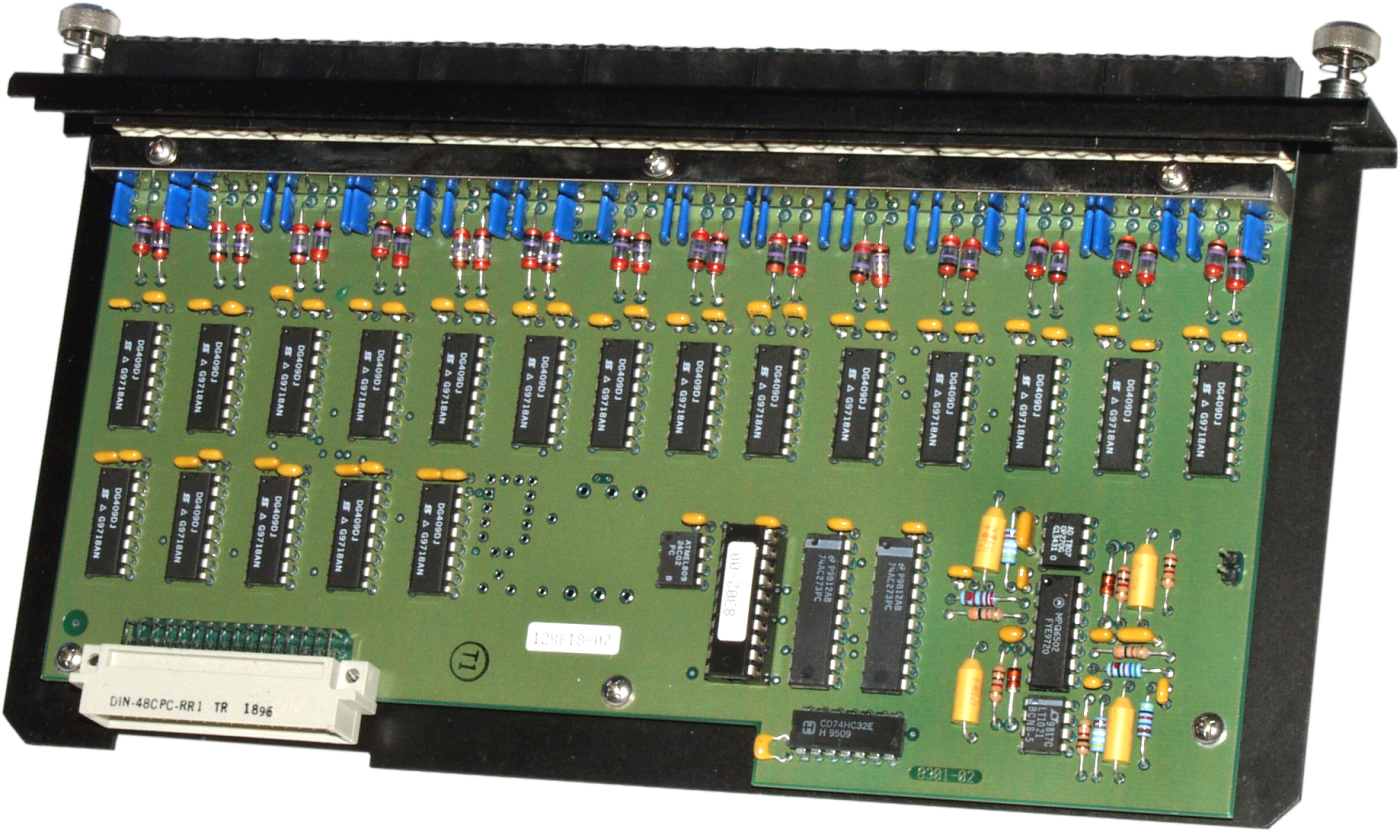

CR9055 50V ANALOG INPUT Module
The CR9055 is one of the modules used with our CR9000 and CR9000X dataloggers. It includes 14 differential (28 single-ended) inputs.
Technical Description
The CR9055 is an I/O module for the CR9000X-series and CR9000-series dataloggers. It contains 14 differential (28 single-ended) input channels for measuring voltages up to ±50 V. The resolution on the most sensitive range is 16 microvolts.
All input wires attach to the CR9055 via screw terminals.
Benefits
- Can be added to or removed from CR9000X to support changing measurement needs
- Measures voltages up to ±50 volts
Specifications
- -NOTE-
- Additional specifications are listed in the CR9000X(C) Specifications Sheet.
- Analog Channels
- 28 single-ended, 14 differential
- Analog Voltage Range
- ±50000 mV
- Analog Voltage Accuracy
- ±(0.1% of reading + 4 A/D counts), -25° to +50°C
- Measurement Resolution
- to 16 μV
- Active Current Drain
- 15 mA
- Operating Temperature Range
- -25° to +50°C
(standard)
- Operating Temperature Range
- -40° to +70°C
(extended)
- Dimensions
- 23.3 x 12.4 x 2.5 cm
(9.2 x 4.9 x 1 in.)
- Weight
- 0.5 kg
(1 lb)
