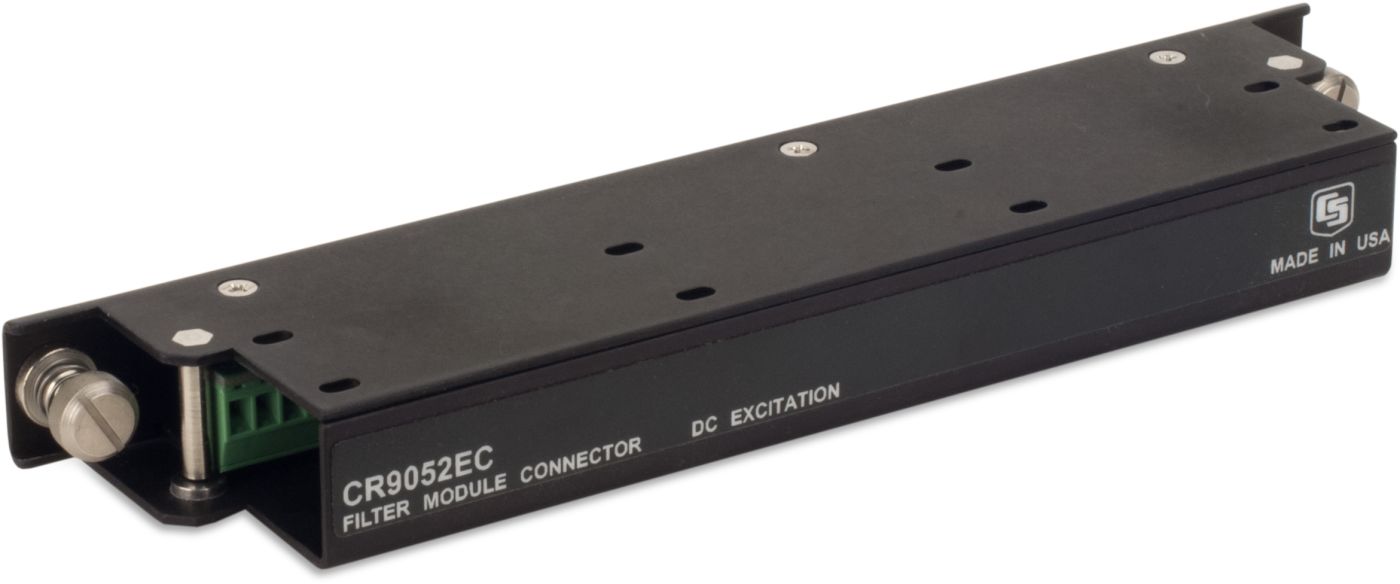

CR9052EC
CR9052EC
RetiredConfigurableEasy Connector Module for CR9052DC
Pricing
Configuration
Sign in for option pricing- FG CR9052EC EASY CONNECTOR ModuleFG
- CR9052EC-SW Easy Connector Module for CR9052DC -SW Standard 3yr WarrantyCR9052EC-SW
- CR9052EC-XW Easy Connector Module for CR9052DC -XW 4yr Warr ExtensionCR9052EC-XW
Select a configuration to add to your quote
- Model:
- CR9052EC
- Item Number:
- 13814
- Warranty:
- 3 years
- Lead time:
- 14 days
Overview
The CR9052EC connects sensors to CR9052E modules for the CR9000X measurement and control system. Sensors are wired into the CR9052EC, which is then attached to the module. The module can then remain attached to the CR9000X and the system has the flexibility to be used with various sets of sensors.
Technical Description
The CR9052EC is an easy connector module for the CR9052DC; the CR9052DC is a high-performance anti-alias filter module for the CR9000(X)-series dataloggers. This easy connector module allows sensor wiring to remain connected while the anti-alias filter module's measurement electronics and the rest of the data logger system are used elsewhere.
Each CR9052DC comes with one CR9052EC easy connector module; additional CR9052EC modules may be purchased as a separate line item.
Benefits
- CR9052EC disconnects sensors easily so CR9000X can be moved from location to location
Specifications
- Dimensions
- 21.6 x 6.4 x 2.5 cm
(8.5 x 2.5 x 1 in.)
- Weight
- 181 g
(0.3 lb)
