CR9050EC
CR9050EC
RetiredConfigurableEasy Connector Module for CR9050E or CR9051E
Pricing
- Model:
- CR9050EC
- Item Number:
- 10896
- Warranty:
- 3 years
- Lead time:
- 14 days
Overview

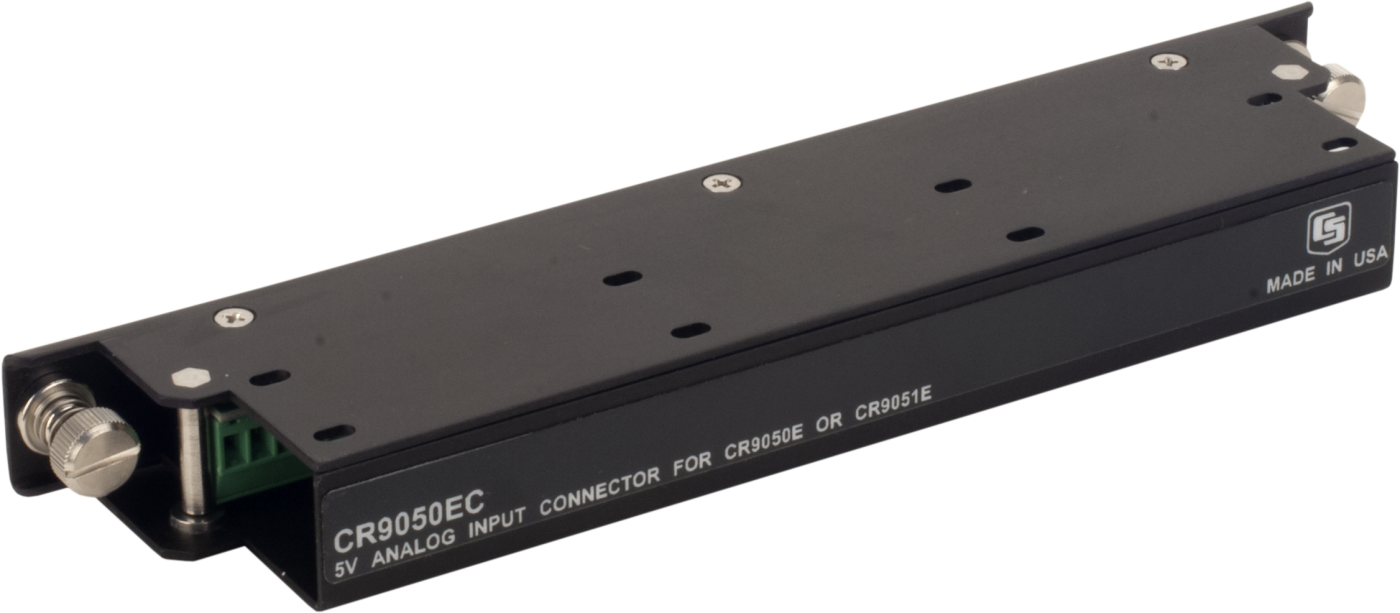

The CR9050EC connects sensors to CR9051E or CR9050E (retired) modules for the CR9000X measurement and control system. Sensors are wired into the CR9050EC, which is then attached to the modules. The modules can then remain attached to the CR9000X, and the system has the flexibility to be used with various sets of sensors.
Technical Description
The CR9050EC is an easy connector for the CR9051E and the retired CR9050E; both the CR9051E and CR9050E are 5 V analog input modules for the CR9000(X)-series dataloggers. This easy connector module allows sensor wiring to remain connected while the input module's measurement electronics and the rest of the data logger system are used elsewhere.
Each CR9051E comes with one CR9050EC easy connector module; additional CR9050EC modules may be purchased as a separate line item.
Benefits
- CR9050EC disconnects sensors easily so CR9000X can be moved from location to location
Specifications
- Dimensions
- 21.6 x 2.9 x 2.9 cm
(8.5 x 1.1 x 1.1 in.)
- Weight
- 136 g
(0.3 lb)
