CR10
CR10
End of lifeMeasurement and Control System
Pricing
- Model:
- CR10
- Item Number:
- CR10
- Lead time:
- 21 days
Overview

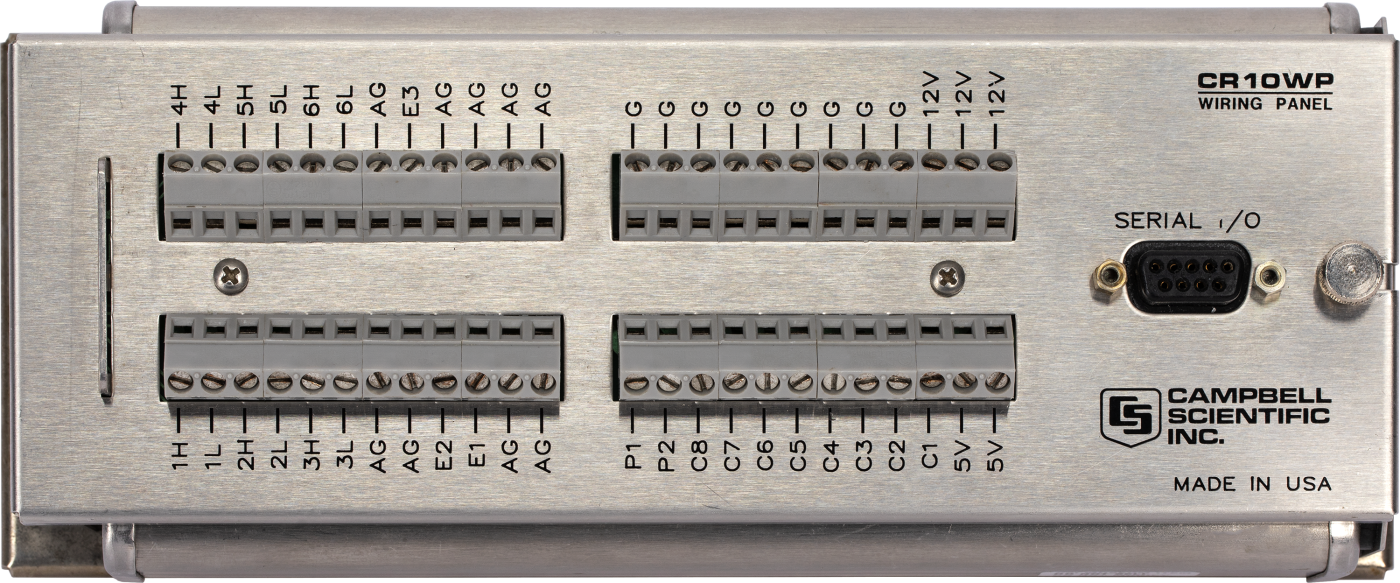

The CR10 was a predecessor of the CR10X. The CR10X was eventually replaced with the CR1000. The CR10 consisted of a CR10M Measurement and Control Module and a CR10WP Wiring Panel.
Technical Description
The CR10 had 12 single-ended (six differential) analog input channels, three switched excitation outputs, eight input/output control ports, two pulse counting channels, and a serial I/O port. It provided sensor measurement, timekeeping, data reduction, data/program storage and control functions. Up to 29,908 data points were stored in it's internal memory.
CR10s manufactured after 1 December 1993 (SN>19273) contained an internal jumper that supported use of 2 or 4 kbytes program memory (appropriate PROM also required).
Benefits
- Manufactured from 1987-1996
- Array-based data format
- Repairs still available
Specifications
- -NOTE-
- Note: Additional specifications are listed in the CR10 Specifications Sheet.
- Analog Input Channels
- 12 single-ended
(six differential)
- Switched Excitation Outputs
- 3
- Input/Output Control Ports
- 8
- Pulse Count Channels
- 2
- Serial I/O Port
- 1
- Memory
- Stores up to 29,908 data points in internal memory.
Accessories
(1)Related Resources
Case Studies
Washington: Weather and Water Quality Station
Real-time weather and water quality data displayed publicly on large monitors
Puget Sound, Washington, USA
November 5, 2013
View
Idaho: Slope Stability Monitoring
Monitoring long-term slippage and short-term slope failures
Idaho, USA
October 14, 2011
View
Space Research: Joint Damping Experiment
Measuring the acceleration of components of a structure in space
Space
October 28, 2015
View

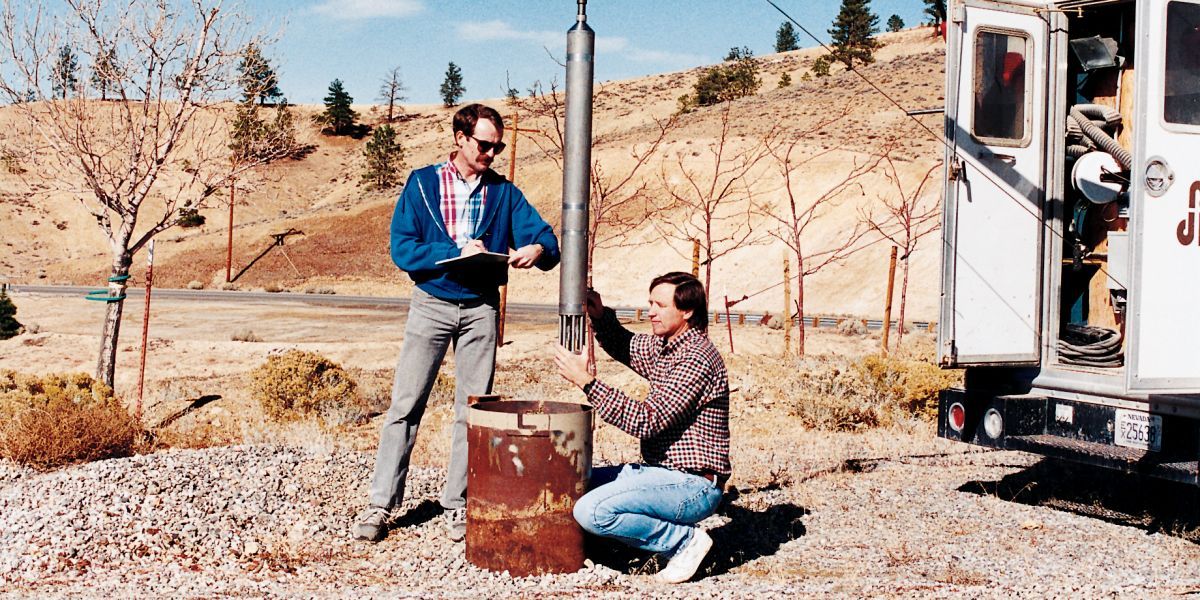

Nevada: Wellbore Logging
