COM210E
COM210E
End of lifeConfigurablePhone Modem for Europe
Pricing
- Model:
- COM210E
- Item Number:
- COM210E
- Lead time:
- 21 days
Overview
To get the same functionality as the COM210E, choose the -UK option for the COM220.

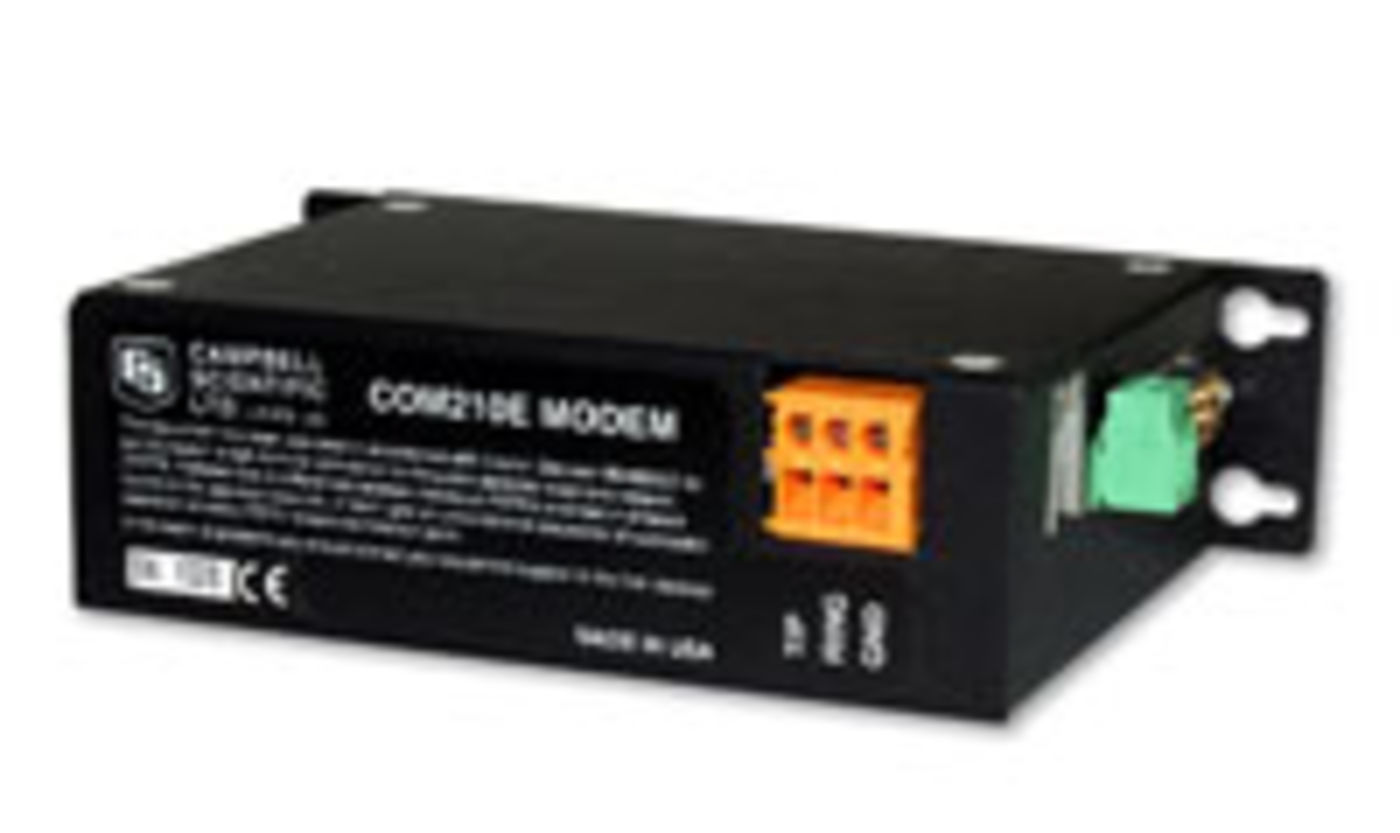

The COM210E enabled communications between a computer and a Campbell data logger via a European public switched telephone network. A Hayes-compatible modem was required at the base-station computer while a COM210E was connected to the data logger at the field site. The COM210E's wide operating temperature range and minimal power requirements made it ideal for use at remote sites.
Technical Description
To get the same functionality as the COM210E, choose the -UK option for the COM220.
Note
Historically, the 10704 Power Adapter was available for connecting the COM210E to the CR500 with s/n 1764 or lower, and the CR10 with the silver or 8032 black wiring panel. The adapter applied a constant 12 V to the COM210E's serial I/O. This power adapter is no longer available.
Specifications
- Operating Voltage
- 12 V
- Active Current Drain
- 160 mA
- Quiescent Current Drain
- 120 μA
- Baud Rate
- 1200, 4800, 9600 bps
- Operation
- Full-duplex over standard analog phone lines
- Standard Operating Temperature Range
- -25° to +50°C
- Extended Operating Temperature Range
- -55° to +85°C
- Dimensions
- 16.0 x 4.3 x 9.1 cm
(6.3 x 1.7 x 3.6 in.) with mounts
- Weight
- 272 g
(10 oz)
