COM210A
COM210A
End of lifePhone Modem for Australia
Pricing
- Model:
- COM210A
- Item Number:
- COM210A
- Lead time:
- 21 days
Overview
To get the same functionality as the COM210A, order the -AU option for the COM220.

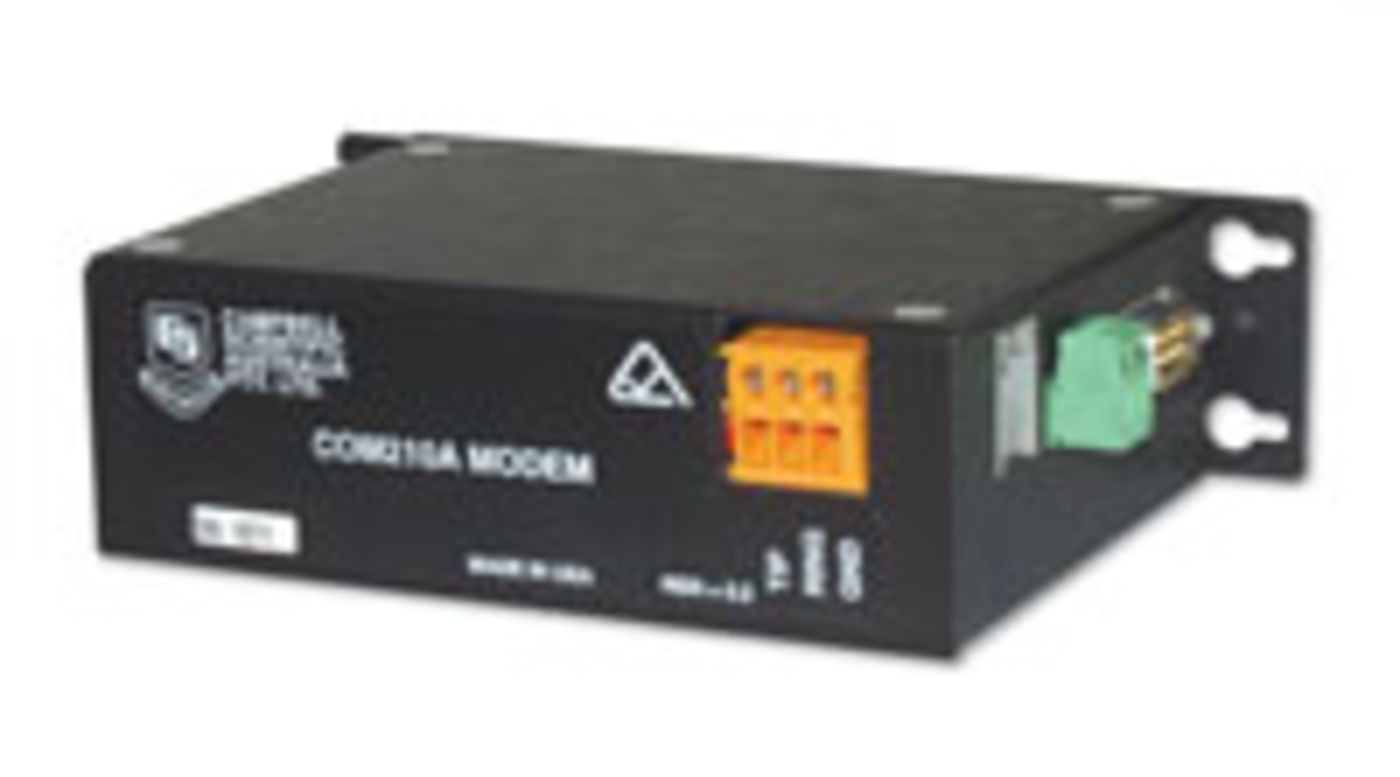

The COM210A enabled communications between a computer and a Campbell data logger via an Australian public switched telephone network. A Hayes-compatible modem was required at the base-station computer while a COM210A was connected to the data logger at the field site. The COM210A's wide operating temperature range and minimal power requirements made it ideal for use at remote sites.
Technical Description
To get the same functionality as the COM210A, order the -AU option for the COM220.
Note
Historically, the 10704 Power Adapter was available for connecting the COM210A to the CR500 with s/n 1764 or lower, and the CR10 with the silver or 8032 black wiring panel. The adapter applied a constant 12 V to the COM210A's serial I/O. This power adapter is no longer available.
Specifications
- Operating Voltage
- 12 V
- Active Current Drain
- 160 mA
- Quiescent Current Drain
- 120 μA
- Baud Rate
- 1200, 4800, 9600 bps
- Operation
- Full-duplex over standard analog phone lines
- Standard Operating Temperature Range
- -25° to +50°C
- Extended Operating Temperature Range
- -55° to +85°C
- Dimensions
- 16.0 x 4.3 x 9.1 cm
(6.3 x 1.7 x 3.6 in.) with mounts
- Weight
- 272 g
(10 oz)
