COM210
COM210
End of lifeTelephone Modem
Pricing
- Model:
- COM210
- Item Number:
- COM210
- Lead time:
- 21 days
Overview

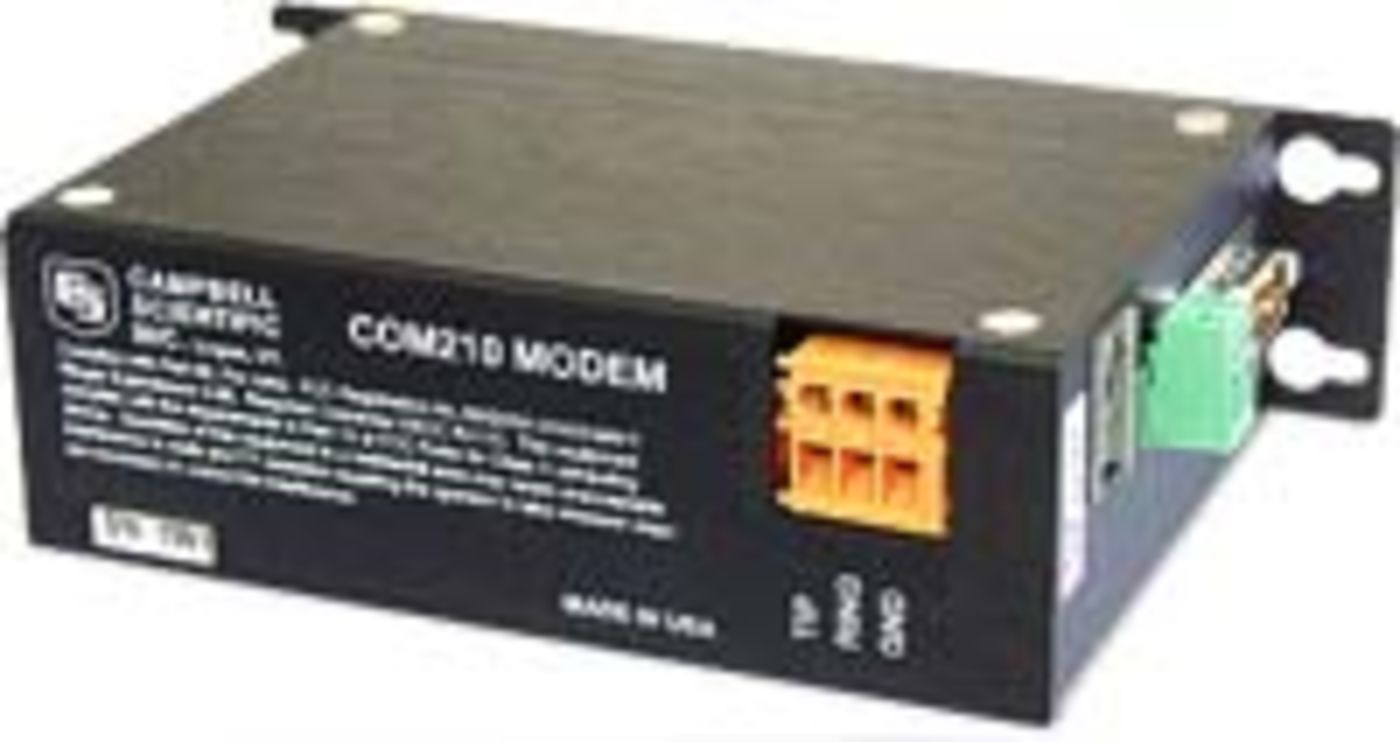

The COM210 modem enabled communications between a computer and a Campbell data logger via a public switched telephone network. A Hayes-compatible modem was required at the base-station computer while a COM210 was connected to the data logger at the field site. The COM210's wide operating temperature range and minimal power requirements made it ideal for use at remote sites.
Technical Description
The COM210 modem enabled communications between a computer and a Campbell data logger via a public switched telephone network. A Hayes-compatible modem was required at the base-station computer while a COM210 was connected to the data logger at the field site. The COM210's wide operating temperature range and minimal power requirements made it ideal for use at remote sites.
Note
Historically, the 10704 Power Adapter was available for connecting the COM210 to the CR500 with s/n 1764 or lower, and the CR10 with the silver or 8032 black wiring panel. The adapter applied a constant 12 V to the COM210's serial I/O. This power adapter is no longer available.
Specifications
- Standards
- Bell 212A, CCITT V.22, V.32bis
- FCC Registration
- B9QUSA-31402-MM-T
- Operating Voltage
- 12 V
- Active Current Drain
- 160 mA
- Quiescent Current Drain
- 120 μA
- Baud Rate
- 1200, 4800, 9600 bps
- Operation
- Full-duplex over standard analog phone lines
- Standard Operating Temperature Range
- -25° to +50°C
- Extended Operating Temperature Range
- -55° to +85°C
- Dimensions
- 16.0 x 4.3 x 9.1 cm
(6.3 x 1.7 x 3.6 in.) with mounts
- Weight
- 272 g
(10 oz)
