COAXMD9-L
MD9 Cable, RG59 with 2 BNC Pin (Male) Connectors
COAXMD9-L
End of lifeConfigurableMD9 Cable, RG59 with 2 BNC Pin (Male) Connectors
Pricing
- Model:
- COAXMD9-L
- Item Number:
- 5293
- Warranty:
- 1 year
- Lead time:
- 21 days
Overview
COAXMD9-L MD9 Cable RG59 w/2 BNC Male Connectors
Effective 1 January 2004, the MD9 Multidrop Interface was generally replaced by the MD485 Multidrop Interface. However, the MD9 and its accessories remain available for customers with existing MD9 networks.

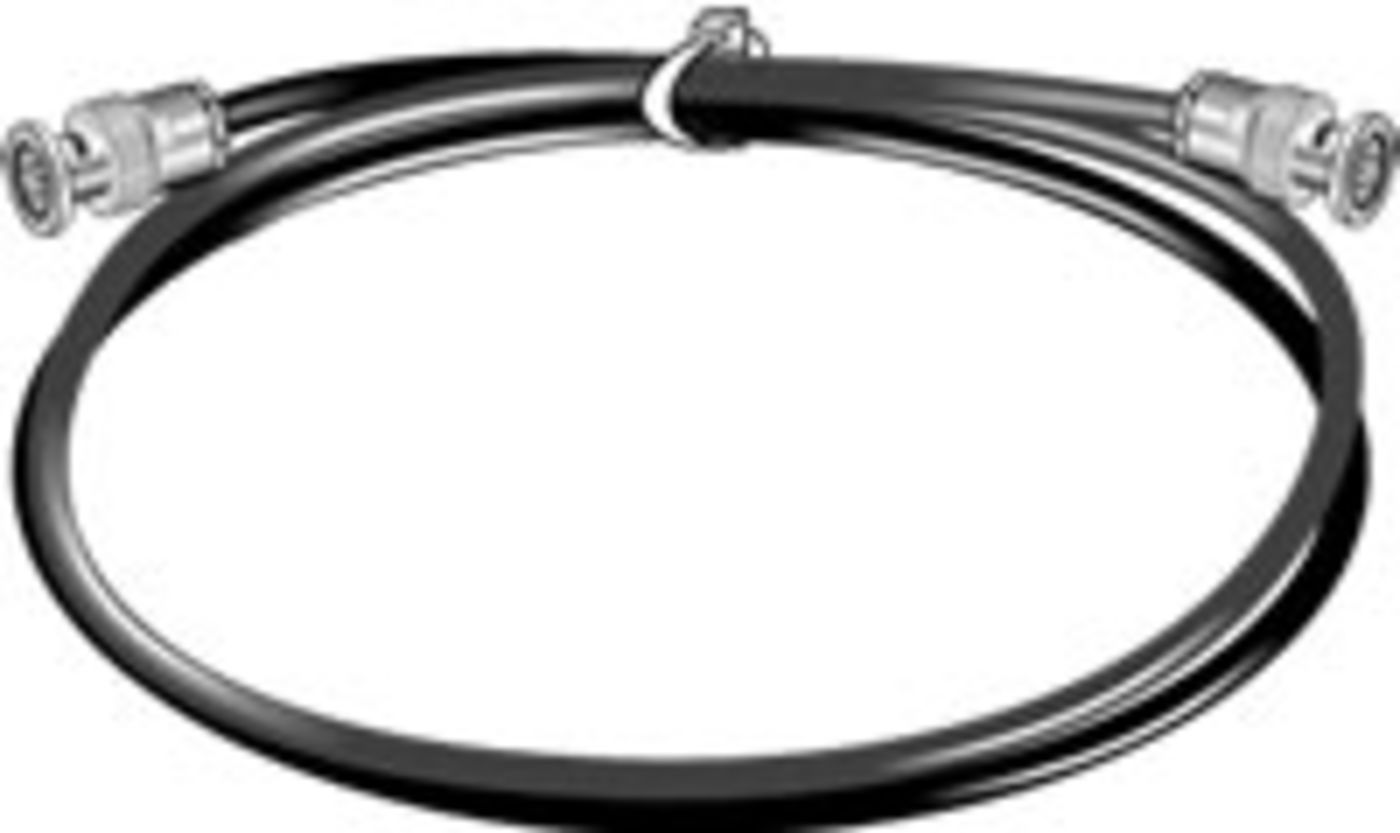

The COAXMD9-L consists of two BNC connectors (pn 6639) joined by an RG59/U cable (pn 5303). This RG59/U coaxial cable (Belden 9100) has a typical attenuation of 0.6 dB/100 ft @ 1 MHz and a characteristic impedence of 75 ohm.
Specifications
- Typical Attenuation
- 0.6 dB/100 ft
- Impedance
- 75 ohm
