LMR195 Antenna Cable with Type N Pin (Male) and TNC Pin (Male) Connectors
COAX3NT
OrderableConfigurableGSALMR195 Antenna Cable with Type N Pin (Male) and TNC Pin (Male) Connectors
Pricing
Configuration
Sign in for option pricing- COAX3NT-L AAntenna Cable LMR195 w/Type N Male & TNC Male Con w/3m per SensorCOAX3NT-3m
- COAX3NT-L AAntenna Cable LMR195 w/Type N Male & TNC Male Con w/5m per SensorCOAX3NT-5m
- w/10m (33ft) per Cabletors
Select a configuration to add to your quote
- Model:
- COAX3NT
- Item Number:
- 45040
- Warranty:
- 1 year
- Lead time:
- 14 days
Overview
Antenna Cable LMR195 w/Type N Male & TNC Male Connectors (-40 to +85C)**

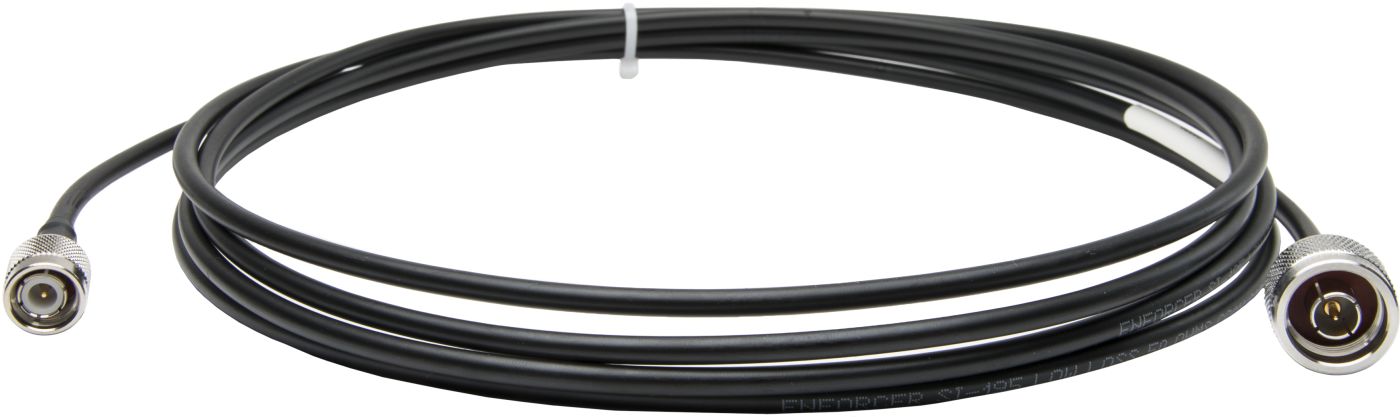

The COAX3NT is an LMR195 coaxial cable fitted with a Type N pin (male) connector on one end and a TNC pin (male) connector on the other end. This cable is commonly used to connect a GPS antenna with TNC connector to an in-line surge suppression, or to connect an antenna with Type N connector directly to a radio with a TNC connector.
Specifications
- Cable Type
- LMR195
- Connector 1
- Type N pin (male)
- Connector 2
- TNC pin (male)
- Operating Temperature Range
- -40° to +85°C
- Impedance
- 50 ohm
- Attenuation
- 14.6 db/100 m
(4.4 db/100 ft) @ 150 MHz
- Attenuation
- 25.5 db/100 m
(7.8 db/100 ft) @ 450 MHz
- Attenuation
- 36.5 db/100 m
(11.1 db/100 ft) @ 900 MHz
- Attenuation
- 62.4 db/100 m
(19.0 db/100 ft) @ 2.4 GHz
- Bend Radius
- 1.27 cm
(0.5 in.)
- Weight
- 0.03 kg/m
(0.021 lb/ft)
