CMP11-L
CMP11-L
End of lifeConfigurablePyranometer
Pricing
- Model:
- CMP11-L
- Item Number:
- 27061
- Warranty:
- 2 years
- Lead time:
- 14 days
Overview
The CMP11 legacy pyranometer, manufactured by Kipp & Zonen, is an ISO secondary-standard pyranometer that monitors solar radiation for the full solar spectrum range. It connects directly to a Campbell Scientific data logger and is well-suited for meteorological networks and solar-energy research and development. In solar-energy meteorological stations, the CMP11 has been replaced by the CMP10.
Key Advantages
Double glass dome
Technical Description
The CMP11 measures solar radiation with a high-quality blackened thermopile protected by two glass domes. Its flat spectral sensitivity, from 285 to 2800 nm, makes it ideal for applications in natural sunlight, under plant canopies, in green houses or buildings, and inverted to measure reflected solar radiation.
A desiccant-filled drying cartridge prevents dew from forming on the inner sides of the CMP11's domes. Campbell Scientific also offers the CVF4 heater/ventilator that keeps its domes free from ice and dew.
The CMP11 includes a white snap-on sun shield that reduces the sensor's temperature. A bubble level and adjusting leveling screws enable the sensor to be leveled without using a leveling base.
The CMP11 produces a millivolt signal that is measured directly by a Campbell Scientific data logger.
Benefits
- Detector design and faster response make it a step above the CMP6
- Compatible with most Campbell Scientific data loggers
- Integrated bubble level is visible without removing sun shield
- Desiccant-filled drying cartridge prevents dew from forming on the inner sides of the domes
- Compatible with the CVF4 heater/ventilator that keeps the domes free from ice and dew
- Measures reflected solar radiation when inverted
- Provides measurements in direct sunlight, under plant canopies, when the sky is cloudy, and in artificial light
Specifications
- Sensor
- High-quality blackened thermopile protected by two glass domes
- Measurement Description
- Monitors solar radiation for the full solar spectrum range
- ISO Classification
- Class A (secondary standard)
- Spectral Range
- 285 to 2800 nm
- Sensitivity
- 7 to 14 µV/W/m2
- Temperature Dependence of Sensitivity
- < 1%
(-10° to +40°C)
- Response Time
- < 5 s
(95% of final value)
- Zero Offset Due to Thermal Radiation
- < 7 W/m2
(200 W/m2)
- Non-Stability
- < 0.5%
(change/year)
- Non-Linearity
- < 0.2%
(0 to 1000 W/m2)
- Directional Error
- < 10 W/m2
(up to 80° with 1000 W/m2 beam)
- Tilt Error
- < 0.2%
- Level Accuracy
- 0.1°
- Impedance
- 10 to 100 Ω
- Operating Temperature Range
- -40° to +80°C
- Typical Signal Output
- 0 to 15 mV
(for atmospheric applications)
- Maximum Irradiance
- 4000 W/m2
- Expected Daily Uncertainty
- < 2%
- Dome Diameter
- 5 cm
(2 in.)
- Width
- 15 cm
(5.9 in.) with shield
- Height
- 9.25 cm
(3.64 in.)
- Weight
- 0.9 kg
(2 lb) with 10.1 m (33 ft) cable
Accessories
(8)CM256
Adjustable Plane and Angle Solar Mounting Stand
OrderableCVF4
Ventilation Unit for Pyranometers
OrderableCM255LS
Adjustable-Angle Solar Sensor Mounting Stand with Leveling Screws
End of lifeCM260
Adjustable Solar Sensor Mounting Kit for ATI Torque Tube
RetiredCM265
Adjustable Solar Sensor Mounting Kit for Circular Torque Tubes
RetiredCM261
Single-Axis Tracker Mounting Stand
OrderableCM275
Albedometer Mounting Kit
Orderable39112
DIN Rail Terminal Kit with 1 Terminal and 3 Wires
Orderable
Related Resources

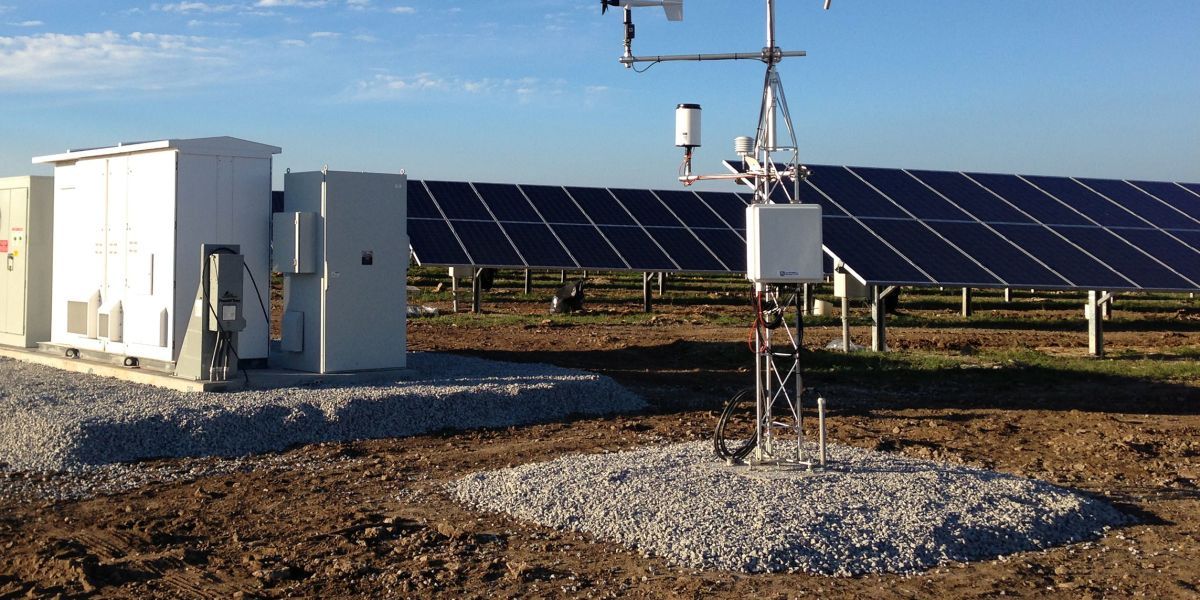

Case Studies
