CM400
Pile Mount Tower with 6 ft Crossarm
CM400
OrderablePile Mount Tower with 6 ft Crossarm
Overview
CM400 Pile Mount Tower w/1.8m (6ft) Crossarm & Mounting Hardware
The CM400 is an ideal mount to secure a SunSentry Solar Operational Meteorological Monitoring Station to a driven pile. The included 20.32 cm (8.0 in.) hook bolts accommodate an I-beam style pile with flange dimensions 7.6 to 17.8 cm (3 to 7 in.), such as a W6x12. Installation details, including the recommended pile exposure height and orientation, are found in the SunSentry Installation Guide.

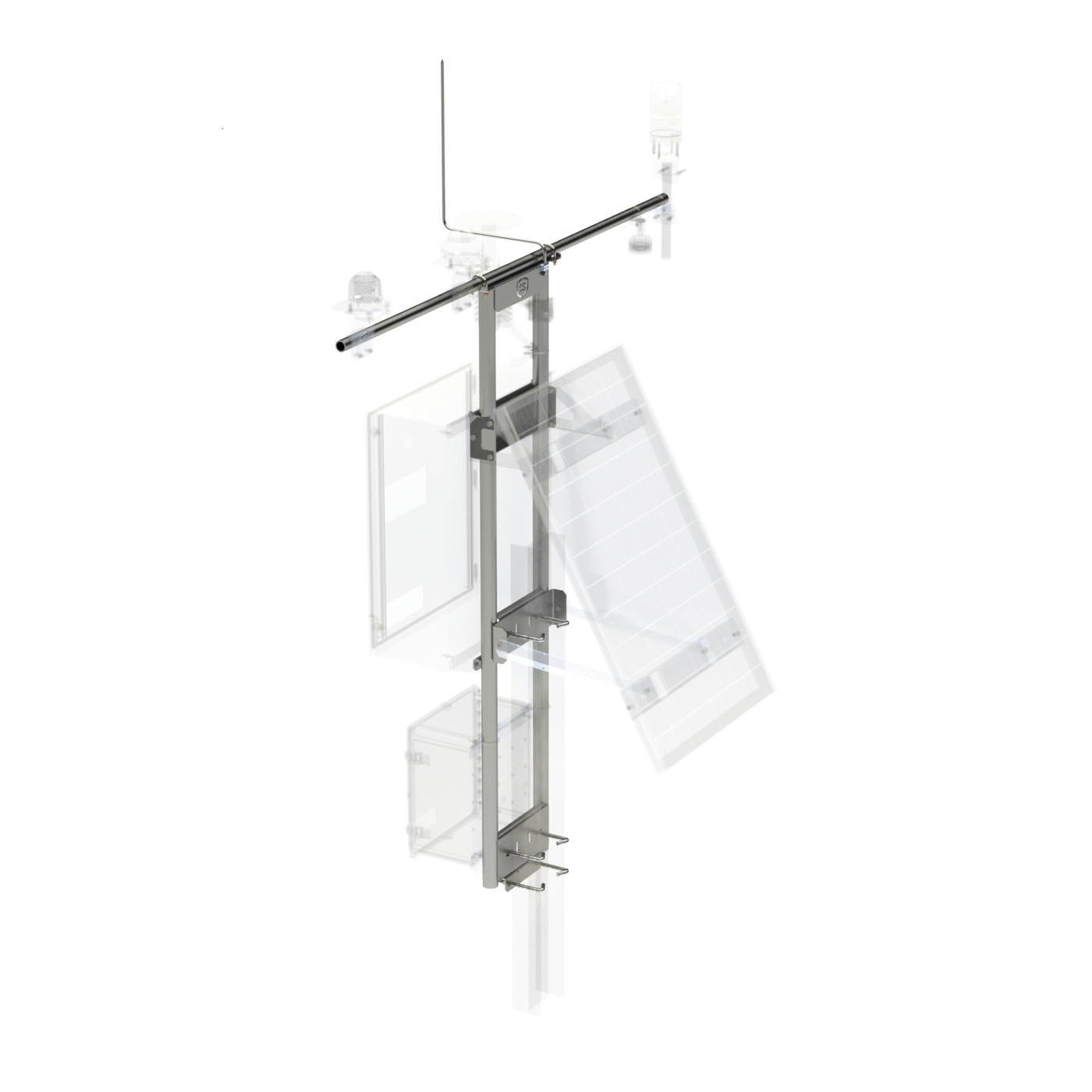

Note: In the images, the darkened components are included with the CM400.
Specifications
- -NOTE-
- The wind area is calculated using a fully loaded SunSentry Solar Operational Meteorological Monitoring Station mounted to the CM400.
- Maximum Wind Rating
- 209.21 kph
(130 mph)
- Material
- Aluminum
(structure)
- Material
- Galvanized steel, stainless steel
(hardware)
- Top Crossarm
- 1 in. NPS aluminum pipe
(1.315 in. OD)
- Vertical Masts
- 1.5 in. NPS aluminum pipe
(1.9 in. OD)
- Width
- 1.8 m (6 ft) assembled
- Width
- 0.4 m (1.4 ft) shipped
- Height
- 2.5 m (8.2 ft) with lightning rod
- Height
- 1.9 m (6.2 ft) shipped
- Depth
- 0.13 m (0.42 ft) shipped
- Weight
- 10.8 kg
(23.9 lb)
