CM202SS
2 ft Stainless-Steel Crossarm with One CM210 Mounting Kit
CM202SS
Orderable2 ft Stainless-Steel Crossarm with One CM210 Mounting Kit
Overview
CM202SS Stainless Steel Sensor Crossarm w/one CM210 Mounting Kit, 0.6m (2ft)

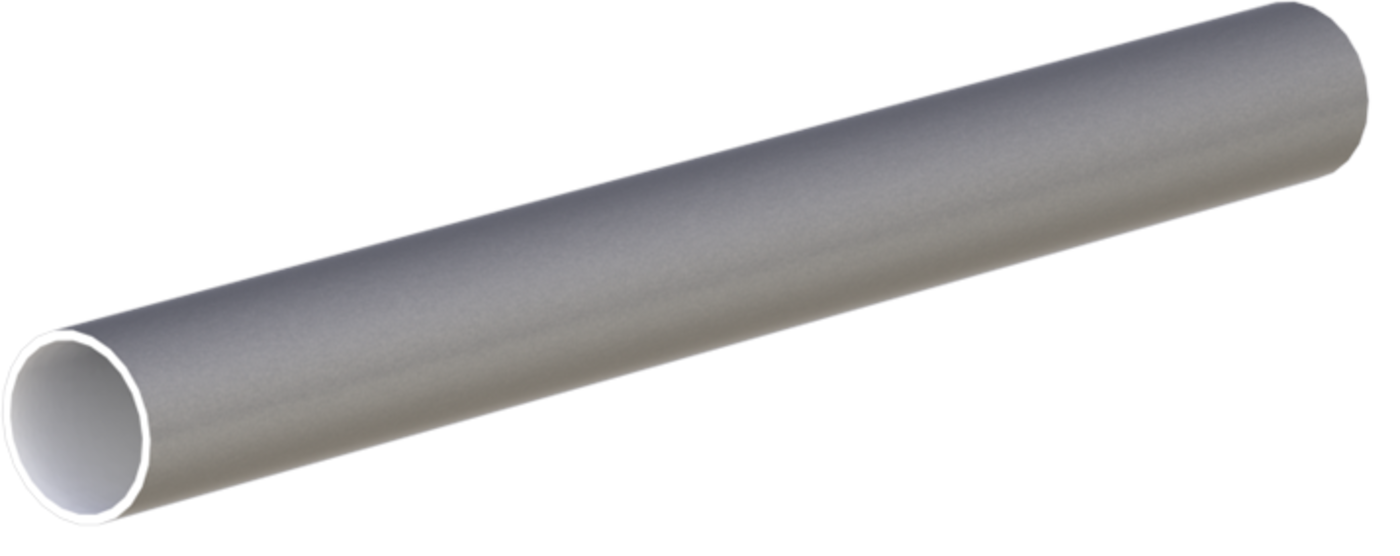

The CM202SS is a stainless-steel crossarm that has a 2 ft length. It is typically used with the LW110 to mount the 05103 Wind Monitor.
Technical Description
The CM202SS provides a rugged, weather-resistant sensor mount for one sensor (typically). It consists of a 2 ft stainless-steel pipe and mounting bracket kit. U-bolts included with the mounting bracket are used to attach the crossarm to a tripod mast or CM500-series pole.
A U-bolt mounting scheme allows the crossarm to be secured to the tripod or tower at the optimal measurement height for the sensor. The sensor is then mounted to the other end of the crossarm using a variety of mounts—depending on the sensor being deployed.
Specifications
- Mounting Material
- 304 stainless-steel bracket with stainless-steel U-bolts and hardware
- Crossarm Material
- Stainless-steel pipe
- Pipe Outer Diameter
- 3.175 cm
(1.25 in.)
- Pipe Length
- 0.6 m
(2 ft)
- Weight
- 1.8 kg
(4 lb)
