CM10
CM10
End of life10-foot Galvanized-Steel Instrument Tripod
Pricing
- Model:
- CM10
- Item Number:
- 2031
- Warranty:
- 1 year
- Lead time:
- 21 days
Overview

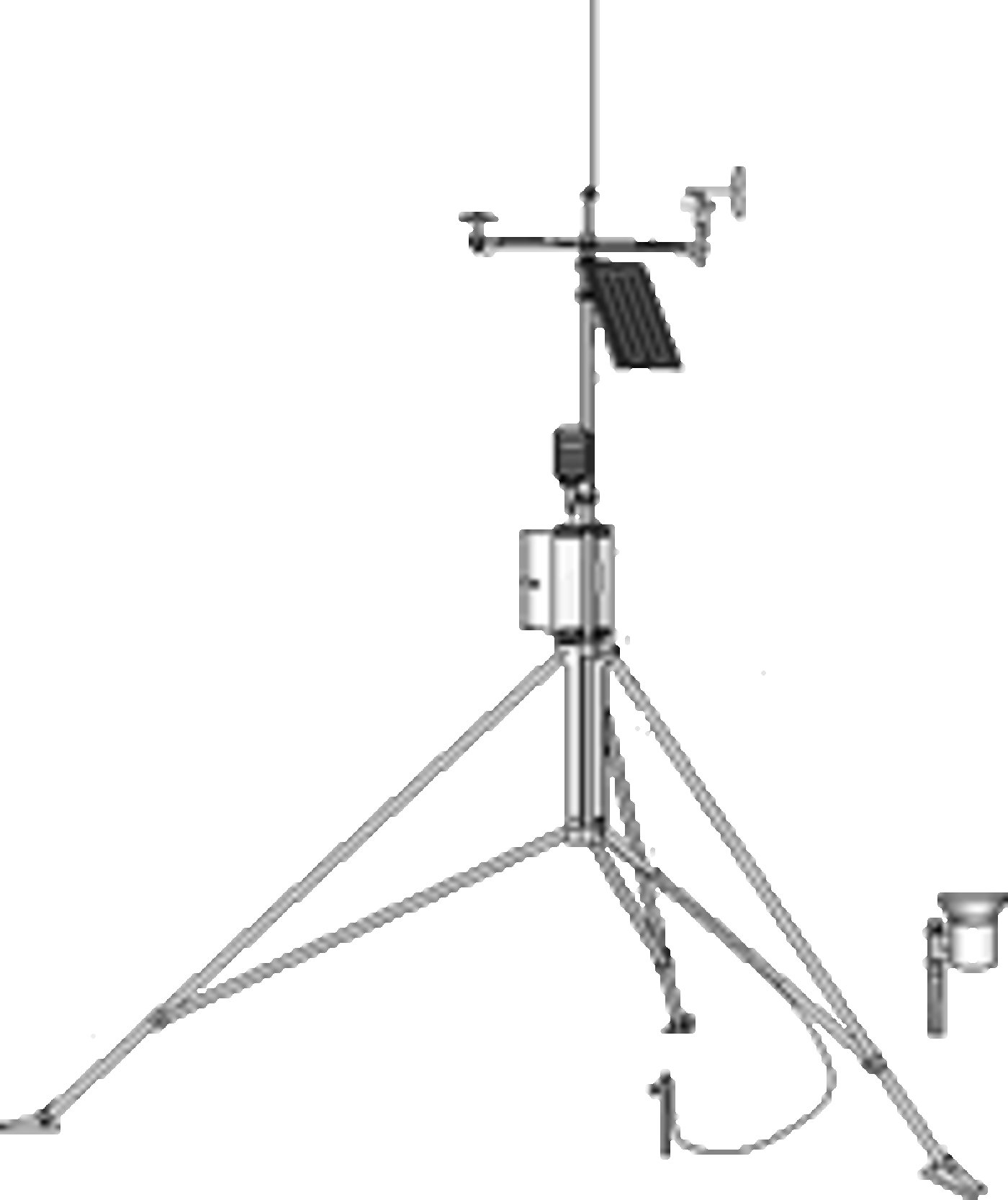

The CM10 is a galvanized-steel tripod that provides measurement heights up to 10 feet (3 meters) and support for attached sensors and mounts, solar panels, and environmental enclosures. The tripod legs are individually adjustable allowing adjustment of our wind set's measurement height, and tripod installation over uneven terrain.
Technical Description
Constructed out of corrosion-resistant galvanized steel, the CM10 provides measurement heights of up to 10 ft (3 m). This general purpose instrument mount supports the attachment of sensors and mounts, solar panels, and environmental enclosures. Individually adjustable legs allow installation over uneven terrain. The CM10 includes lightning and grounding rods, grounding cables, grounding cable clamps, ground stakes, and UV-resistant cable ties. An optional guy kit to improve the CM10’s wind load rating is also available.
Benefits
- Support for meteorological sensors, hydrological sensors, sensor mounts, solar panels, environmental enclosures
- Portable instrument mount
- Lightning and grounding rods, grounding cables, grounding cable clamps, ground stakes, and UV-resistant cable ties included
Specifications
- Vertical Load Limit
- 45 kg
(100 lb)
- Mast
- 1.25 IPS
(1.66 outer diameter)
- Leveling Adjustment
- Slide collars on each leg adjust individually.
- Portability
- Collapsible to 1.83-m length by 22.86-cm diameter
(6-ft length by 9-in. diameter)
- Leg Base
- 5.08 x 12.7 cm with 1.27-cm hole for ground stake
(2 x 5 in. with 0.5-in. hole for ground stake)
Wind Load Recommendation
- Sustained Wind Tolerance
- 112.7 kph
(70 mph) unguyed
- Sustained Wind Tolerance
- 193.1 kph
(120 mph) guyed
- Gust Tolerance
- 160.9 kph
(100 mph) unguyed
- Gust Tolerance
- 241.4 kph
(150 mph) guyed
