CHP1-L

Pyrheliometer
CHP1-L

CHP1-L

RetiredConfigurable

Pyrheliometer

Pricing

Sign in for pricing

Configuration

Sign in for option pricing

Select a configuration to add to your quote

Model:
CHP1-L
Item Number:
27064
Warranty:
2 years
Lead time:
14 days

Overview

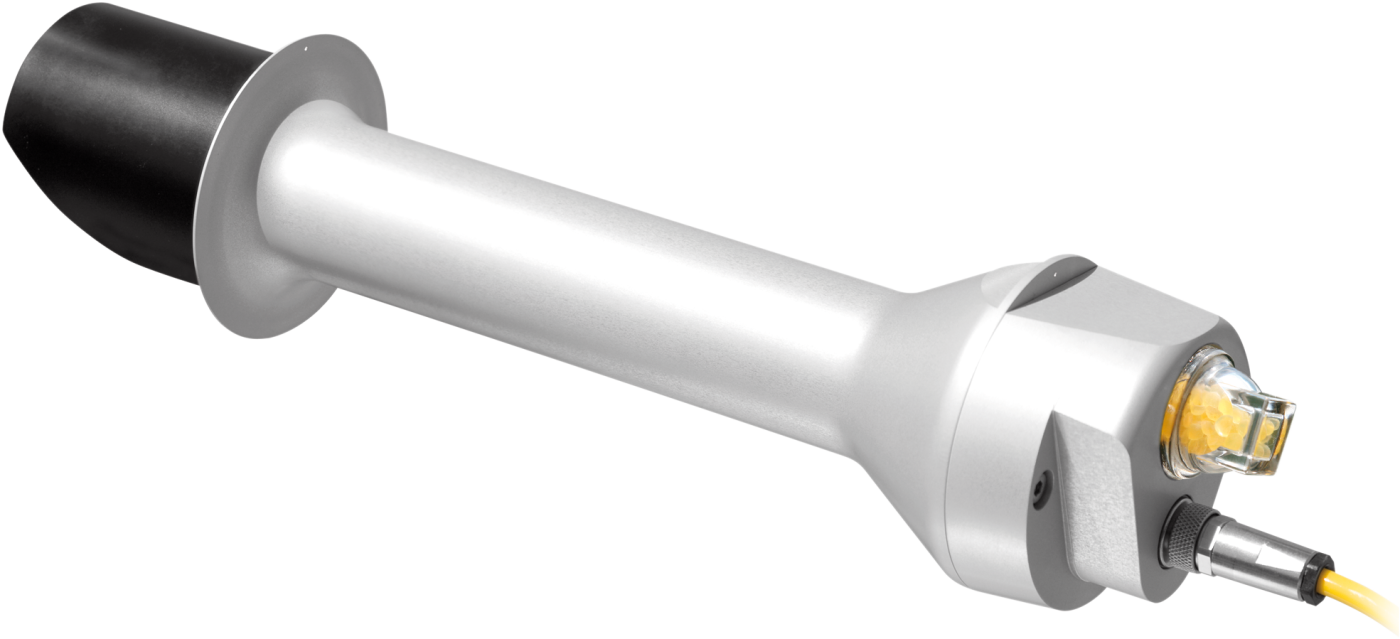

CHP1-L KIPP & ZONEN PYRHELIOMETER

The CHP1-L, manufactured by Kipp & Zonen and cabled by Campbell Scientific, is a pyrheliometer used for unattended direct solar-radiation measurements. It is designed specifically to measure the direct beam solar irradiance with a field of view limited to 5 degrees. This is achieved by the shape of the collimation tube, precision apertures, and the detector design.

Key Advantages

For Unattended Direct Solar-Radiation Measurements

Technical Description

To monitor direct normal irradiance, a CHP1 Pyrheliometer is mounted to a user-supplied sun tracker such as Kipp & Zonen's Solys2. The CHP1 pyrheliometer measures the direct-beam solar irradiance with a field of view limited to 5 degrees. The limited field of view requires the CHP1 to be continuously pointed toward the sun. The Solys2 Sun Tracker rotates on two axes and uses a GPS receiver to keep the CHP1 aimed at the sun throughout the day.

Benefits

  • ISO First Class
  • Built-in temperature sensors

Specifications

Sensor
Pyrheliometer
Measurement Description
Measures the direct beam solar irradiance with a field of view limited to 5 degrees
Spectral Range
200 to 4000 nm
Sensitivity
7 to 14 µV/W/m2
Response Time
< 5 s
Zero Offset B
< 1 W/m2
Temperature Dependence of Sensitivity
< 0.5%

(-20° to +50°C)

Field of View (FOV)
5° ±0.2°
Operating Temperature Range
-40° to +80°C
Non-Linearity
< 0.2%
Maximum Irradiance
4000 W/m2
International Standards
First Class ISO
Body Diameter
3.8 cm

(1.5 in.)

Base Diameter
7.6 cm

(3.0 in.)

Length
31.6 cm

(12.4 in.)

Weight
0.9 kg

(1.98 lb) excluding cable

Related Resources

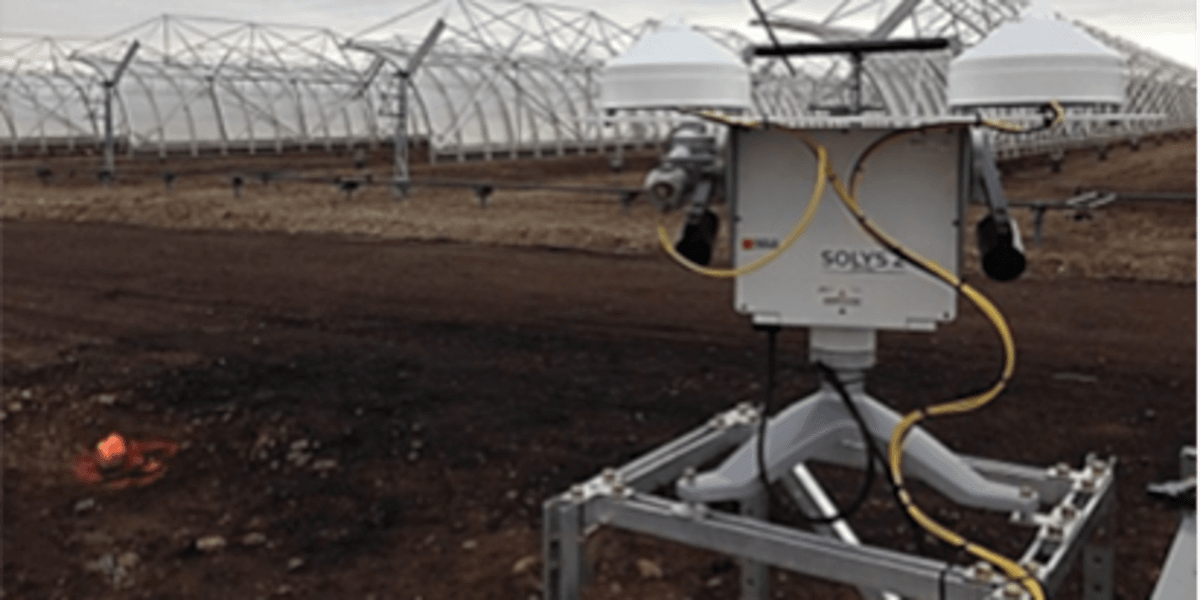

Case Studies
