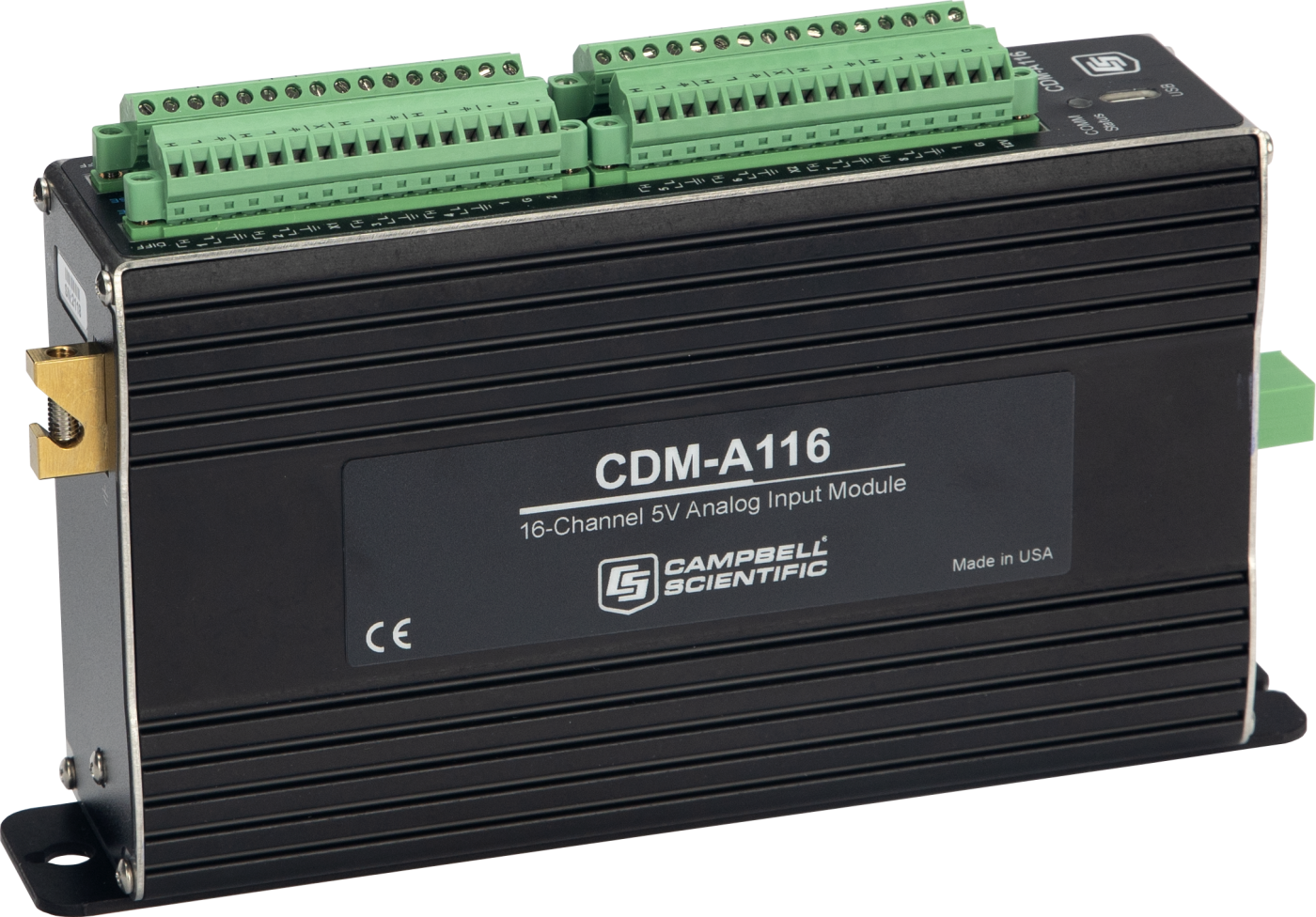

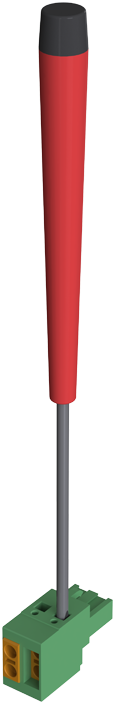

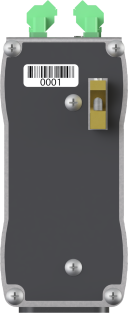

CDM-A116
CDM-A116
RetiredConfigurable16-Channel 5 V Analog Input Module
Pricing
Pricing temporarily unavailable.
- Model:
- CDM-A116
- Item Number:
- 29382
- Warranty:
- 1 year
- Lead time:
- 30 days
Overview
The CDM-A116 is an analog input module that allows you to easily expand your Campbell Scientific data logging system. The CDM-A116 features a 24-bit, analog-to-digital converter and a low-noise, analog front-end to provide you with superior analog measurements. This module also supports period average measurements and includes both current and voltage excitation channels.
The CDM-A116 has 16 differential inputs and four excitation channels. It provides two 12 V ports and two switched 12 V ports for powering your peripherals, as well as four switched 5 V ports for peripheral control.
Key Advantages
Greatly increases sensor capacity
Technical Description
The CDM-A116 offers 24-bit sigma-delta Adc with 16 user programmable notch frequencies from 30,000 Hz to 2.5 Hz, including 50 and 60 Hz. Previous generations of data loggers could notch out 50 or 60 Hz.
Benefits
- Ability to make simultaneous measurements
- CANbus 2.0A/2.0B capable; contact Campbell Scientific for details
Specifications
- -NOTE-
- Additional specifications are listed in the CDM-A108 and CDM-A116 brochure.
- Mounting
- Standard 1-in. grid
(DIN rail mounting available)
- Operating Temperature
- -40° to +70°C
(standard)
- Operating Temperature
- -55° to +85°C
(extended)

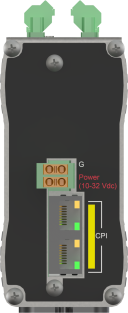

- Power Requirements
- 9.6 to 32 Vdc voltage
- Estimated Accuracy
- ±(0.04% of reading + offset)
0° to 40°C
- Estimated Accuracy
- ±(0.06% of reading + offset)
-40° to +70°C
- Estimated Accuracy
- ±(0.08% of reading + offset)
-55° to +85°C
- Number of Channels
- 16 differential or 32 single-ended inputs
- Analog Inputs
- 32 single-ended or 16 differential
(with ±5000 mV, ±1000 mV, ±200 mV ranges 24 bit ADC)
- Maximum Multiplexed Sample Rate
- 3.0 kHz
(using fast [100 μs] input setting)
- Maximum Burst Sample Rate
- 30 kHz
- Input Range
- ±5000 mV, ±1000 mV, and ±200 mV
- Period Averaging
- Traditional period averaging on analog input channels
- CPI
- For data logger connection. Baud rate selectable from 50 kbps to 1 Mbps.
(Allowable cable length varies depending on baud rate, number of nodes, cable quality, and noise environment, but can be as long as 700 m under proper conditions.)
- USB
- USB 2.0 full speed connection available for attaching to a PC.
(Port is used to configure the module and download updates via our Device Configuration Utility.)
- Warranty
- One year against defects in materials and workmanship
- Dimensions
- 20.3 x 12.7 x 5.1 cm
(8 x 5 x 2 in.)
- Weight
- 0.9 kg
(1.95 lb)
Typical Current Drain
- Sleep
- <1 mA
- Active 1 Hz Scan
- 2 mA
(estimated)
Assumes one single-ended measurement with the first notch frequency (fN1) at 30 kHz - Active 20 Hz Scan
- 20 mA
Assumes one single-ended measurement with the first notch frequency (fN1) at 30 kHz
Voltage/Current Excitation Outputs
- Voltage Excitation
- ±5 V
(@ 50 mA)
- Current Excitation
- ±2.5 mA
(±5 V compliance voltage)
- Number of Voltage/Current Excitation Outputs
- 4
General Purpose Outputs
- Number of SW5V Outputs
- 4
- SW5V Output Resistance
- 30 Ω
- Number of SW12V Outputs
- 2
- Typical Limit of SW12V Outputs
- 200 mA
- Minimum Limit of SW12V Outputs
- 180 mA
- Number of 12V Outputs
- 2
- Typical Limit of 12V Outputs
- 200 mA
- Minimum Limit of 12V Outputs
- 180 mA
