CD620
CD620
End of lifeDisplay for the Hydrosense® System
Pricing
- Model:
- CD620
- Item Number:
- 12212
- Warranty:
- 1 year
- Lead time:
- 21 days
Overview

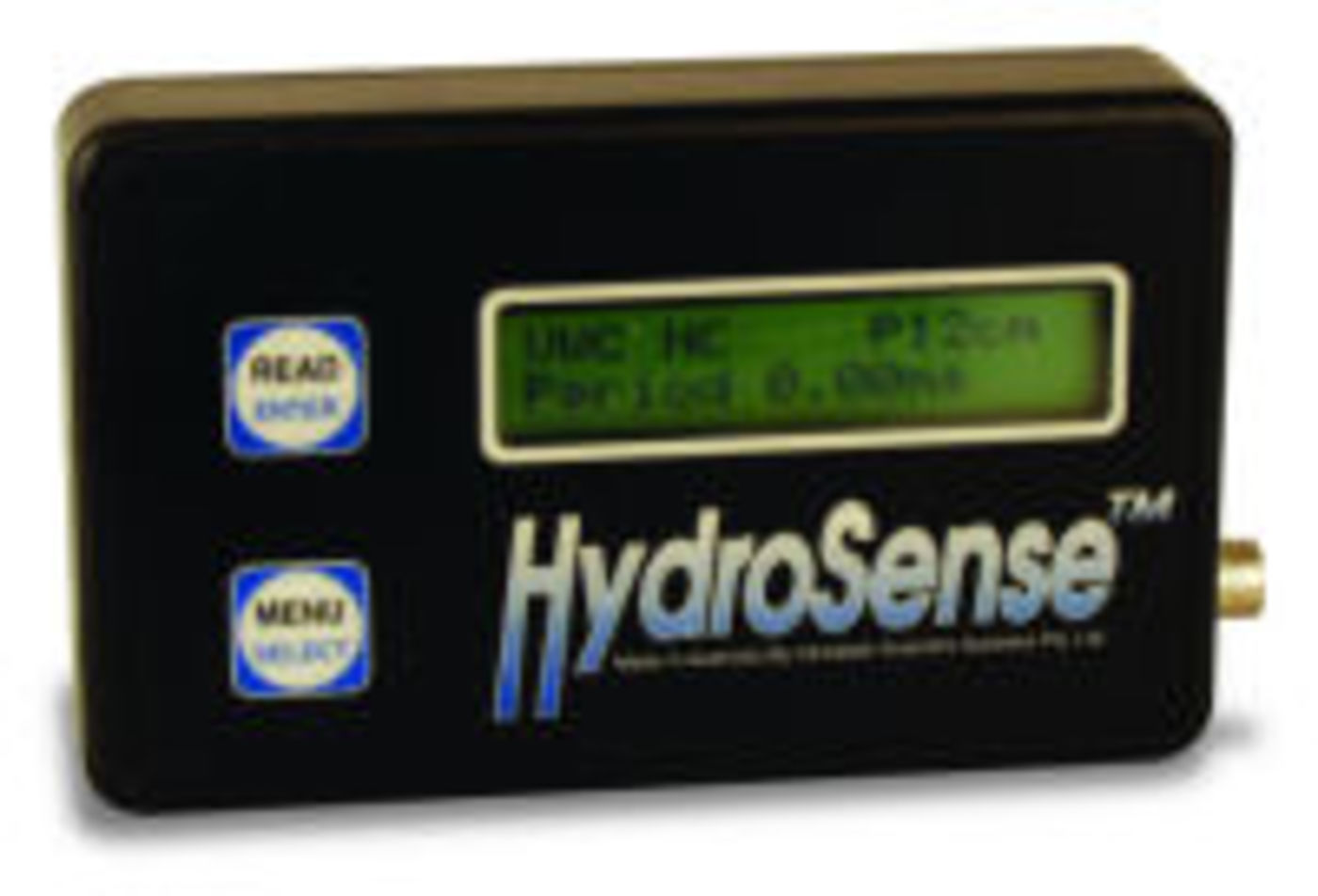

The CD620 is the display used in the Hydrosense System. It is a splash-proof unit that includes two integral membrane buttons used to operate the system, and a 16-character, two-line LCD display. The CD620 allow you to measure soil-water content in the field and see the data in real time.
Technical Description
The CD620 is the display used in the Hydrosense System. It provides a 16-character, two-line LCD and two integral membrane buttons for operating the system. The CD620 displays values that indicate either percent volumetric water content or water deficit (as compared to a previously measured reference value).
A complete HydroSense® system consists of the CD620 display, a CS620 sensor (purchased separately), and two probe rods (purchased separately).
Benefits
- Compact and lightweight
- Read real-time soil-water content measurements in the field
Specifications
- Measurement Parameter
- Volumetric Water Content (%), Water Deficit (mm)
- Housing
- Splash resistant
- Display
- 16-character, two-line LCD
- Keypad
- Two-button membrane
- Power
- 3 Vdc supplied by two AAA alkaline batteries
- Battery Life
- ~12 months
(typical usage)
- Reading Time
- < 50 ms
- Dimensions
- 12.0 x 7.3 x 2.4 cm
(4.7 x 2.9 x 0.9 in.)
- Weight
- 160 g
(7 oz) with batteries
