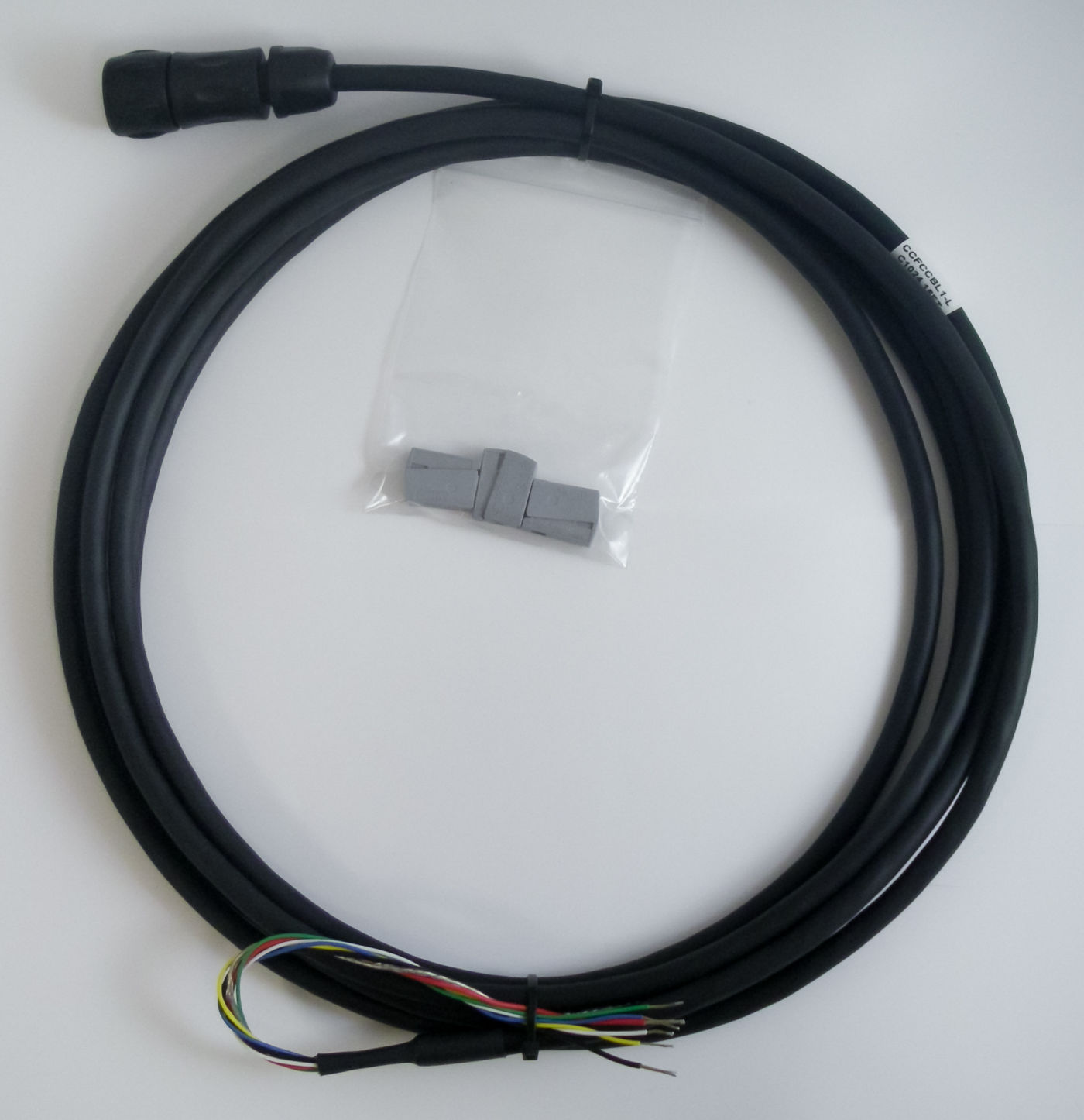

CCFCCBL1
CCFC Power and I/O Cable
CCFCCBL1
OrderableConfigurableGSACCFC Power and I/O Cable
Pricing
Configuration
Sign in for option pricing- w/3m (10ft) per Cable -PF w/ Ferrules on WiresCCFCCBL1-3m
- w/5m (17ft) per Cable -PF w/ Ferrules on WiresCCFCCBL1-5m
- w/10m (33ft) per Cable -PF w/ Ferrules on WiresCCFCCBL1-10m
- w/15m (50ft) per Cable -PF w/ Ferrules on WiresCCFCCBL1-15m
Select a configuration to add to your quote
- Model:
- CCFCCBL1
- Item Number:
- 45031
- Warranty:
- 1 year
- Lead time:
- 14 days
Overview
CCFC Power & I/O Cable**
The CCFCCBL1 cable connects the CCFC camera to a power supply and is required to use the camera. This cable can also connect the CCFC camera to a data logger COM port, PC, or Serial Communications Interface (RS-232 or RS-485).
Technical Description
The CCFC can be configured by a smart-device (cell phone, tablet, PC) using Wi-Fi or by a PC with a hardwired connection via the CCFCCBL1 and included L28840 DB9F to Terminal Block Adaptor.
Configuration is accomplished via the onboard user interface or via the Campbell Scientific Device Configuration (DevConfig) Utility.
Specifications
- Cable Type
- 20 AWG 1-pair, 24 AWG 2-pair (6 conductor) shielded cable with Santoprene jacket
- Connector
- IP-68 rated connector
(6-pin)
- Maximum Length
- 20 m
(65 ft)
