CABLE6PIN
26 AWG Six-Conductor Cable with M8 Six-Pin V-Coded Pin (Male) Connector
CABLE6PIN
OrderableConfigurable26 AWG Six-Conductor Cable with M8 Six-Pin V-Coded Pin (Male) Connector
Pricing
Configuration
Sign in for option pricing- w/3m (10ft) per Cableonnector
- w/5m (17ft) per Cableonnector
- w/10m (33ft) per Cableonnector
- w/15m (50ft) per Cableonnector
Select a configuration to add to your quote
- Model:
- CABLE6PIN
- Item Number:
- 45337
- Warranty:
- 2 years
- Lead time:
- 21 days
Overview

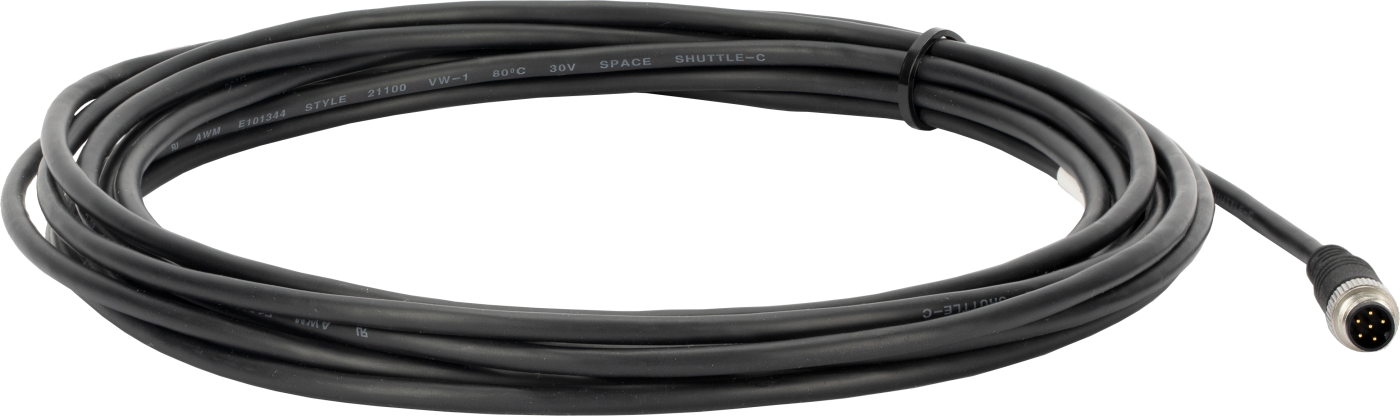

26 AWG Six-Conductor Cable with M8 Six-Pin V-Coded Pin (Male) Connector
The CABLE6PIN is a cable assembly with an M8 six-pin V-coded connector on one end and flying leads on the other end. All six pins and the shield are presented as flying leads with ferrules. The six-pin connector is weatherproof and suitable for harsh environmental conditions.
Specifications
- Termination 1
- M8, six-pin, V-coded, stainless steel, IP67-rated
- Termination 2
- Flying leads with crimp ferrules
- Cable
- 26 AWG conductors with polypropylene insulation, three-twisted pair with drain, Santoprene jacket, rated 30 V, -40° to +80°C
