Retired7 Ah 12 V Alkaline Battery Pack with Backup Pack
Pricing
- Model:
- BPALK
- Item Number:
- 8781
- Warranty:
- 1 year
- Lead time:
- 7 days
Overview
You can use the BPALK alkaline battery pack to power your CR800, CR850, CR1000X, or CR3000 dataloggers, and their peripherals. You can also use it as a separate auxiliary 12 V power supply to power remotely located sensors or peripherals. The system must have a common ground.

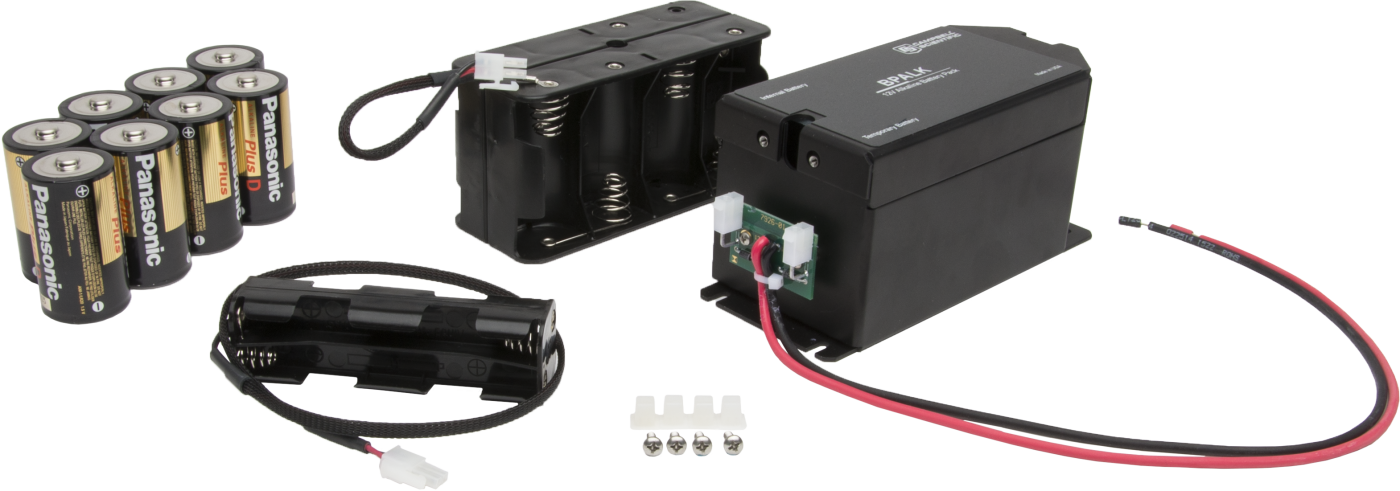

The BPALK consists of eight replaceable D-cell alkaline batteries, battery connectors, and a temporary 12 V AA alkaline battery pack used during D cell replacement. The temporary battery pack requires eight AA-cell batteries (not included).
Key Advantages
Also used as a separate auxiliary supply for remote sensors or peripherals
Technical Description
Alkaline batteries are not rechargeable, and their Amp hour ratings decrease with temperature extremes. Alkaline batteries may leak when used outside the temperature range of -25° to +50°C, or when the battery voltage drops below 9.6 V.
Specifications
- Battery Type
- Alkaline
- Nominal Rating
- 7.5 Ah
(@ 20°C)
- Batteries Needed
- 8 not-rechargeable alkaline D cells
(included)
- Output Voltage
- 12 Vdc
- Operating Temperature Range
- -25° to +50°C
- Dimensions
- 15.2 x 7.4 x 8.0 cm
(6.0 x 2.9 x 3.2 in.) without connectors and mounts
- Dimensions
- 18.1 x 7.4 x 8.0 cm
(7.1 x 2.9 x 3.1 in.) with connectors and mounts
- Weight
- 1.8 kg
(4 lb)
