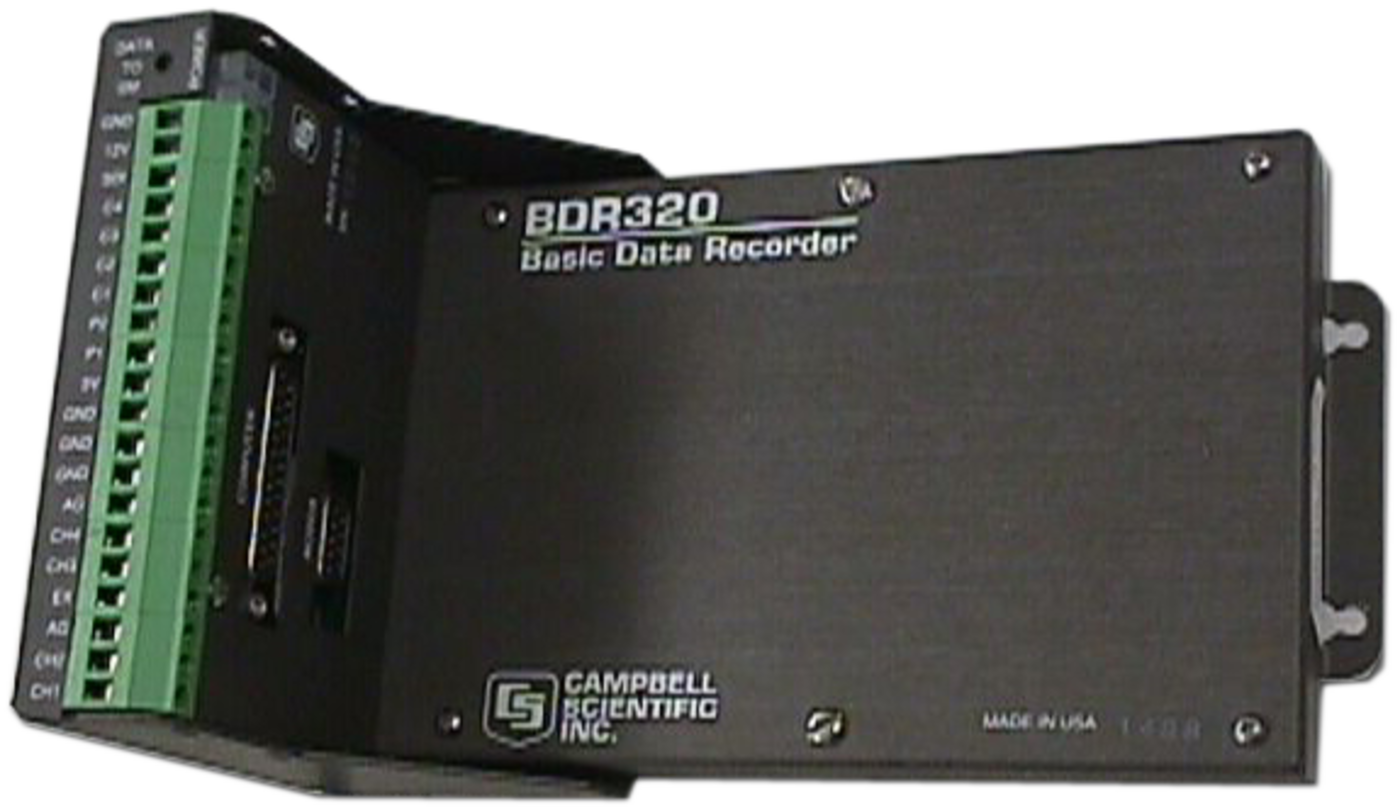

BDR320
BDR320
End of lifeBasic Data Recorder
Pricing
- Model:
- BDR320
- Item Number:
- BDR320
- Lead time:
- 21 days
Overview
The BDR320 had an SDI-12 interface, 2 differential (4 single-ended) analog input channels, 1 switched excitation output, 4 digital control outputs (one continuous), and 2 pulse count channels. Internal memory stored up to 30,000 data points. Data file format was NOT compatible with the CR500, CR10(X), 21X(L), or CR23X dataloggers.
Technical Description
The BDR320 had an SDI-12 interface, 2 differential (4 single-ended) analog input channels, 1 switched excitation output, 4 digital control outputs (one continuous), and 2 pulse count channels. Internal memory stored up to 30,000 data points. Data file format was NOT compatible with the CR500, CR10(X), 21X(L), or CR23X dataloggers.
A fully-equipped BDR320 system included a data logger module and wiring panel, an enclosure (ENC10/12 or ENC12/14), a power supply (alkaline or rechargeable), PC300 BDR Support Software (3.5" diskette), a DB-25F RS-232 interface (7026 or SC25PS serial cable required, ordered separately), and a DB-9F modem connector.
Specifications
- SDI-12 Interface
- 1
- Analog Input Channels
- 2 differential
(4 single-ended)
- Switched Excitation Outputs
- 1
- Digital Control Outputs
- 4
(one continuous)
- Pulse Count Channels
- 2
- Data Storage
- Internal memory stores up to 30,000 data points.
- Operating Temperature Range
- -35° to +55°C
