BDR301
BDR301
End of lifeBasic Data Recorder
Pricing
- Model:
- BDR301
- Item Number:
- BDR301
- Lead time:
- 21 days
Overview

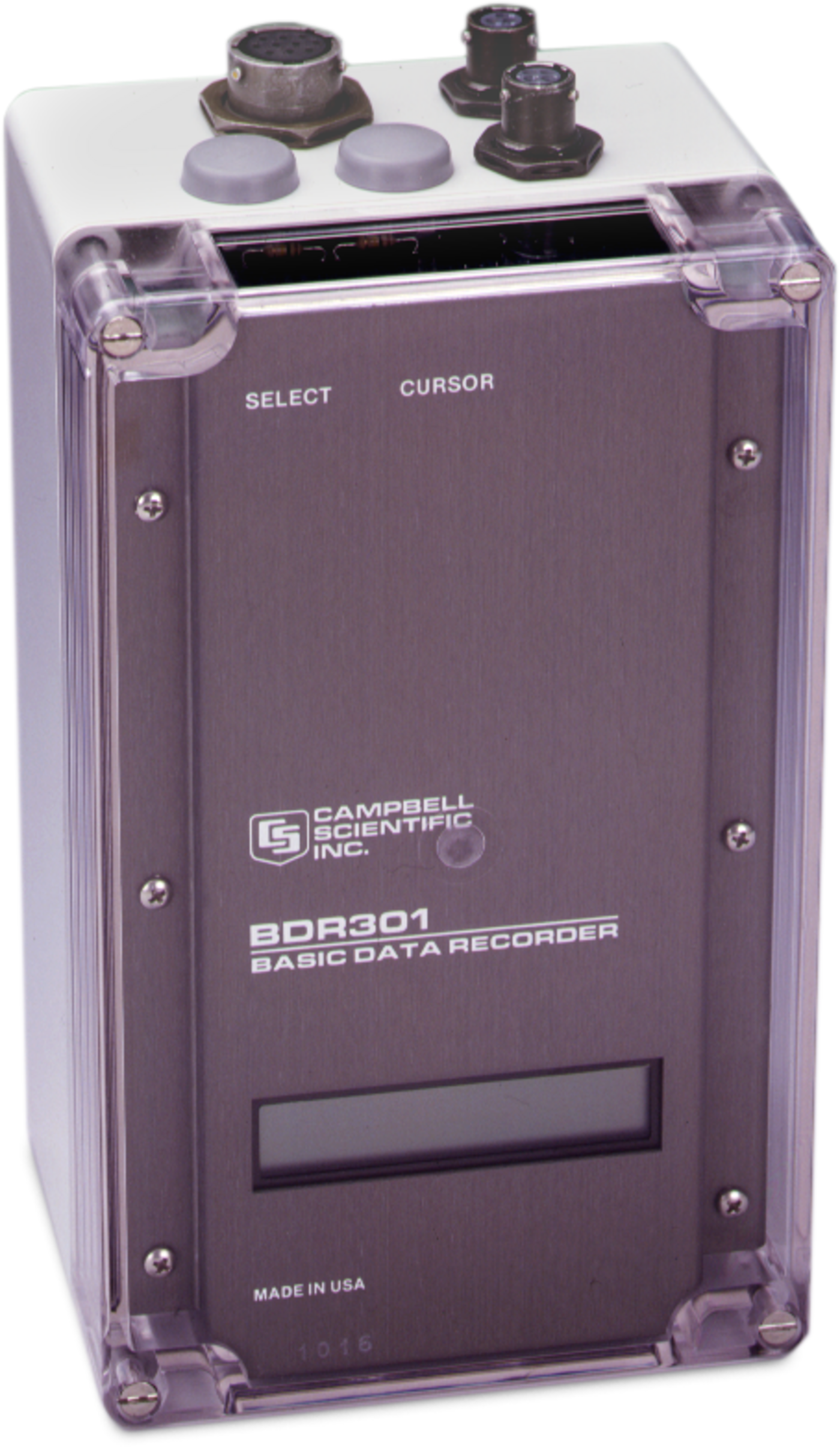

The BDR301 featured an SDI-12 intelligent sensor interface, four single-ended (two differential) analog input channels, one switched excitation, one digital output, and two pulse counting channels. It included a sealed enclosure, 32-character alphanumeric display, and RS-232 interface for connection to laptop computer (only data retrieval method). Software support was provided by PC300. The BDR301 required special connectors. The data file format was not compatible with the CR500, CR510, CR10(X), or 21X files.
The BDR301 was manufactured from 1991 to 1996.
Technical Description
The BDR301 featured an SDI-12 intelligent sensor interface, four single-ended (two differential) analog input channels, one switched excitation, one digital output, and two pulse counting channels. It included a sealed enclosure, 32-character alphanumeric display, and RS-232 interface for connection to laptop computer (only data retrieval method). Software support was provided by PC300. The BDR301 required special connectors. The data file format was not compatible with the CR500, CR510, CR10(X), or 21X files.
Specifications
- SDI-12 intelligent Sensor Interface
- 1
- Analog Input Channels
- Four single-ended
(two differential)
- Switched Excitations
- 1
- Digital Output
- 1
- Pulse Count Channels
- 2
