ARCHER-PCON
ARCHER-PCON
End of lifeField Data-Collection Package
Pricing
- Model:
- ARCHER-PCON
- Item Number:
- 25834
- Lead time:
- 21 days
Overview

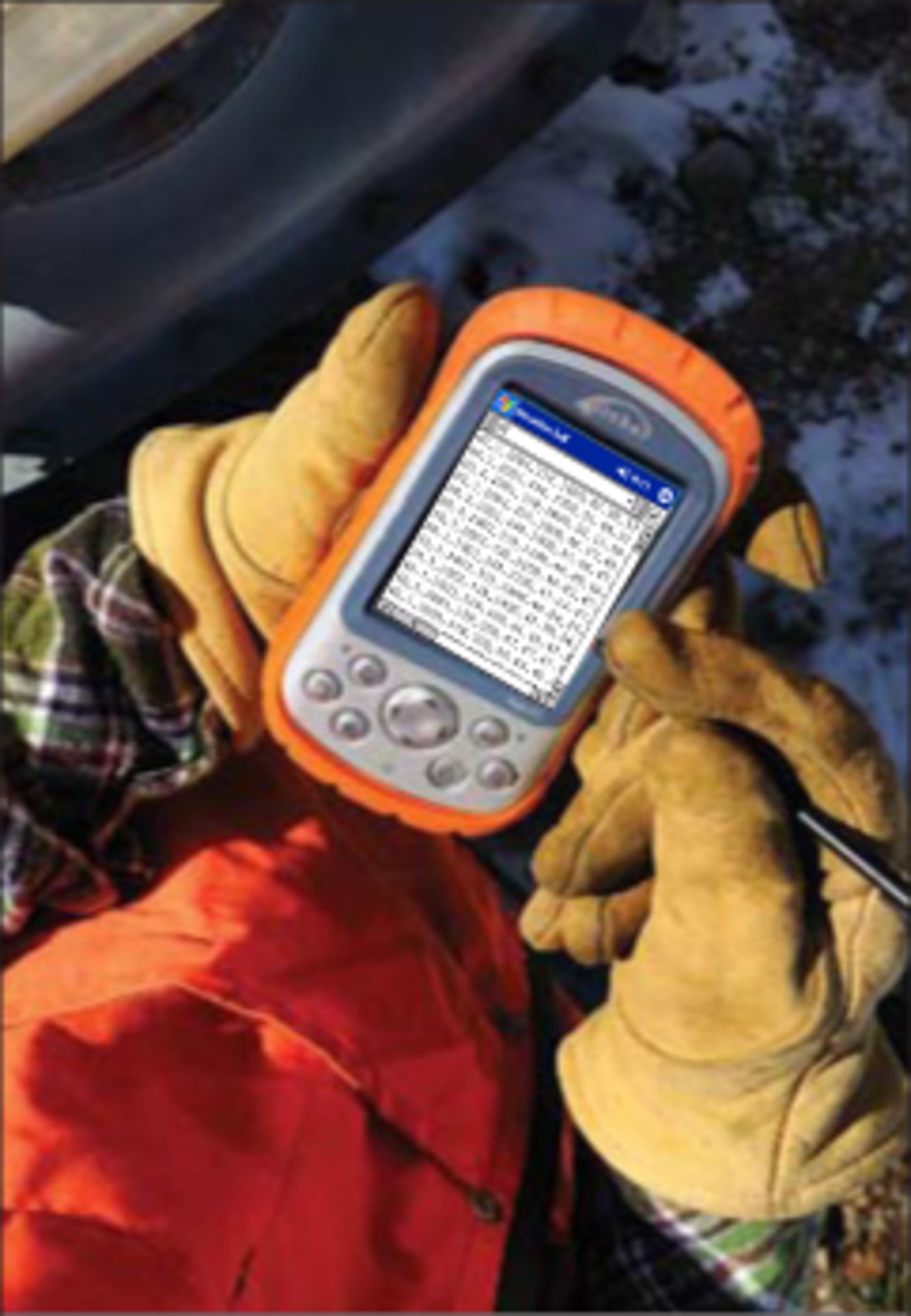

Archer-PCon provides a portable data collection solution for Campbell Scientific data acquisition systems. It consists of Juniper Systems’ Archer Field PC, Campbell Scientific’s PConnectCE Datalogger Support Software, and the hardware required to connect the field PC to a Campbell Scientific data logger.
Key Advantages
Collect and view data, and perform simple datalogger maintenance
Technical Description
The ultrarugged Archer Field PC ensures that your data is safe—even in extreme environments. With an IP67 sealed rating, it is completely sealed against dust and water. And it won’t break down or fail in extreme temperatures—it is made to operate in temperatures as cold as -30°C or as hot as 50°C.
PConnectCE software supports communications between the Archer Field PC and a Campbell Scientific data logger. The software allows you to collect, graph, and display the data logger data; set data logger flags, ports, and clock; and transfer data logger programs.
Archer-PCon Components
- Archer Field PC
- Hand Strap
- International Wall Charger Kit (includes wall charger and USA, Euro, UK, and Australian plug adapters)
- USB Cable (mini to full)
- Full-sized Captured Stylus
- Microsoft® Getting Started CD
- Documentation CD with User Manual
- Premium Screen Protectors
- Connector Protector
- Software CD with PConnectCE
- SC32B Optically Isolated RS-232 Interface and interface cables
- 10873 9-Pin Socket (Female) to 9-Pin Pin (Male) Serial Data Cable
Benefits
- Compatible with most Campbell Scientific data loggers
- Monitors and graphs data on site
- Allows you to control data loggers and transfer data logger programs
- Ultra-rugged, ensuring that your data is safe—even in extreme environments
- Operates in temperatures as cold as -30°C or as hot as 50°C
- Outdoor readable color display with portrait or landscape view
- Long battery life—up to 20 hours
- Completely sealed against dust and water
- Easy-to-grip overmolding
- Large, tactile, backlit keys
Specifications
- Construction
- Magnesium case with scratch-resistant powder coat, and easy-to-grip, impact-absorbing overmold
- Processor
- 520 Mhz, Intel XScale PXA270
- Archer Field PC OS
- Microsoft Windows Mobile 6.1
- Memory
- 128 MB RAM
(256 MB of internal data storage)
- Display Description
- High Visibility 1/4 VGA TFT Color
- Certifications and Standards
- FCC Class B; CE Mark; EN60950; RoHS Compliant; FM Approved Class I, Div 2
- IP Standard
- IP67 waterproof and dustproof
- Shockproof
- Survives multiple drops from 1.5 m (5 ft) onto concrete.
- Environmental Testing Standards
- MIL-STD810F for water, humidity, sand and dust, vibration, altitude, shock, temperature
- Operating Temperature
- -30° to +55°C
(Minimum temperature for Bluetooth communication is -20°C.)
- Storage Temperature
- -30° to +60°C
- Dimensions
- 16.5 x 8.9 x 4.3 cm
(6.5 x 3.5 x 1.7 in.)
- Weight
- 482 g
(17 oz)
Keyboard
- Additional Features
- LED backlit keys
- Available Buttons
- Start, four-way directional, enter applications manager, power, and context menu
(Key functions can be user defined.)
Ports
- Serial
- RS-232C 9-pin sub D connector with 5 Vdc power on DTR pin
- Power Jack
- 12 Vdc @ 800 mA power in
(10 to 18 V unregulated)
Memory Card Slots
- CompactFlash (CF)
- One type-1 or type-2 CF card fits into the CF card slot.
Use only industrial-grade CF cards with a storage capacity of ≤ 2 GB.
- Secure Digital (SD)
- One SD card or Secure Digital Input Output (SDIO) card fits into the SD card slot.
Battery
- Type
- Intelligent 3900 mAhr Li-Ion
- Expected Life
- Operates for more than 20 hours on one charge.
- Time to Recharge
- Charges in 4 to 6 hours.
