Status unavailableConfigurableRunway Light Intensity Monitor (RLIM)
Part of a Runway Visual Range (RVR) system, which is an International Civil Aviation Organization (ICAO) requirement for larger instrumented runways.
Pricing
Configuration
Sign in for option pricing- w/CH150 & 12Ahr BatteryAeroXLight-P1
- w/CH201 & 12Ah BatteryAeroXLight-P2
Select a configuration to add to your quote
- Model:
- AeroX Light
- Item Number:
- AeroXLight
- Warranty:
- 1 year
- Lead time:
- 21 days
Overview
The AeroX™Light is a runway light intensity monitor (RLIM) designed specifically for Campbell Scientific automated weather observing systems (AWOS). The AeroX Light can monitor up to four runways that have two lighting loops per runway. Airports with more runways require additional AeroX Light RLIMs.

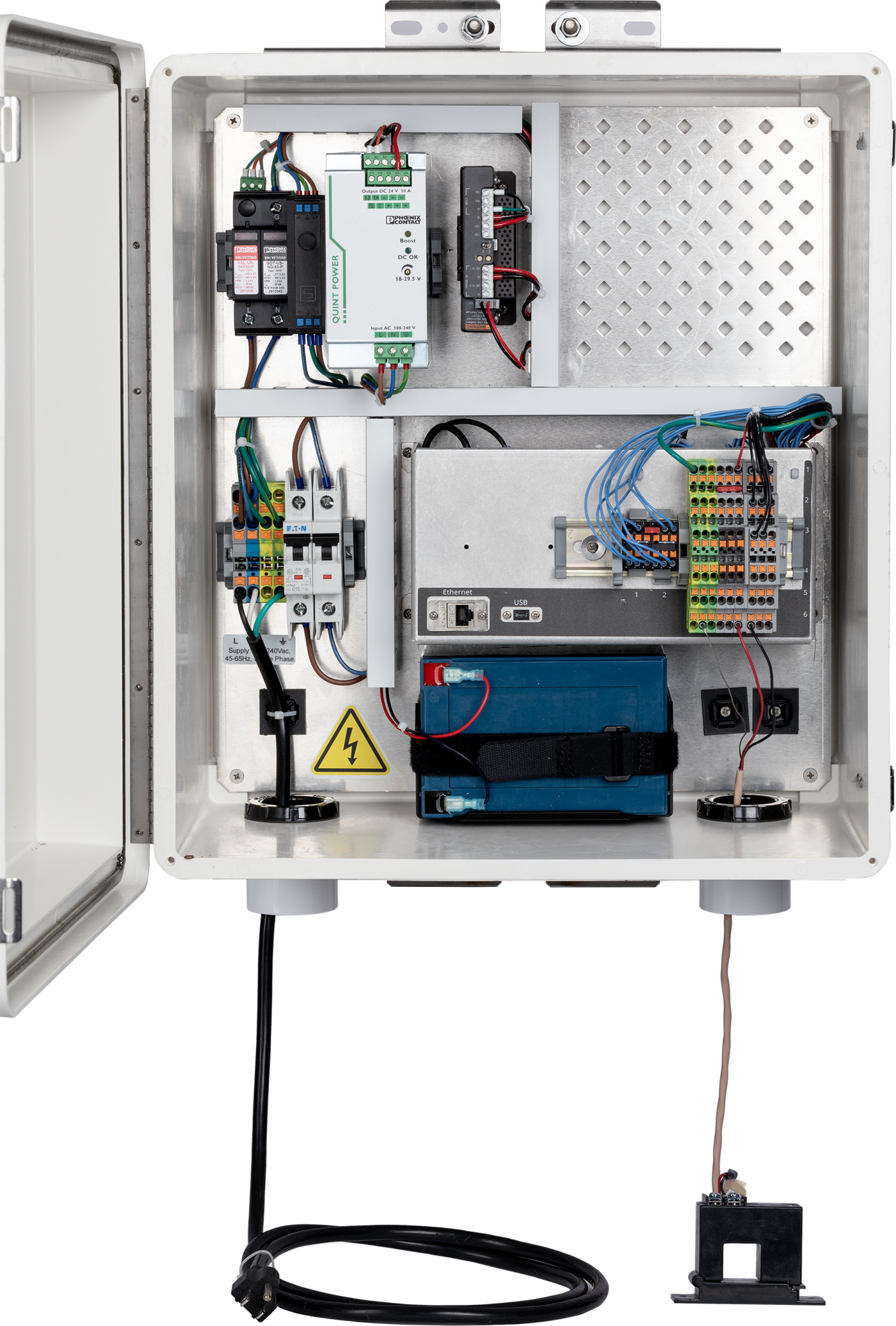

The AeroX Light consists of an enclosure that houses a CR1000X Measurement and Control Datalogger, AC power protection devices, and a power supply. Campbell Scientific offers power options to handle voltages up to 260 Vac and provide battery backup.
Learn more about our CampbellAero™ Automated Weather Observing System (AWOS) Solution and our CampbellAero Software.
Key Advantages
Monitors up to four runways
Technical Description
The AeroX Light determines runway light intensity by measuring the current in the lighting loop using clamp-on current transducers. Each current transducer outputs 4 to 20 mA of current proportional to the amount of current in the lighting loop. Typically, edge and center lighting loops are on each airport runway. The lights can be LED or incandescent. Designed to integrate seamlessly with CampbellAero software, the AeroX Light monitors the current and sends the calibrated current data to the CampbellAero server for interpretation. The CampbellAero server polls the AeroX Light when the data is required.
Benefits
- Capable of monitoring edge and center lighting loops of four runways for a total of eight lighting loops
- Reports battery voltage and errors such as AC power failure, protection circuit fault, and low battery
- Controlled by clamp-on, current-calibration software
- TCP/IP communications with CampbellAero™ server
- Lockable, poly-fiber enclosure
Specifications
- Light Monitored
- LED
(up to 6.6 A)
- Light Monitored
- Incandescent
(up to 20 A)
- AC Input Range
- 85 to 264 Vac
- Short-term Input Voltage
- 300 Vac
- Maximum AC Input Current
- 2 A
- AC Frequency Range
- 45 to 65 Hz
- Inrush Surge Current
- < 15 A
(typical)
- Backup Battery
- Maintains power to RLIM for a minimum of four hours.
- Operating Temperature Range
- -40 to +85°C
- Mean Time Between Failure (MTBF)
- > 500,000 h in accordance with IEC 61709
(SN 29500)
- Transient Protection
- Pluggable, no-fuse, fail-safe surge-suppression device
- Compliance Information
- All components meet UL, CE, and CSA power safety requirements.
- Case Dimensions
- 46 x 51 x 30 cm
(18 x 20 x 12 in.)
- Weight
- 14 kg
(30 lb)
Ships With
(2)- Calibration Sheet Passive Clamp-On Current Sensors Conducted with FAT
- Calibration Sheet Passive Clamp-On Current Sensors Conducted with FAT
