End of lifeConfigurable6-Channel Relay Driver with Manual Override
Pricing
- Model:
- A6REL-12
- Item Number:
- 3760
- Warranty:
- 1 year
- Lead time:
- 14 days
Overview
You can control up to 12 external ac or dc devices using the six internal relays of the A6REL-12. Each relay set can be controlled manually or by a data logger.
Technical Description

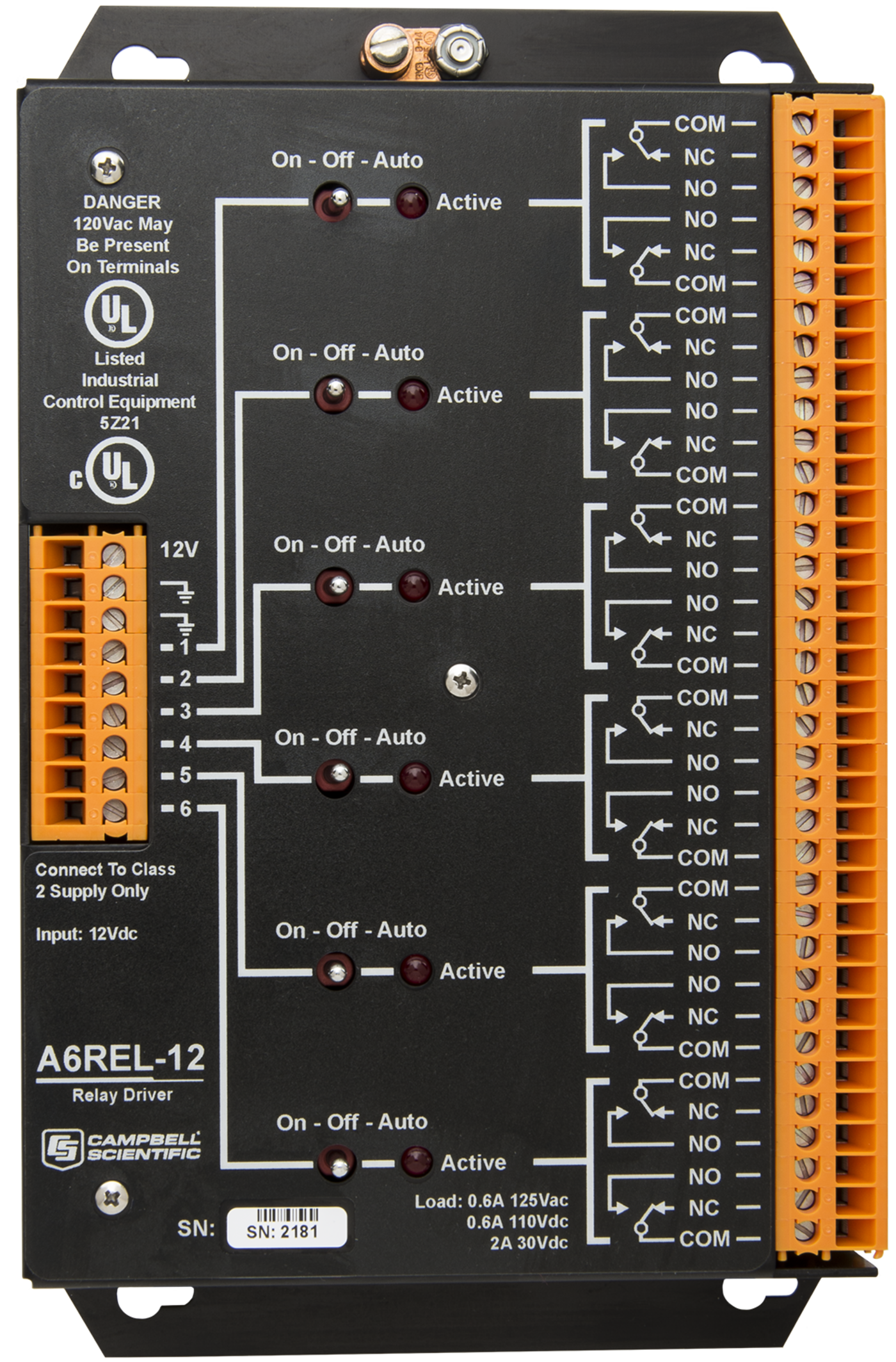

The A6REL-12's internal relays are dual single-pole double-throw. Each of the six relays has a three position toggle switch; "on" and "off" for manual override, and "auto" for data logger control. In the on position, the common and normally open contacts are shorted. In the auto position, the state of a relay is controlled by a data logger control port.
A6REL-12's with serial numbers 1445 and higher are UL-approved.
Benefits
- UL/CUL approved product
Specifications
- Function
- Controls up to 12 external ac or dc devices.
- Number of Channels
- 6
- Operating Voltage
- 12 Vdc nominal
(8.4 to 24 Vdc)
- Current Drain at 12 Vdc
- 6 µA quiescent
- Current Drain at 12 Vdc
- 30 mA per active LED
(switch ON or AUTO active)
- Toggle Switch
- ON/OFF manual override; AUTO for data logger control
- Relays
- dual single pole double throw, break before make
- Contact Material
- Gold-clad silver
- Coil Resistance
- 720 Ω ±10%
- Contact Ratings
- 2 A
(@ 30 Vdc)
- Contact Ratings
- 0.6 A
(@ 125 Vac)
- Release/Actuation Time
- ~3 ms
- Operating Temperature
- -40° to +70°C
- Standards
- Underwriters Laboratories (UL) listed product (E162021)
- Standards
- Canadian Underwriters Laboratories (CUL) listed product (5Z21)
- Dimensions
- 22.4 x 13.9 x 4.1 cm
(8.8 x 5.5 x 1.6 in.) including switches and mounts
- Weight
- 635 g
(1.4 lb)
Expected Life (contact closures)
- Mechanical
- 108
- Electrical
- 5x105
(2 A at 30 Vdc)
- Electrical
- 2x106
(1 A at 30 Vdc )
