A547
Conductivity Interface for CS547(A)
A547
OrderableGSAConductivity Interface for CS547(A)
Overview
A547 Conductivity Interface for CS547(A)** w/1m (3ft) Cable
The A547 is an interface that allows your Campbell Scientific data logger to measure a CS547A water conductivity probe. The A547 Conductivity Interface contains the blocking capacitors and bridge completion resistors necessary for the conductivity measurement. One A547 is required for each CS547A when used directly with the data logger; multiple CS547A probes can be used with an AM16/32B multiplexer and one A547.
Key Advantages
Helps Measure a Water Conductivity Probe
Technical Description

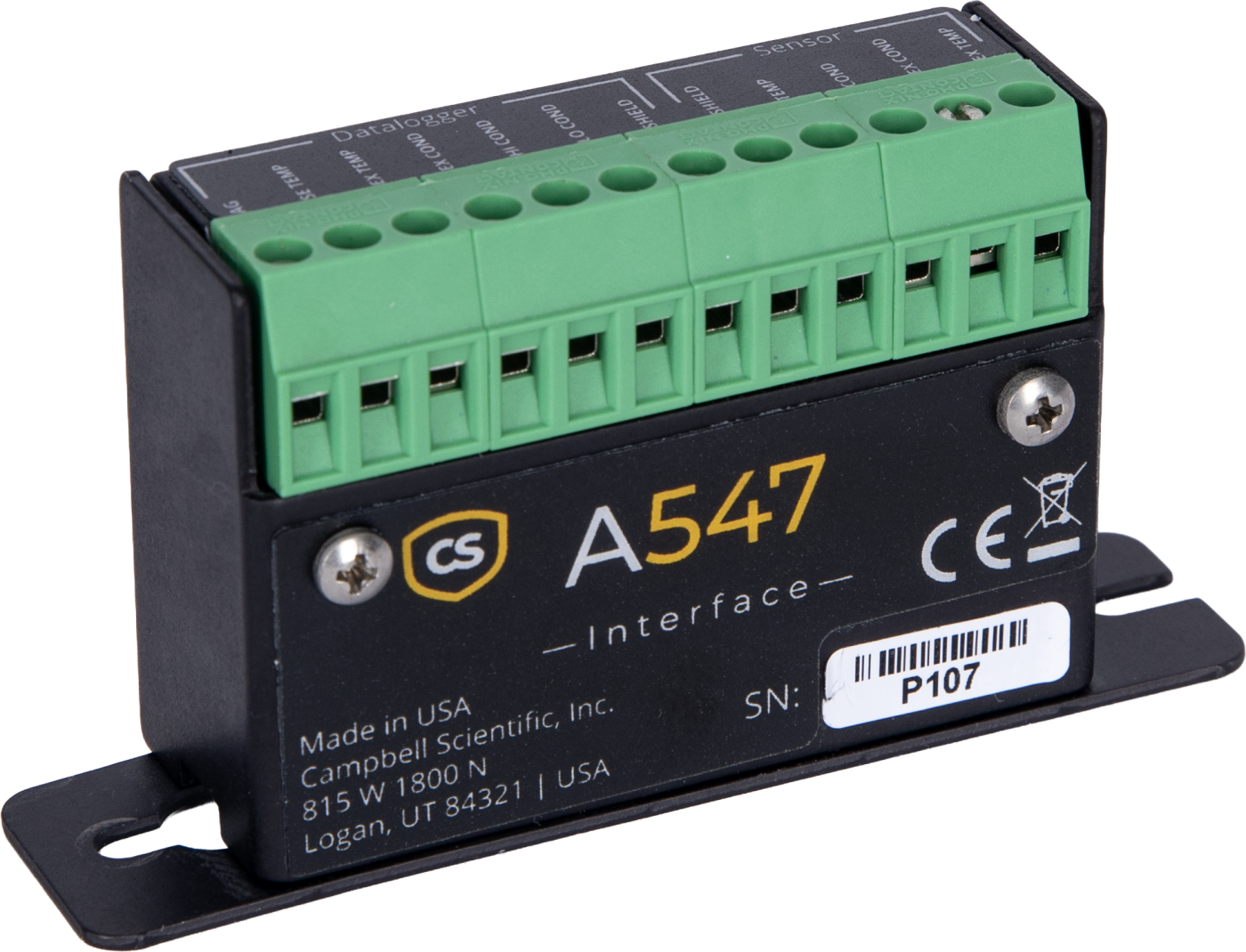

The A547 interface consists of blocking capacitors and bridge completion resistors housed in a metal case. Screw terminals are provided for connecting the data logger, and a water conductivity probe or multiplexer.
Benefits
- Compatible with AM16/32-series multiplexers, allowing measurement of multiple sensors
Specifications
- Operating Temperature
- -15° to +50°C
- Dimensions
- 6.4 x 4.6 x 2.3 cm
(2.5 x 1.8 x 0.9 in.)
- Dimensions
- 8.9 x 4.6 x 2.3 cm
(3.5 x 1.8 x 0.9 in.) with mounts
- Weight
- 45 g
(2 oz)
