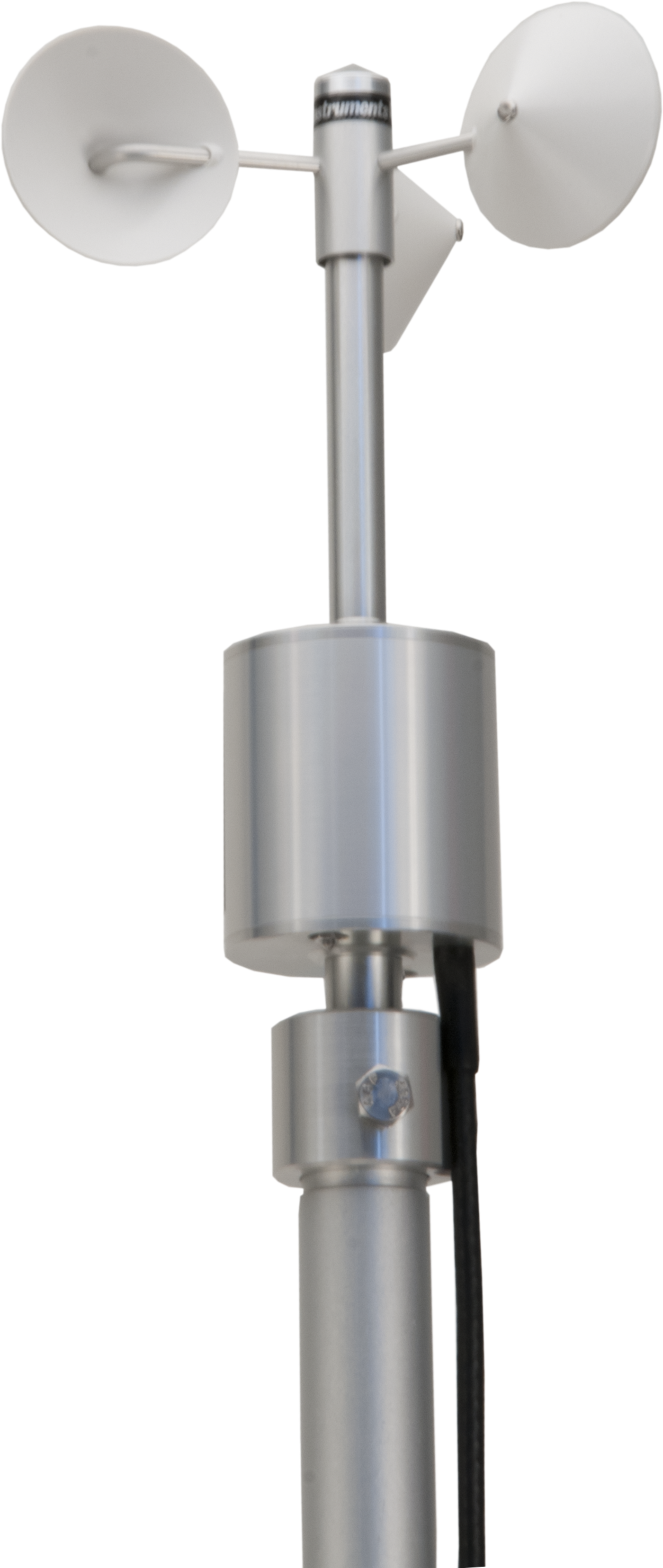

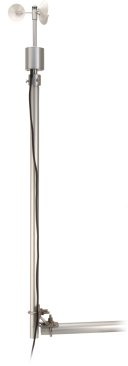

A100LK

Name: A100LK
Brand: Campbell Scientific
SKU: 45019
Availability: InStock

Vector Anemometer

A100LK

OrderableConfigurable

Vector Anemometer

Pricing

Configuration

w/15m per Sensor -PF w/ Ferrules on WiresA100LK-15m
w/45m per Sensor -PF w/ Ferrules on WiresA100LK-45m
w/90m per Sensor -PF w/ Ferrules on WiresA100LK-90m
w/120m per Sensor -PF w/ Ferrules on WiresA100LK-120m

Qty

Select a configuration to add to your quote

Model:: A100LK
Item Number:: 45019
Warranty:: 1 year
Lead time:: 14 days

Overview

Vector Anemometer Sensor (-30 to +70C)

The A100LK is an anemometer suitable for your general meteorology applications and wind-energy surveys. Its low power consumption and wide power-supply range make it popular for remote locations with no access to ac power, and its pulse/frequency signal is ideal for use with Campbell Scientific data loggers. The sensor is constructed from anodized aluminum alloys, stainless steel, and weather-resistant plastics for long life. It is used as part of our WMS100 wind-monitoring system.

Key Advantages

IEC 61400-12 Class 1 Anemometer
Ideal for wind-energy applications

Technical Description

Rotation of the A100LK’s three-cup rotor is electronically converted to pulse output signals proportional to wind speed. The A100LK produces a higher rate of pulses per revolution (up to 13) compared to relay-based sensors, making it suitable for wind surveying where turbulence needs to be estimated.

Benefits

IEC Class 1 performance
Low power consumption
High rate of pulses per revolution produced makes it suitable for wind-surveying applications where turbulence is estimated
Bearings protected from the entry of moisture droplets and dust, resulting in an instrument suitable for permanent exposure to the weather

Specifications

Sensor: 3-cup anemometer
Measurement Description: Wind speed
Signal Type/Output: Electronic pulse
Range: 0 to 77 ms^-1
Threshold: 0.15 ms^-1
(starting speed 0.2 ms^-1, stopping speed 0.1 ms^-1)
Maximum Speed: 77.22 ms^-1
Accuracy: 1% ±0.1 ms^-1
Distance Constant: 2.3 m ±10%
Calibration Data: Supplied for anemometer and rotor at one test speed to an accuracy of ±1% at +15°C.

(12 Vdc supply and an analog output load of 1 MΩ)
Operating Temperature Range: -30° to +70°C
Rotor: 15.2 cm
(6 in.) diameter three-cup rotor
Supply Voltage: 6.5 to 28 Vdc
Current Consumption: 2 mA maximum

1.6 mA typical (no output load)
Power-up Time: 5 s
Surge Protection: Vector PC3L2 anti-surge module fitted
Housing Diameter: 5.5 cm
(2.2 in.)
Height: 19.5 cm
(7.68 in.)
Weight: 490 g
(17.3 oz) including 3 m (10 ft) cable
