4WHB10K
10-kohm, Four-Wire Half-Bridge Terminal Input Module
4WHB10K
Orderable10-kohm, Four-Wire Half-Bridge Terminal Input Module
Overview

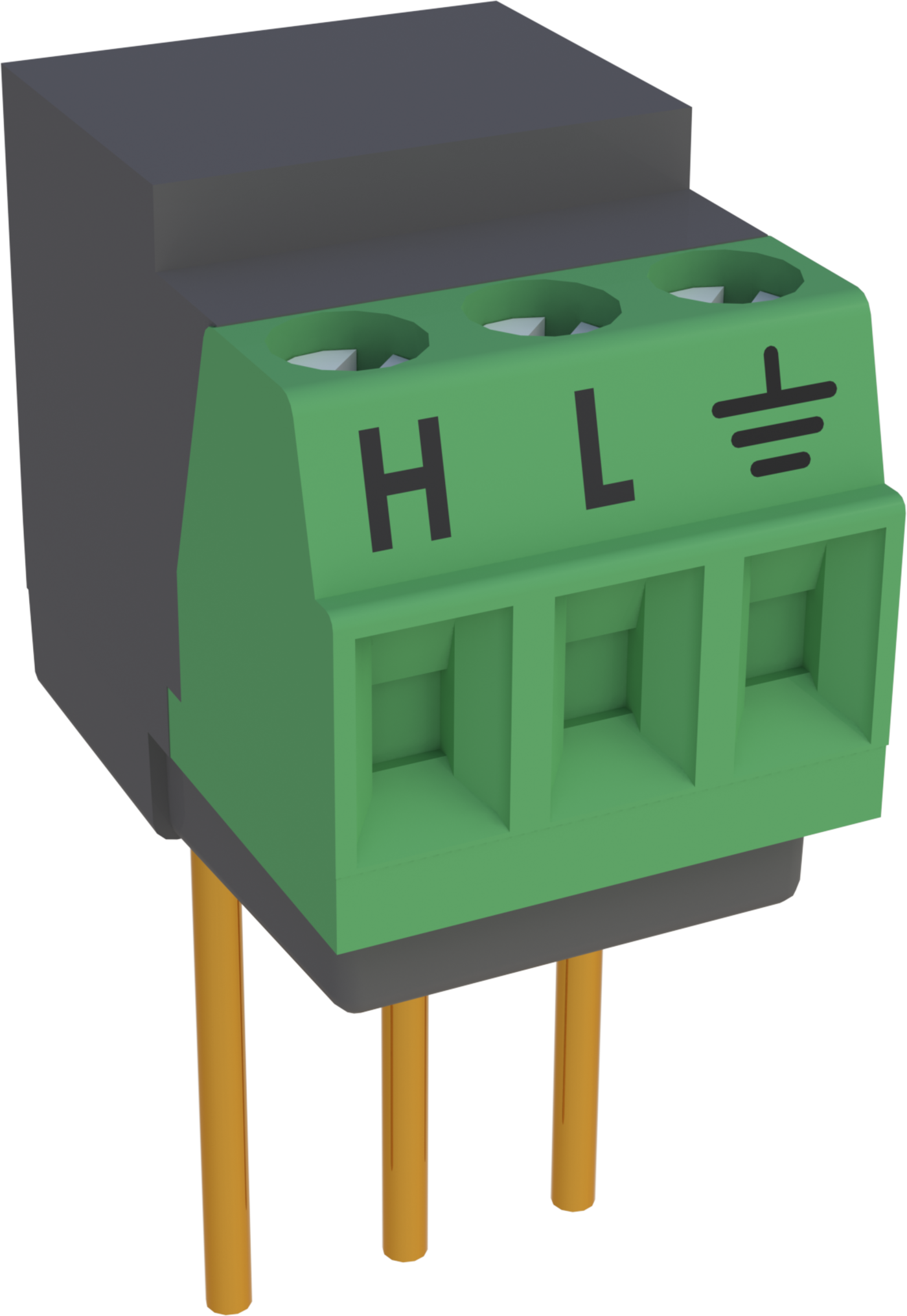

4WHB10K 10K Ohm 4-Wire Half Bridge Terminal Input Module
The 4WHB10K provides the completion resistor required for four-wire half-bridge measurements. This module should be used with sensors that have a 10 kΩ resistance.
Technical Description
4WHB10K Schematic
4WHB10K-to-Sensor Hookup
Benefits
- Makes accurate measurement of 10-kohm, 4-wire half bridges simple
- Easy to install or remove
- Connects directly into data logger input terminals
- Compatible with most Campbell Scientific data loggers
Specifications
- Used With
- 4-wire half bridge measurements with a 10 kΩ resistance
- Resistance
- 10 kΩ
(bulk metal foil)
- Tolerance
- ±0.01%
(@ 25°C)
- Maximum Temperature Coefficient
- ±0.8 ppm/°C
- Power Rating
- 0.25 W
(@ 70°C)
- Dimensions
- 1.5 x 1.5 x 2.7 cm
(0.6 x 0.6 x 1.0 in.) for body with prongs
- Weight
- 6 g
(0.2 oz)
