45005
GPS Antenna Cable
45005
OrderableConfigurableGSAGPS Antenna Cable
Pricing
Configuration
Sign in for option pricing- w/3m (10ft) per Cable45005-3m
- w/10m (33ft) per Cable45005-10m
Select a configuration to add to your quote
- Model:
- 45005
- Item Number:
- 45005
- Warranty:
- 1 year
- Lead time:
- 14 days
Overview
GPS Antenna Cable**

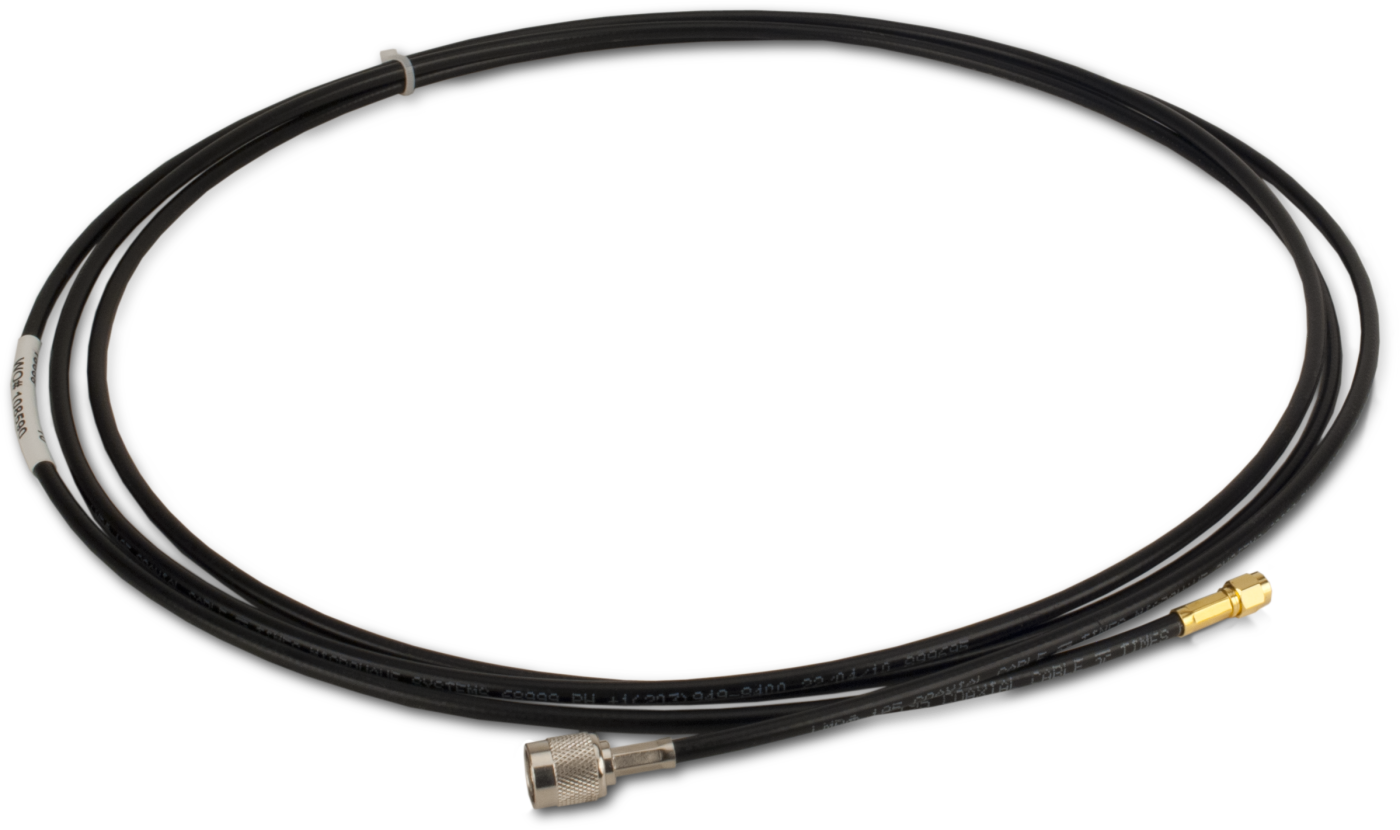

The 45005 is an LMR-195 low-loss coaxial cable fitted with a TNC (plug) connector on one end and an SMA (plug) connector on the other end.
Specifications
- Connector 1
- TNC plug, straight, threaded
- Connector 2
- SMA plug, straight, threaded
- Cable Type
- LMR-195, polyethylene jacketed, black, solid core
- Impedance
- 50 ohm
- Maximum Frequency
- 11 GHz
- Attenuation
- 14.6 db/100 m
(4.4 db/100 ft) @ 150 MHz
- Attenuation
- 25.5 db/100 m
(7.8 db/100 ft) @ 450 MHz
- Attenuation
- 36.5 db/100 m
(11.1 db/100 ft) @ 900 MHz
- Attenuation
- 62.4 db/100 m
(19.0 db/100 ft) @ 2500 MHz
- Suggested Minimum Bend Radius
- 50.8 mm
(2 in.)
- Operating Temperature
- -40° to +85°C
- Length
- Specified at time of order.
- Weight
- 0.03 kg/m
(0.021 lb/ft)
