RS485CBL Adapter for SMP10 or SMP12 Used with RS485CBL, ISP10, or SunSentry
44489
OrderableRS485CBL Adapter for SMP10 or SMP12 Used with RS485CBL, ISP10, or SunSentry
Overview

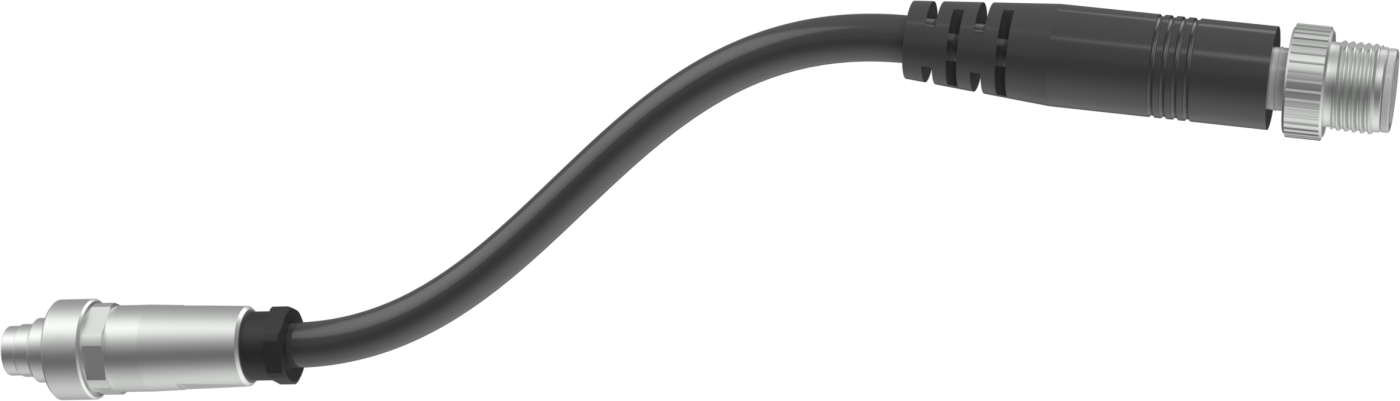

The 44489 adapter enables you to integrate a Kipp and Zonen sensor—such as the SMP10 Radiation Sensor with Digital RS-485 Output or SMP12—into a daisy-chain configuration on a SunSentry Solar Operational Meteorological Monitoring Station. The adapter allows the sensor to connect to the SunSentry system using a single trunk-line cable by remapping the pin assignments to match the RS485CBL 24 AWG RS-485 Cable with M12 Five-Pin Connector. The 44489 also routes the cable shield through the connector’s coupling nut, improving surge protection and reducing signal noise for more reliable operation.
Technical Description
Pinout Description for SMP10 or SMP12 Adapter
| M12 (RS485CBL end) | Function | M9 (SMP end) |
|---|---|---|
| 1 | 24 V | 7 |
| 2 | RS-485 B/B+ | 4 |
| 3 | Signal Ground | 2 |
| 4 | Ground | 8 |
| 5 | RS-485 A/A- | 5 |
| Shield connected to coupling nut | Shield connected to coupling nut |
Specifications
- Connector Type (RS485CBL end)
- M12, five-pin, A-coded connector
- Connector Type (SMP10/12 end)
- M9, eight-pin connector
- Ingress Protection
- IP67
- Dimensions
- 20.2 x 1.78 x 1.78 cm
(8.0 x 0.7 x 0.7 in.)
- Weight
- 45.36 g
(0.1 lb)
