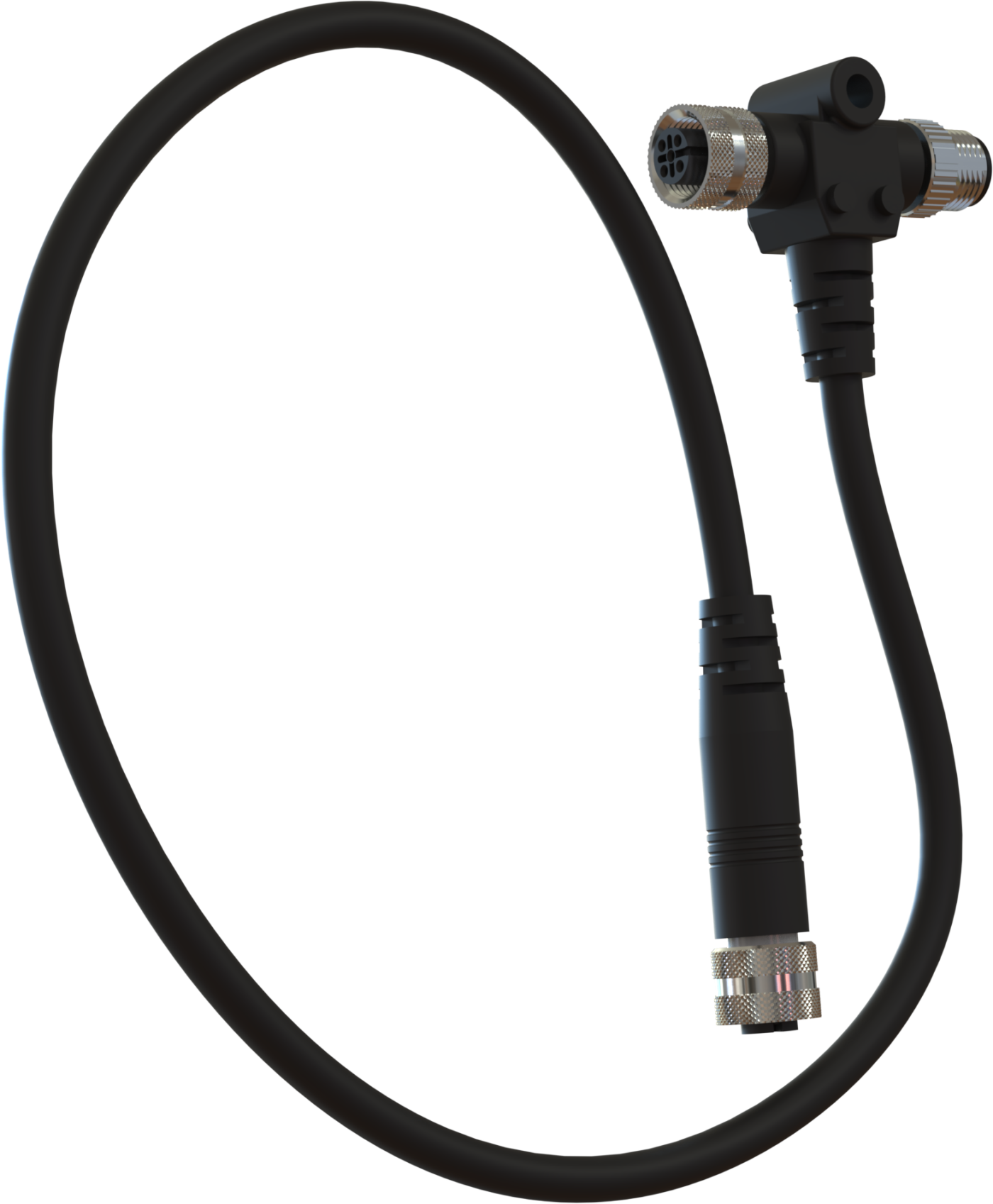

RS485CBL M12 Five-Pin Shielded Tee Coupler for Daisy-Chaining
44370
OrderableRS485CBL M12 Five-Pin Shielded Tee Coupler for Daisy-Chaining
Overview
ACC RS485CBL M12 Tee Coupler 5-Pin Male to Female Shielded w/.5m Cable Female
The 44370 tee coupler is used to wire split standard five-pin A-coded connections. It is commonly used to daisy-chain multiple digital Modbus sensors, such as the CS241DM and CS241DM G2 back-of-module temperature sensors, enabling multiple sensor connections on a single trunk-line cable.
Technical Description
Pinout Description for Tee Coupler Use
in the SunSentry System
| Trunk Line T Pins | Common Function | Sensor Pins |
|---|---|---|
| 1 | 24 V | 1 |
| 2 | RS-485 B/B+ | 2 |
| 3 | Signal Ground | 3 |
| 4 | Ground | 4 |
| 5 | RS-485 A/A- | 5 |
Specifications
- Tee Coupler Connector Type
- Plug to socket
- Cable Connector Type
- Socket
- Cable Length
- 0.5 m
(1.64 ft)
- Dimension
- 7.62 x 2.03 x 50.8 cm
(3.0 x 0.8 x 20.0 in.)
- Weight
- 90.72 g
(0.2 lb)
