RS485CBL Adapter for SunSentry Used with CS241DM G2 Temperature Sensor
44340
OrderableRS485CBL Adapter for SunSentry Used with CS241DM G2 Temperature Sensor
Overview

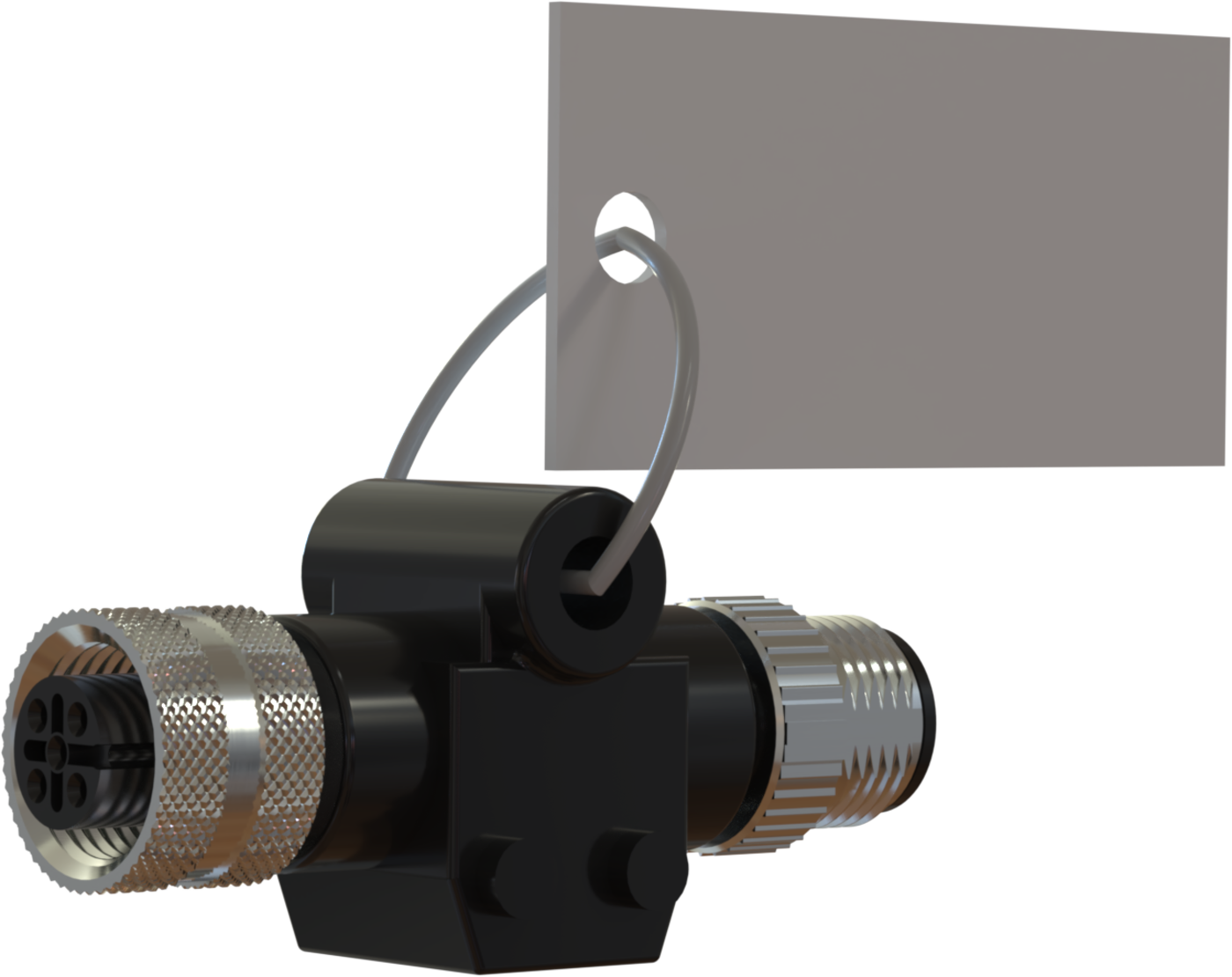

ACC SunSentry Pin Adapter CS241DM to RS485CBL 5-pin M12, Black
The 44340 adapter allows a CS241DM G2 temperature sensor to be a direct replacement for the CS241DM temperature sensor. The pin assignments changed in the CS241DM G2 version, so the 44340 adapter converts the new pin assignment to the older version pin assignment, enabling the CS241DM G2 to use the same cable as the CS241DM.
Note: Do not use the 44340 adapter when installing the CS241DM G2 temperature sensor with the RS485CBL 24 AWG RS-485 Cable with M12 Five-Pin Connector.
Technical Description
Pinout Description for CS241DM G2 Adapter
| CS241DM G2 | Function | Existing Cable |
|---|---|---|
| 1 | 24 V | 1 |
| 2 | RS-485 B/B+ | 2 |
| 3 | Signal Ground | 5 |
| 4 | Ground | 4 |
| 5 | RS-485 A/A- | 3 |
Specifications
- Connector Type
- M12, five-pin connector
- Color
- Black
- Dimensions
- 5.72 x 2.22 x 2.54 cm
(2.25 x 0.875 x 1.0 in.)
- Weight
- 36.29 g
(0.08 lb)
