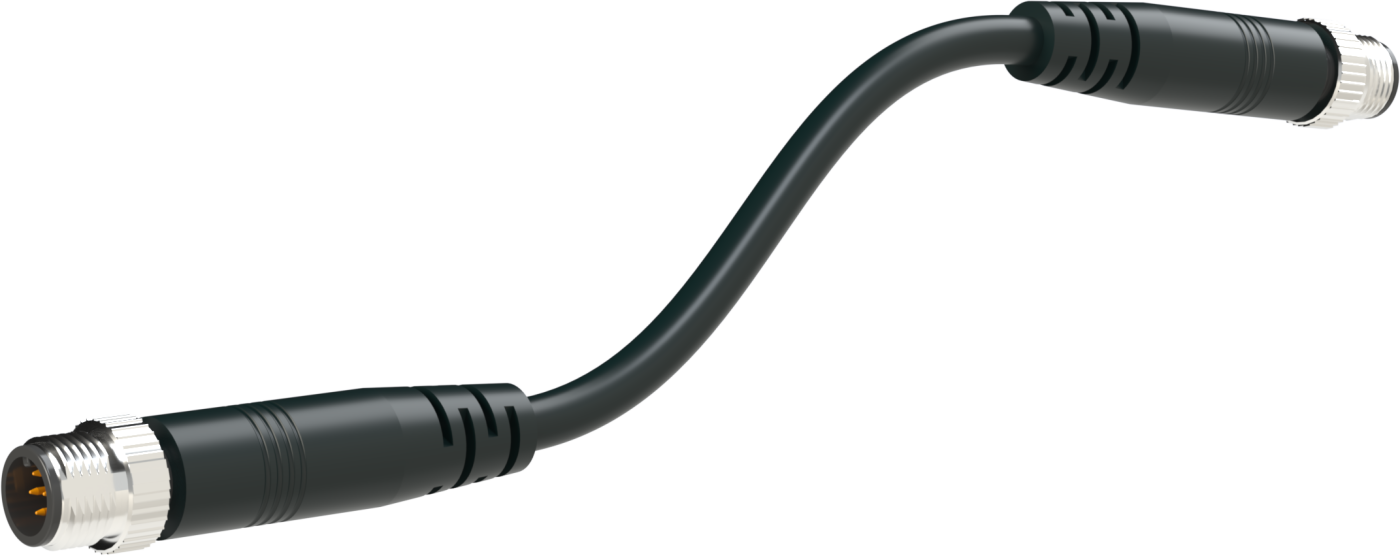

RS485CBL Adapter for SunSentry Used with Atonometrics Sensor (RC22 PV Reference Cell)
44339
OrderableRS485CBL Adapter for SunSentry Used with Atonometrics Sensor (RC22 PV Reference Cell)
Overview
SunSentry Pin Adapter Atonometrics to RS485CBL 5-pin M12
The 44339 adapter enables you to integrate an Atonometrics sensor—such as the RC22 PV Reference Cell—into a daisy-chain configuration on a SunSentry Solar Operational Meteorological Monitoring Station. The adapter allows the sensor to connect to the SunSentry system using a single trunk-line cable by remapping the pin assignments to match the RS485CBL 24 AWG RS-485 Cable with M12 Five-Pin Connector. The 44339 also routes the cable shield through the connector's coupling nut, improving surge protection and reducing signal noise for more reliable operation.
Technical Description
Pinout Description for Atonometrics Adapter
| Trunk Line | Function | Sensor Pinout |
|---|---|---|
| 1 | 24 V | 1 |
| 2 | RS-485 B/B+ | 5 |
| 3 | Signal Ground | 3 |
| 4 | Ground | 4 |
| 5 | RS-485 A/A- | 2 |
Specifications
- Connector Type
- M12, five-pin, A-coded connector
- Dimensions
- 20.32 x 1.78 x 1.78 cm
(8.0 x 0.7 x 0.7 in.)
- Weight
- 45.36 g
(0.1 lb)
