Offset Torque Tube Mounting Kit for DustVue
43591
OrderableOffset Torque Tube Mounting Kit for DustVue
Overview

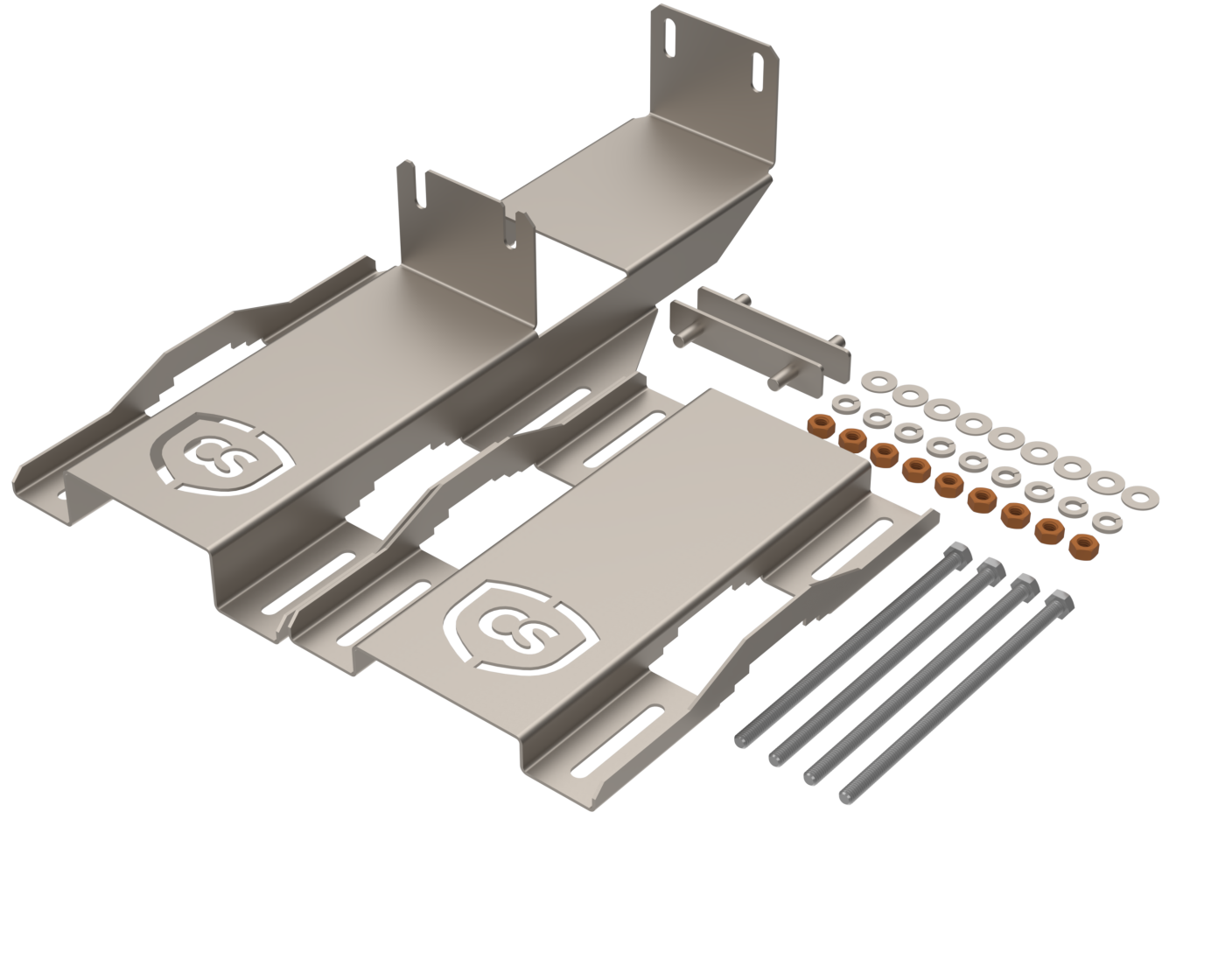

ACC DustVue Offset Torque Tube Mounting Kit
The 43591 kit is used to mount a DustVue™10 or 20 sensor to a single-axis tracker torque tube. With the kit, you can mount your DustVue in the plane of array with your existing solar panels. The 43591 kit allows the DustVue to be offset from the torque tube for downward-facing soiling measurement clearance. There is some course adjustability to level the DustVue or to adjust the unit as close as possible to the plane of the solar modules.
Specifications
- Material
- 304SS main tube clamps
- Material
- Powder-coated aluminum DustVue stud plate
- Hardware
- 5/16-18 x 7 in. 304SS fully threaded screw with silicone bronze nuts
- Accommodated Square Torque Tube Size Range
- 11.4 cm (4.5 in.) to 15.9 cm (6.25 in.) with included hardware; up to 23 cm (9 in.) with longer, user-supplied bolts
- Accommodated Round Torque Tube Size Range (outer diameter)
- 11.4 cm (4.5 in.) to 18.4 cm (7.25 in.) with included hardware; up to 23 cm (9 in.) with longer, user-supplied bolts
- Main Bracket Dimensions
- 19.3 x 46.2 x 10.2 cm
(7.6 x 18.2 x 4.0 in.)
- Assembly Dimensions
- 19.3 x 46.2 x 14 cm
(7.6 x 18.2 x 5.5 in.)
- Weight
- 3.17 kg
(7 lb)
