41003-5A
41003-5A
Orderable10-Plate Solar Radiation Shield with Band Clamp
Overview

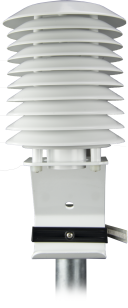

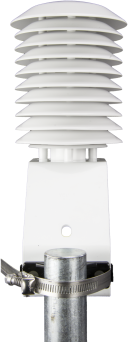

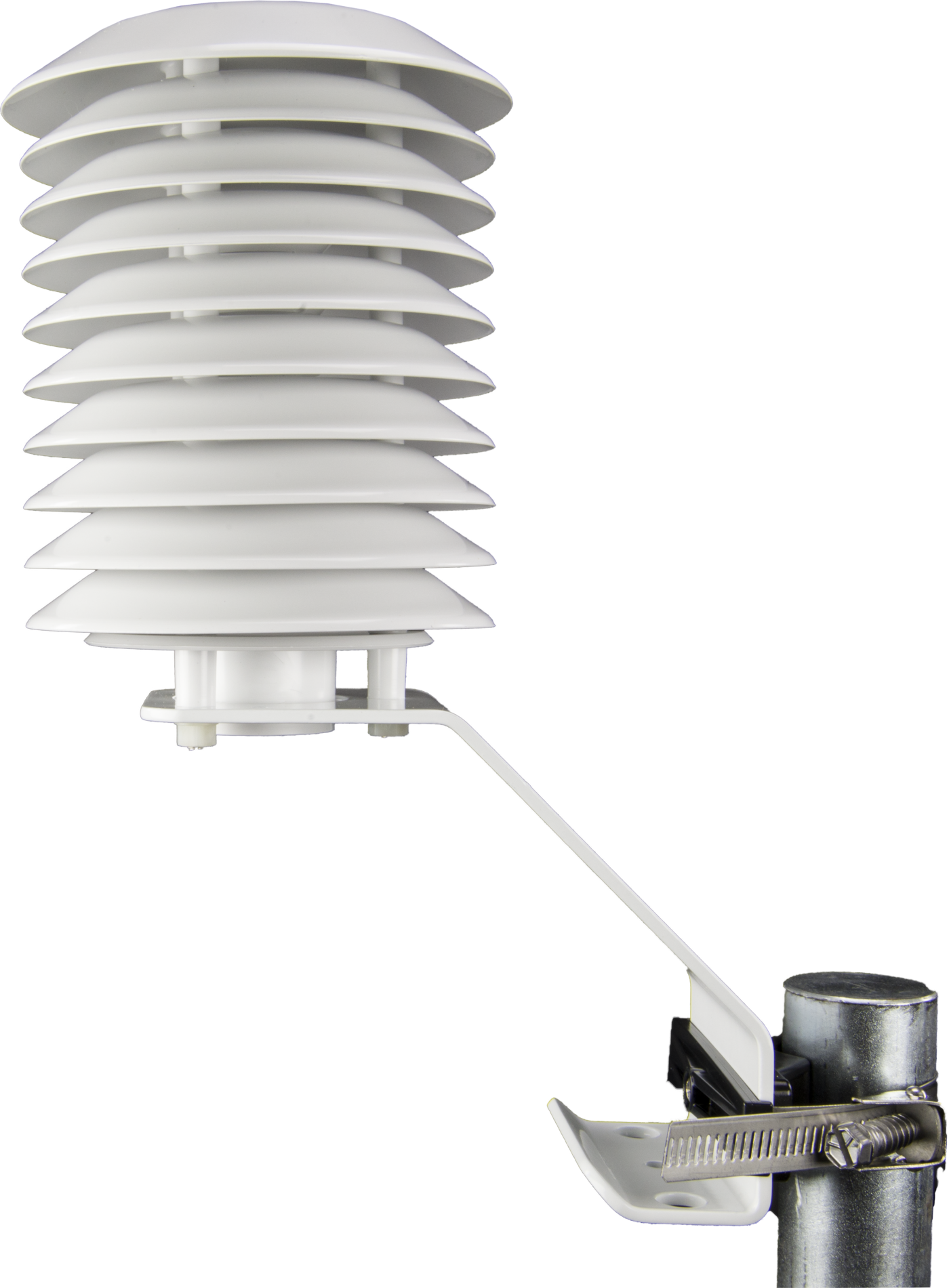

The 41003-5A, manufactured by R. M. Young, is a naturally aspirated 10-plate radiation shield. Its louvered construction allows air to pass freely through the shield, keeping the probe at or near ambient temperature. The shield's white color reflects solar radiation.
Technical Description
The 41003-5A 10-Plate Gill Radiation Shield is typically used with an LW110 to house its HC2S3 Temperature and RH probe; the hex plug required to mount the HC2S3 in the shield is shipped with the sensor.
The 41003-5A can also house a 43347, 107, 108, 109, or HMP60 probe. The HMP45C and several other retired sensors are also compatible. Refer to the Compatibility tab for the hardware required to mount the above sensors in the shield.
Benefits
- Naturally shades and protects the sensor
Specifications
- Construction
- UV-stabilized white thermoplastic plates, aluminum mounting bracket
- Plate Diameter
- 11.9 cm
(4.7 in.)
- Height
- 20.3 cm
(8.0 in.)
- Weight
- 590 g
(1.3 lb)
Accessories
(6)27731
Solar Radiation Shield Hex Plug for for Mounting the HC2S3 inside the 41003-5
Orderable27251
Hex Plug for 43347
Orderable41322
10-Plate Shield Adapter for Use with 107, 108, 109, or HMP60
Orderable6637
Hex Adapter Plug
Orderable41381
10-Plate Shield Extension Tube for Use with HMP60 or CS500
End of life15823
Hex Plug for HMP45C or EE181
Orderable
