39349
T Coupler M12 Male/M12 Female Straight
39349
RetiredT Coupler M12 Male/M12 Female Straight
Pricing
- Model:
- 39349
- Item Number:
- 39349
- Lead time:
- 21 days
Overview
CON CIR M12 Coupler Male to Female 2X Straight

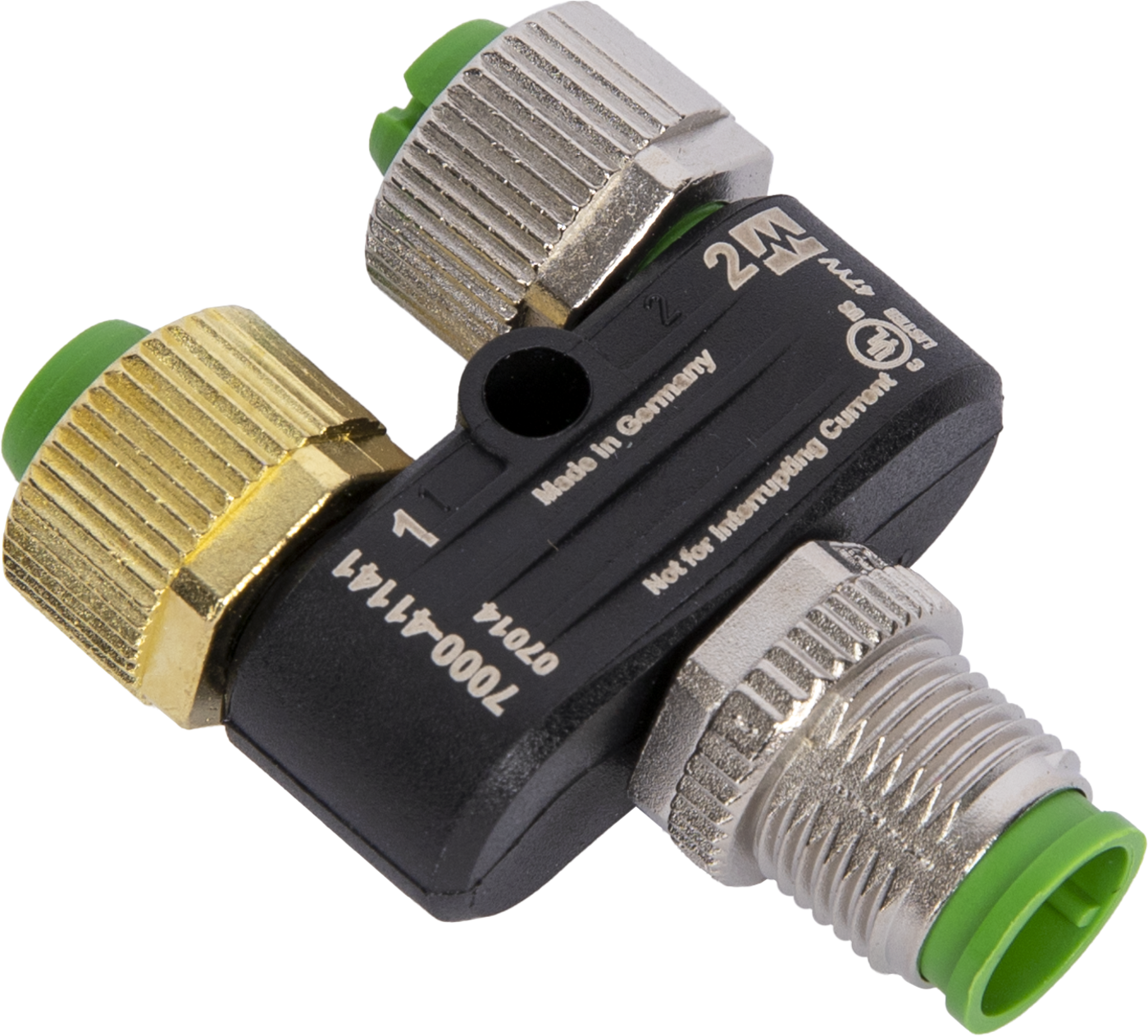

The 39349, manufactured by Murr Elektronik, is a molded T-coupler for wire splitting of standard five-pole M12 connections. It is commonly used to daisy chain multiple digital Modbus CS241DM back-of-module temperature sensors, enabling multiple CS241DM connections on a single homerun cable. The T-coupler trunk connection is a single M12 male. The two branch connections are female.
Specifications
- Nominal Voltage
- 60 V AC/DC
- Maximum Current
- 4 A
- Operating Temperature Range
- -25° to +85°C
13° to 185°F
- Environmental Protection
- IP67
- Housing Material
- Polyurethane
(PUR)
- Screw Description
- Zinc diecast
- Screw Torque
- M12x1 0.6 Nm
- Connection
- Pluggable, screw-locking
- Dimensions
- 11.4 x 5.1 x 2.5 cm
(4.5 x 2.0 x 1.0 in.)
- Weight
- 27.21 g
(0.06 lb)
