39088
12 in. DIN Rail Mounting Kit
39088
Orderable12 in. DIN Rail Mounting Kit
Overview
ENC ACC Din Rail Mounting Kit, 0.9m (1ft) Long

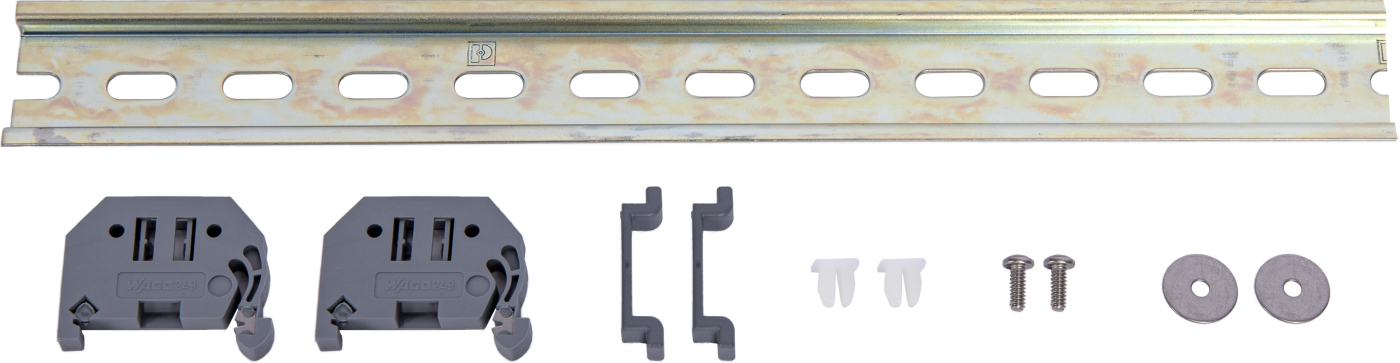

The 39088 can facilitate wiring when many wires need to be connected to one terminal. This kit contains one 12-inch DIN rail mounting bracket, two 505 screws, two 6044 grommets, and two 15908 DIN Rail Stoppers. A complete configuration would also include terminal connectors, end plates, and jumpers. The stoppers, terminal connectors, and end plates are mounted onto the DIN rail bracket. The DIN rail bracket is mounted to an enclosure backplate using the kit’s screws and grommets.
Specifications
- Hardware Type
- DIN rail mounting kit
- Why/When to Use
- Allows multiple DIN rail mountable products to be secured to the enclosure backplate.
- Mounting Bracket Length
- 30.5 cm
(12.0 in.)
- Mounting Space to Hold Parts
- 27.9 cm
(11.0 in.) Can connect up to 33 items depending on width of items.
- Dimensions
- 30.5 x 3.8 x 0.8 cm
(12.0 x 1.5 x 0.3 in.)
- Weight
- 117.93 g
(0.26 lb)
